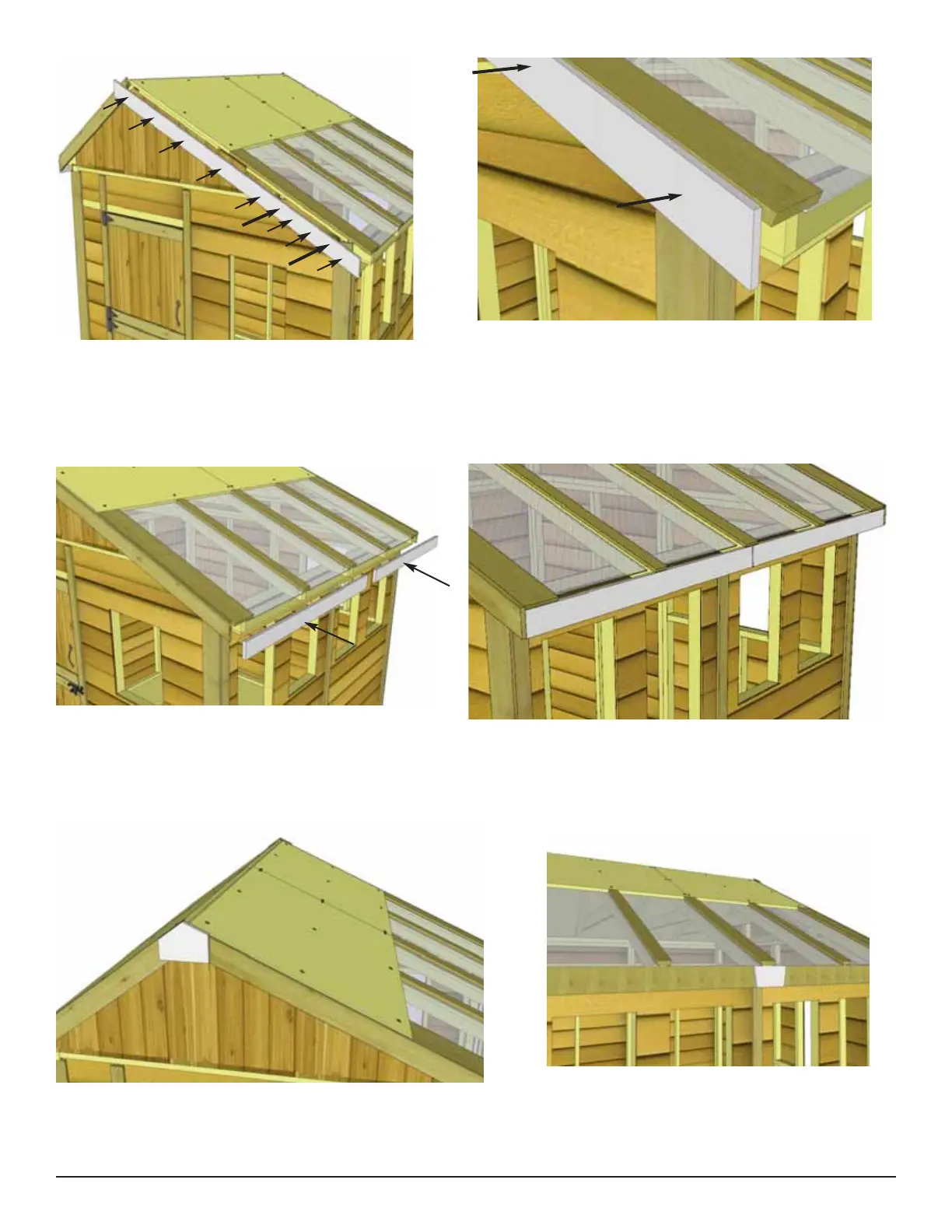

78. Attach remaining Side Facia to roof rafter ends as per Step 76.
79. Attach Facia/Trim Detail Plates and Pentagon Detail Plates to cover seams where facia trim
pieces come together. Secure each with 4 - 1 1/2” finishing nails.
77. Attach Long Front and Rear Facia (3/4” x 3 1/2” x 79 1/4” angle cut on ends) to roof plywood
ends and Outside Ridge Cap edge with both 1 1/2” finishing nails and 1 1/4” screws. Use 2 screws
where Outside Ridge Cap and Facia meet. Line Facia up so it is even with rafter ends.
Outside Ridge Cap
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com
Page 31
