DISASSEMBLING/ASSEMBLING PROCEDURE CV-160
5-2

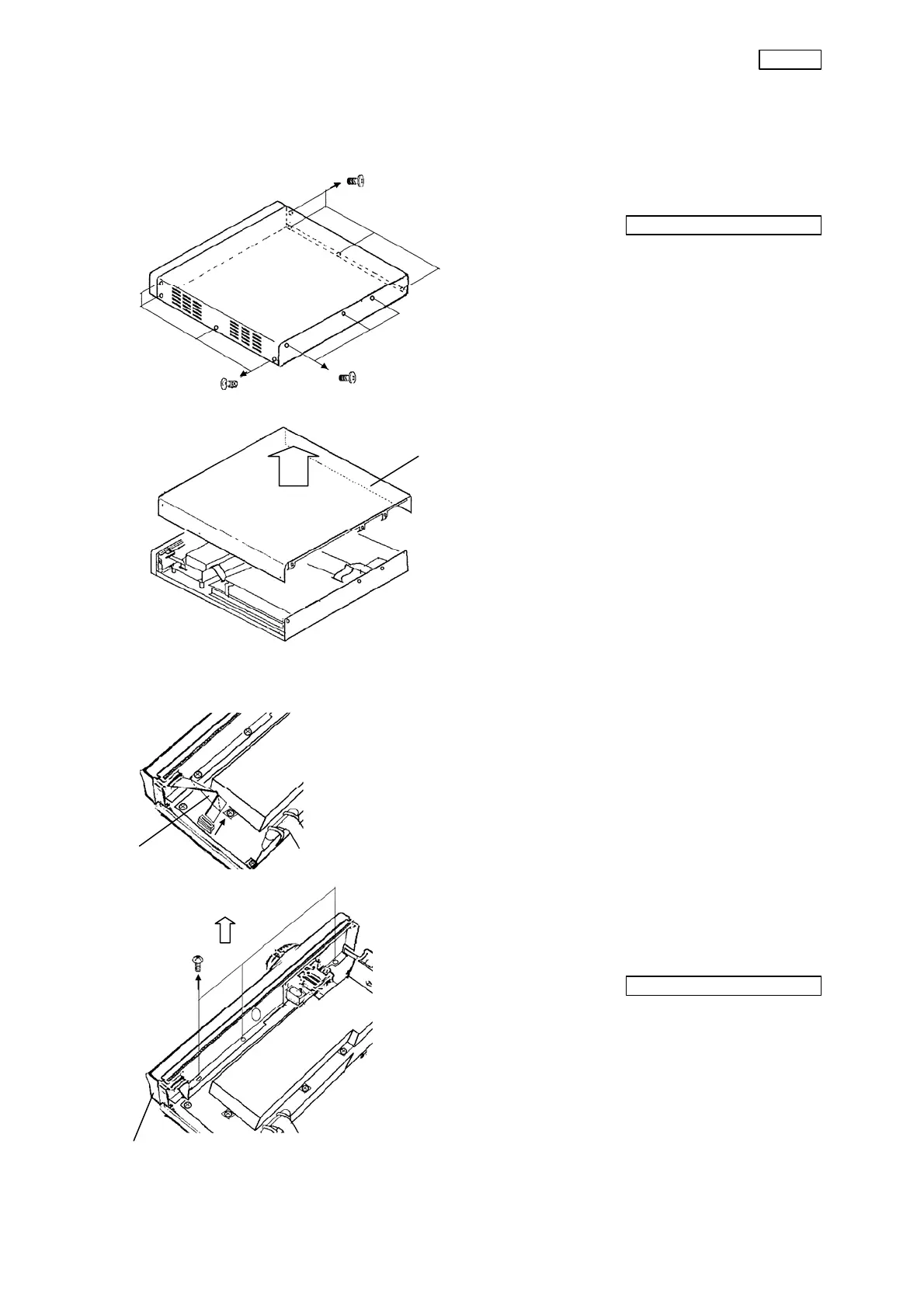

3. Disassembling Procedure
3-1. Top cover
(1) Remove the eleven screws (HCBK3x6SA)
that secure the top cover.
Phillips screwdriver No. 2
(2) Remove the top cover from the main unit.
3-2. Front panel unit
(1) Remove the flexible cord from the
connector as shown on the left.
(2) Remove the three screws (CCUK3x4SZ)
that secure the front panel unit.
Phillips screwdriver No. 2
(3) Remove the front panel unit from the
main unit.
Flexible cord
Front panel unit
Top cover
