DISASSEMBLING/ASSEMBLING PROCEDURE CV-160
5-3

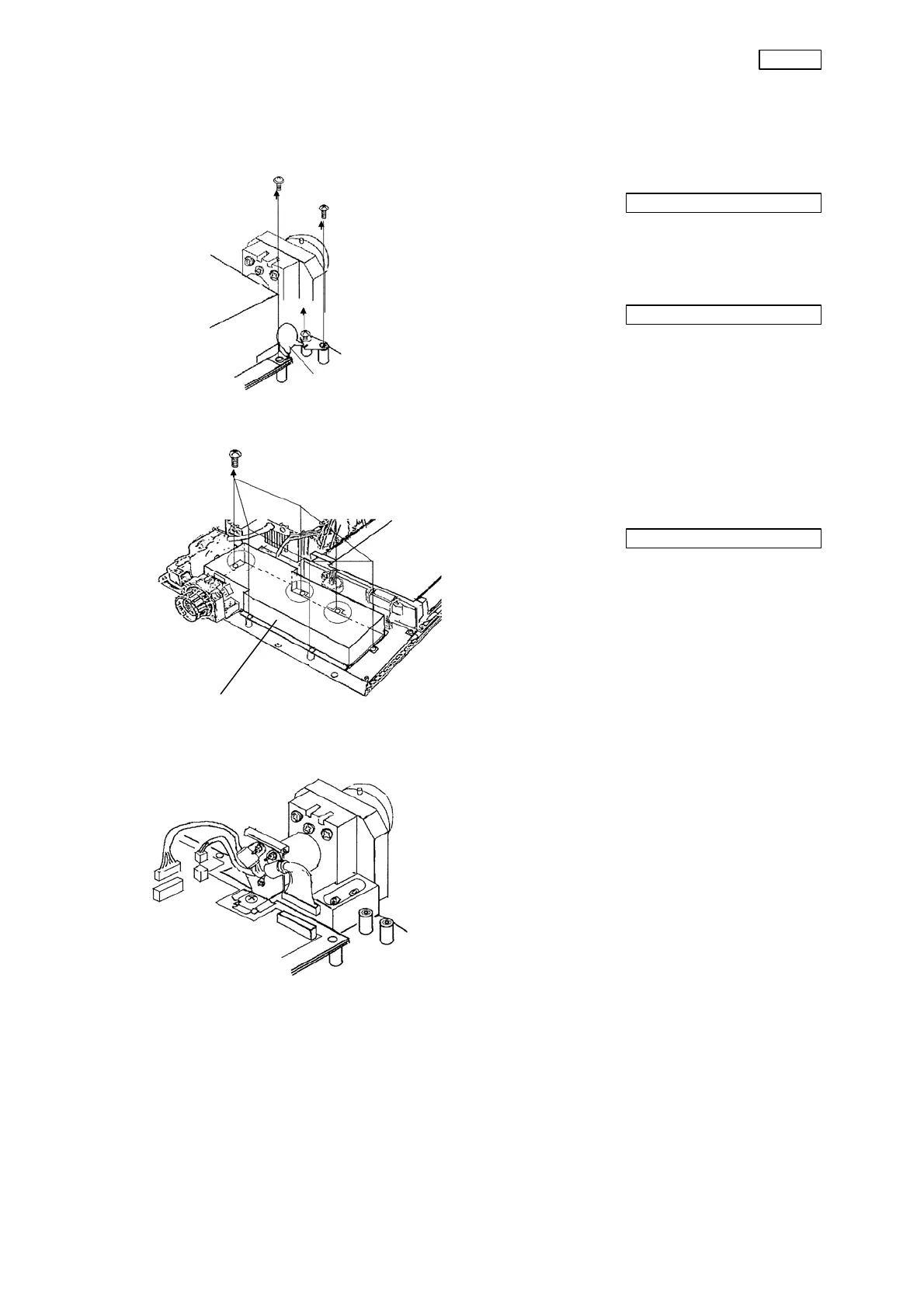

3-3. Connector block unit
(1) Remove the screw (① CCUK3x6SZ) that
secures the capacitor unit.
Phillips screwdriver No. 2
(2) Remove the two screws (②/③ CBK3x6SA)
that secure the capacitor unit.
Phillips screwdriver No. 2
(3) Remove the capacitor unit.
※ Tighten the screws ① to ③
completely when assembling the unit.
(4) Remove the six screws (CCUK3x6SZ) that
secure the shield case.
Phillips screwdriver No. 2
(5) Remove the shield case from the main
unit.
(6) Remove the connector as shown on the
left.
※ When assembling the unit, check that
the connector is securely inserted.
Capacitor unit
①
②
③
Shield case
J202
J203
J201
