DISASSEMBLING/ASSEMBLING PROCEDURE CV-160
5-10
4. Assembling Procedure
Reverse the disassembling procedure.
Pay attention to the direction of the parts when assembling the following part.
4-1. Light control cable

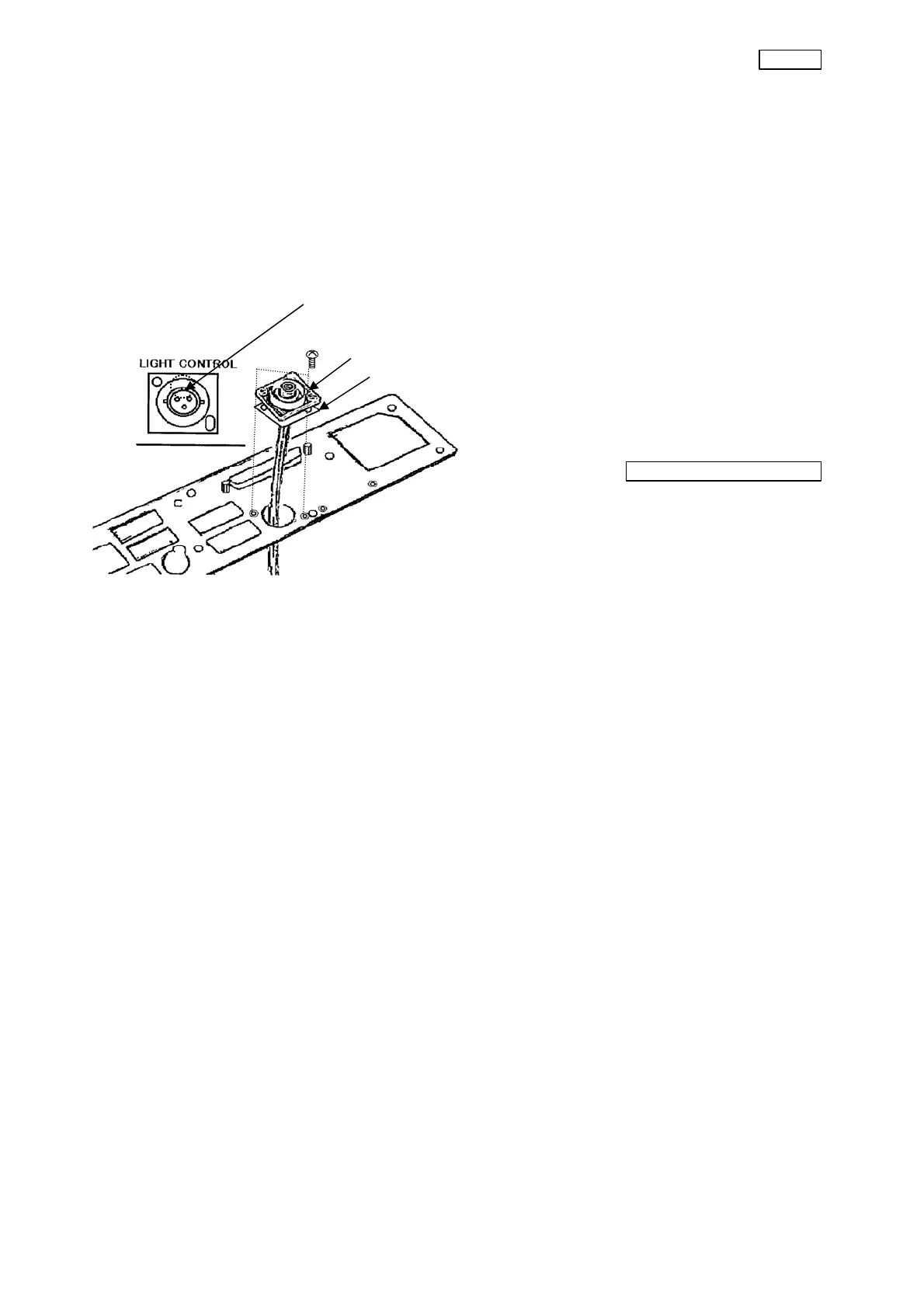

(1) Pass the light control cable through the
hole marked “LIGHT CONTROL”.
※ Pay attention to the direction.
※ Take care that the lag plate A does not
project from the light control base.
(2) Secure the light control cable with two
screws (CBK3x6SA).
Phillips screwdriver No. 2
Assemble with the inside
pin set up.
Light control base
Lag plate A
To Next Page
