DISASSEMBLING/ASSEMBLING PROCEDURE CV-160
5-9

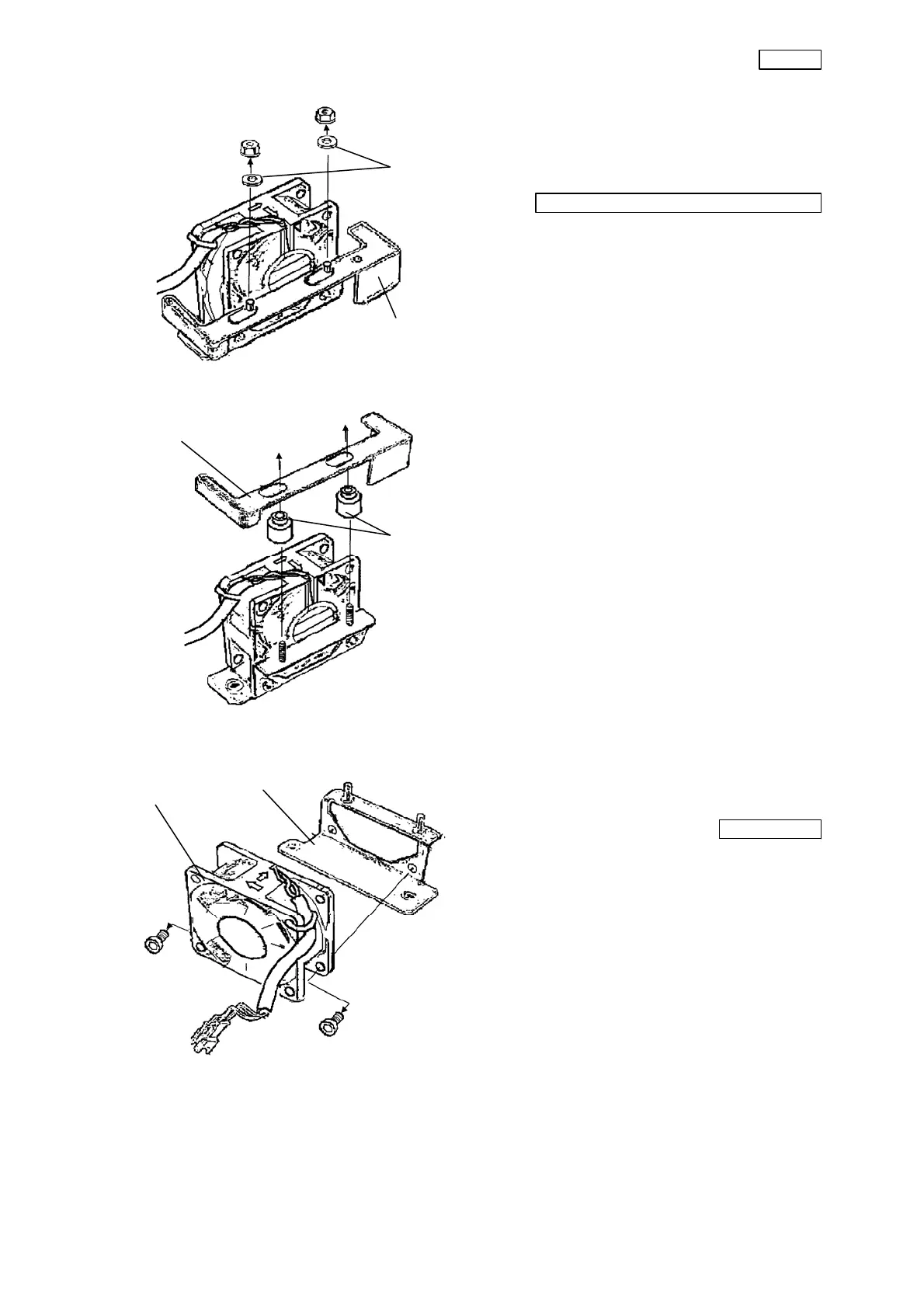

(3) Remove the two nuts (CCUK3x6SZ) and
two switch washers that secure the switch
plate.
Box screwdriver (opposite side 5.5mm)
※ Precaution on assembling
Assemble so that the switch plate moves
smooth.
(4) Remove the switch plate and the switch
collar.
(5) Remove the two screws (ABSB3x8SZ) that
secure the fan unit.
L-wrench set
(6) Remove the fan unit from the fan BK.
Switch plate
Switch washer
Switch plate
Switch collar
Fan BK
Fan unit
To Next Page
