Olympus FC-WR - Names of Parts; Dial;Arrow pad; Display (control panel)

19
EN

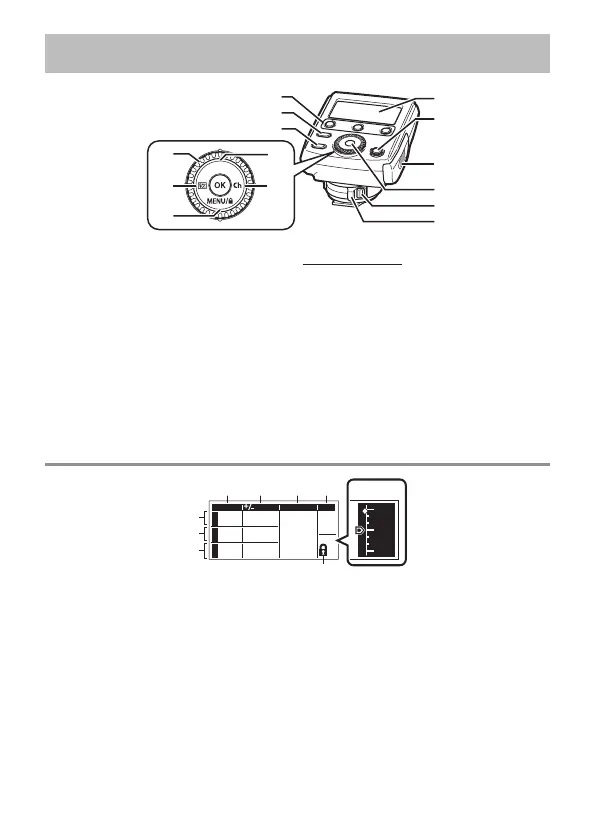

Names of Parts
1
a
0
b
c
d
2
3
4
7
8
9
55
6
1 Group buttons (A/B/C) ..................P. 24
2 MODE button ................................P. 25
3 TEST button ..................................P. 24
4 Control panel ................................P. 19
5 ON/OFF button .............................P. 22
6 Battery compartment cover ...........P. 20
7 OK button ......................................P. 24
8 Latch release button ..................... P. 21
9 Latch ............................................. P. 21
Dial/Arrow pad
0 Dial .......................................... P. 24, 27
a a (fl ash compensation/fl ash intensity)/
H button .................................P. 25, 26
b MENU/b (key locking)/G button
......................................................P. 27
c F button
d Ch (communication channel)/
I button .......................................P. 24
Display (control panel) Display (control panel)
421 3
9
MODE
A
B
C
0.0
0.0
1/8
TTL
TTL
M
FPRATIO CH
1
Off
1/8
1/4
1/2
6
8
7
5
1 MODE (fl ash control mode)
2 +/- (fl ash compensation)/
RATIO (fl ash intensity)
3 FP (Super FP) fl ash
4 CH (communication channel)
5 RATIO (fl ash intensity)
6 Group A setting
7 Group B setting
8 Group C setting
9 d (key lock mode)
