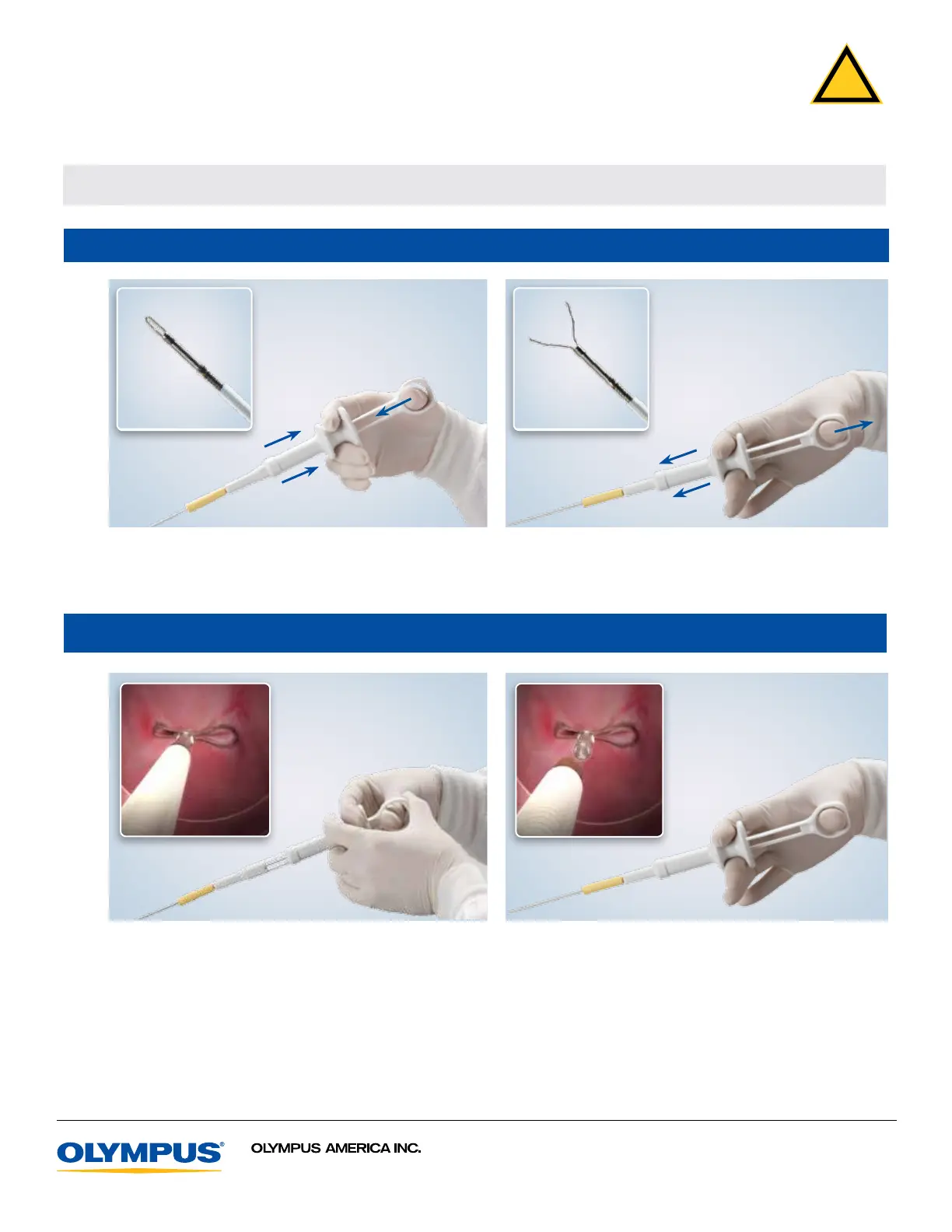

To close: Pull the slider toward the thumb ring until you feel
resistance and see on the endoscopic view that the clip arms
are closed.
Deploying the clip at the target site
4
Operation and functionality
3
To reopen: Push the slider away from the thumb ring to reposition
the clip as needed before deployment.
Press the clip firmly against the target tissue and close the clip.
Deploy the clip by pulling the slider with both hands toward the
thumb ring. You will feel pressure and hear a noticeable click.
Push the slider completely away from the thumb ring to release
the clip. Visually confirm the clip has released prior to removing the
sheath from the scope.
QuickClip Pro
™
Clip Fixing Device (HX-202LR, HX-202UR)
Quick Reference Guide
QuickClip Pro is designed for endoscopic clip placement within the gastrointestinal tract.
CAUTION: This guide is only a summary of the instructions for use for the HX-202LR and HX-202UR QuickClip Pro. Be sure to follow the Instruction
Manual included in the device packaging.
