EN 87
Appendix

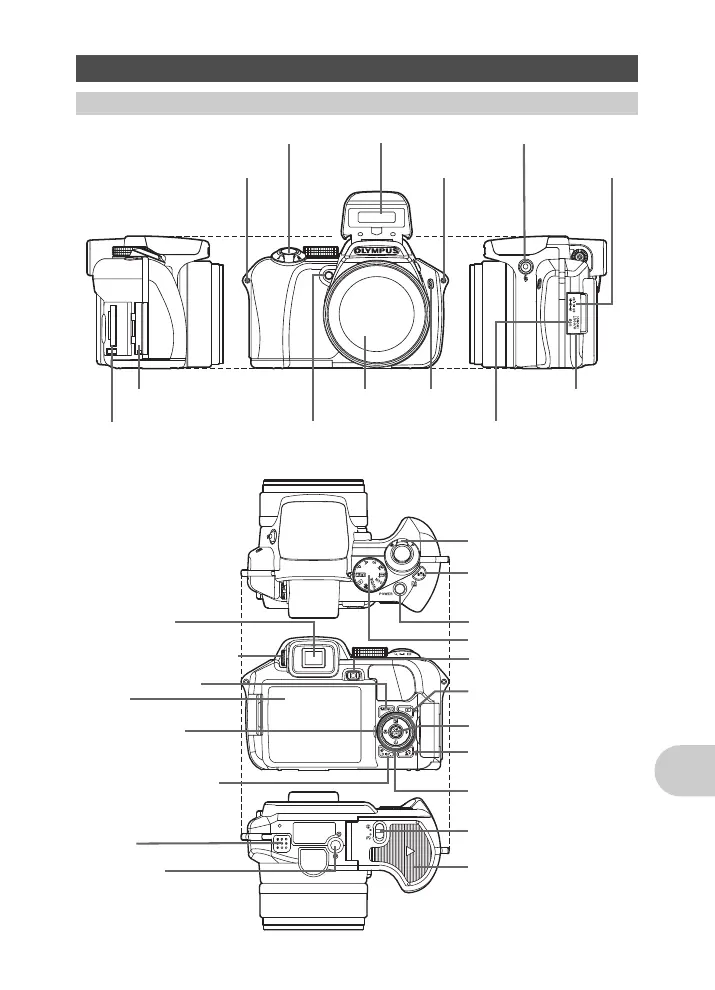

CAMERA DIAGRAM
Camera
Shutter button (P.9, P.14)
Flash (P.17)
Card Slot (P.5)
Card Cover (P.5)
Self-Timer Lamp/AF Illuminator
(P.20, P.29, P.67)
Lens
Zoom Lever (P.15)
Mode Dial (P.6, P.11)
o button (P.6, P.11)
h/m button
(Digital Image Stabilization/
Custom button/Sequential
playback) (P.16)
# button (Flash Popup) (P.17)
DISP./E button (P.17)
Viewfinder (P.9)
m button (P.17)
Monitor
(P.44, P.88)
Tripod Socket
Battery Compartment Cover
(P.4)
Battery Compartment Lock
(P.4)
Arrow Pad (P.18)
o button (OK/FUNC) (P.20)
f/S button
(Shadow Adjustment
Technology/Erase) (P.18)
u button (Monitor/
Viewfinder) (P.17)
Card access lamp
(P.9, P.59, P.67)
Strap Eyelet (P.3) Strap Eyelet DC-IN jack
(P.79)
Connector Cover
(P.46, P.48, P.58)
Multi-connector
(P.46, P.48, P.58)
Microphone
Speaker
Diopter adjustment dial (P.9)
q/P button (Playback/Print)
(P.18 , P.49)
