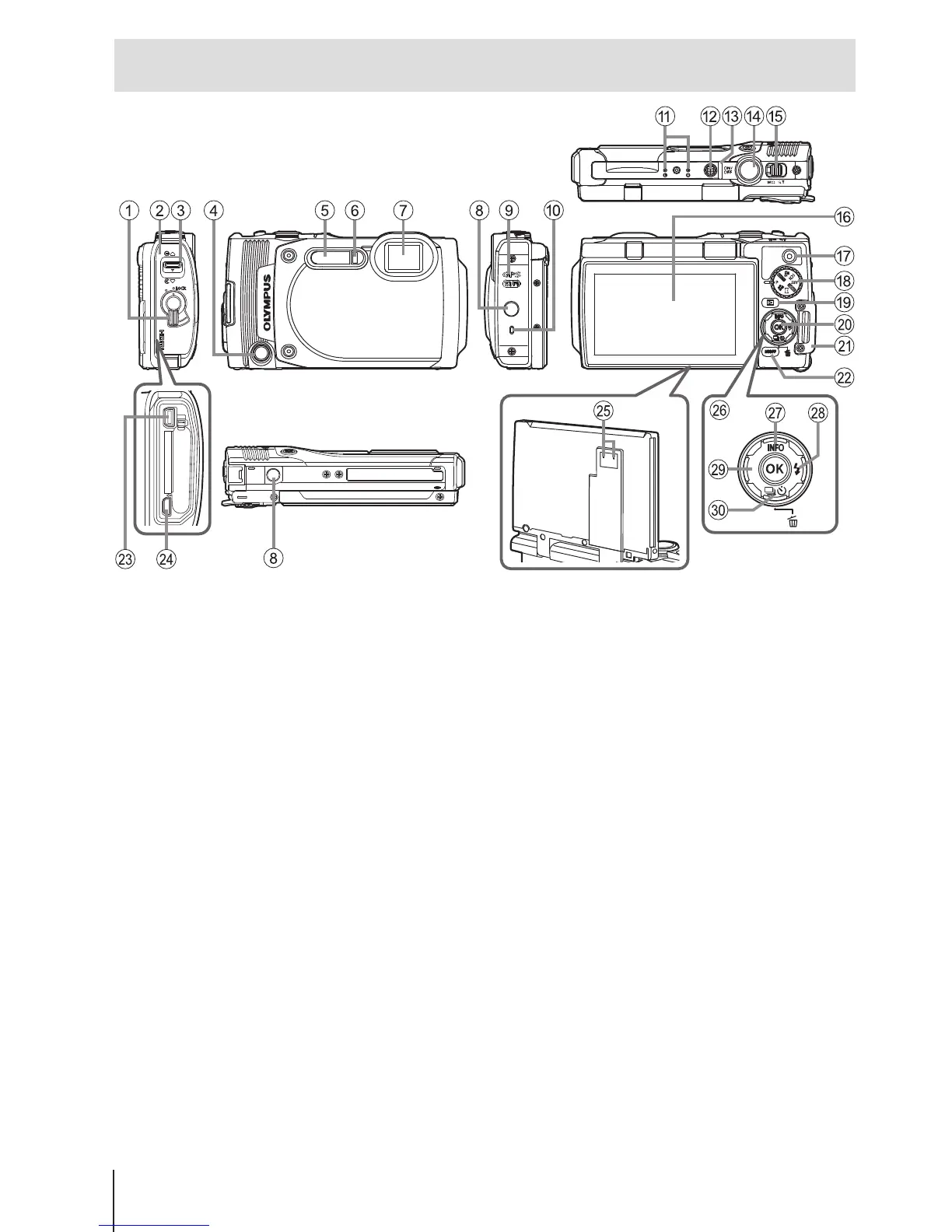

Names of parts
1 Battery/card compartment/
connector cover lock
2 Battery/card compartment/
connector cover
3 Battery/card compartment/
connector cover latch
4 Face button
5 Flash
6 Self-timer lamp/LED Illuminator/
AF illuminator
7 Lens
8 Tripod socket
9 GPS antenna
0 Speaker
a Stereo microphone
b n button
c Indicator lamp
d Shutter button
e Zoom lever
f Monitor
g R (Movie) button
h Mode dial
i q (Playback) button
j A button
k Strap eyelet
l / Wi-Fi button
m Multi-connector
n HDMI micro connector
o Pressure adjustment hole*
p Arrow pad
q F (Up) / INFO (Information
display) button
r I (Right) /# (Flash) button
s H (Left) button
t
G (Down) / jY (Sequential
shooting/Self-timer) /
(Erase)
button
* Do not stick pointed objects like a pin into the hole.
• FGHI instruct to press the up/down/left/right arrow pad.
