USG-400
Installation and Connection 3-6 ISSUE1
3. Removing the docking plug cover

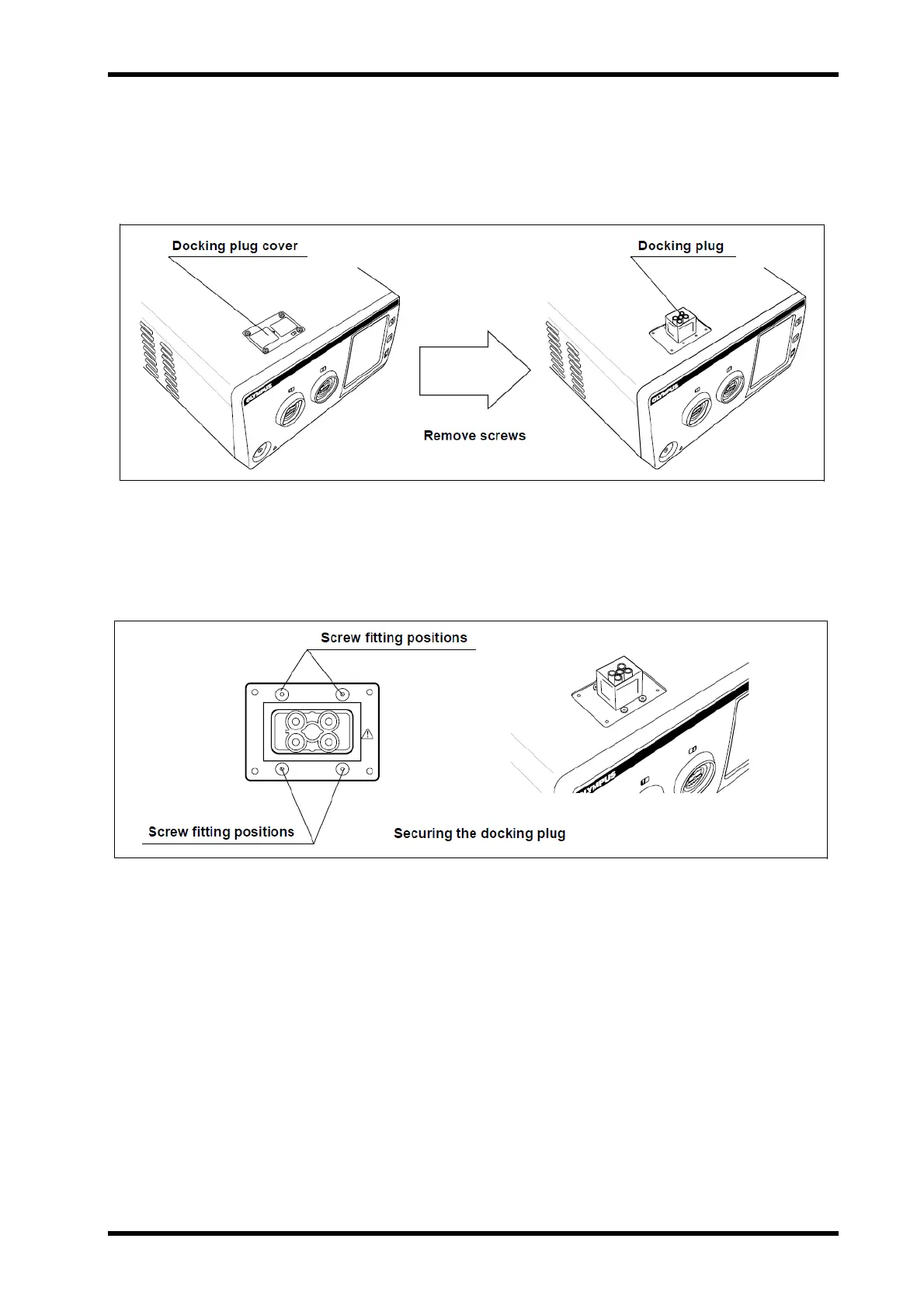

Holding the docking plug cover, remove four screws from the docking plug
cover (see Figure 3.2). Retain the docking plug cover.
Removing the docking plug cover exposes the docking plug.
Figure 3.2
4. Securing the docking plug
Insert the screws removed in step 3 into the four positions around the
docking plug and tighten securely (see Figure 3.3).
Figure 3.3
5. Attaching the fixture plates to the ultrasonic generator
Attach the fixture plates on two positions at the top left and top right of the
rear panel of the ultrasonic generator using three screws for each plate (see
Figure 3.4).
