USG-400
ISSUE1 3-13 Installation and Connection
1. Preparation
Prepare the adapter for UHI-2/3 and the communication cable 10 m.
The compatible high flow insufflation unit cannot be connected directly
to the ultrasonic generator. The use of an adapter for UHI-2/3 is required
for the connection.
2. Connecting the adapter for UHI-2/3
Connect the system plug of the adapter for UHI-2/3 to the system connector
on the rear panel of the compatible high flow insufflation unit. After
connection, secure the system plug by fasten the screws on both sides of
the plug (see Figure 3.13).
3. Connecting the communication cable 10m to the adapter for UHI-2/3
Connect the plug of the communication cable 10 m to the LINK-IN or
LINK-OUT connector of the adapter for UHI-2/3. After connection, secure
each plug by pushing it in while turning the screws on both sides of the plug
(see Figure 3.13).
4. Connecting the communication cable 10m (to the ultrasonic generator)
Connect the other plug of the communication cable 10 m that has been
connected to the adapter for UHI-2/3 to the LINK-IN or LINK-OUT connector
of the ultrasonic generator. After connection, secure each plug by pushing it
in while turning the screws on both sides of the plug (see Figure 3.13).

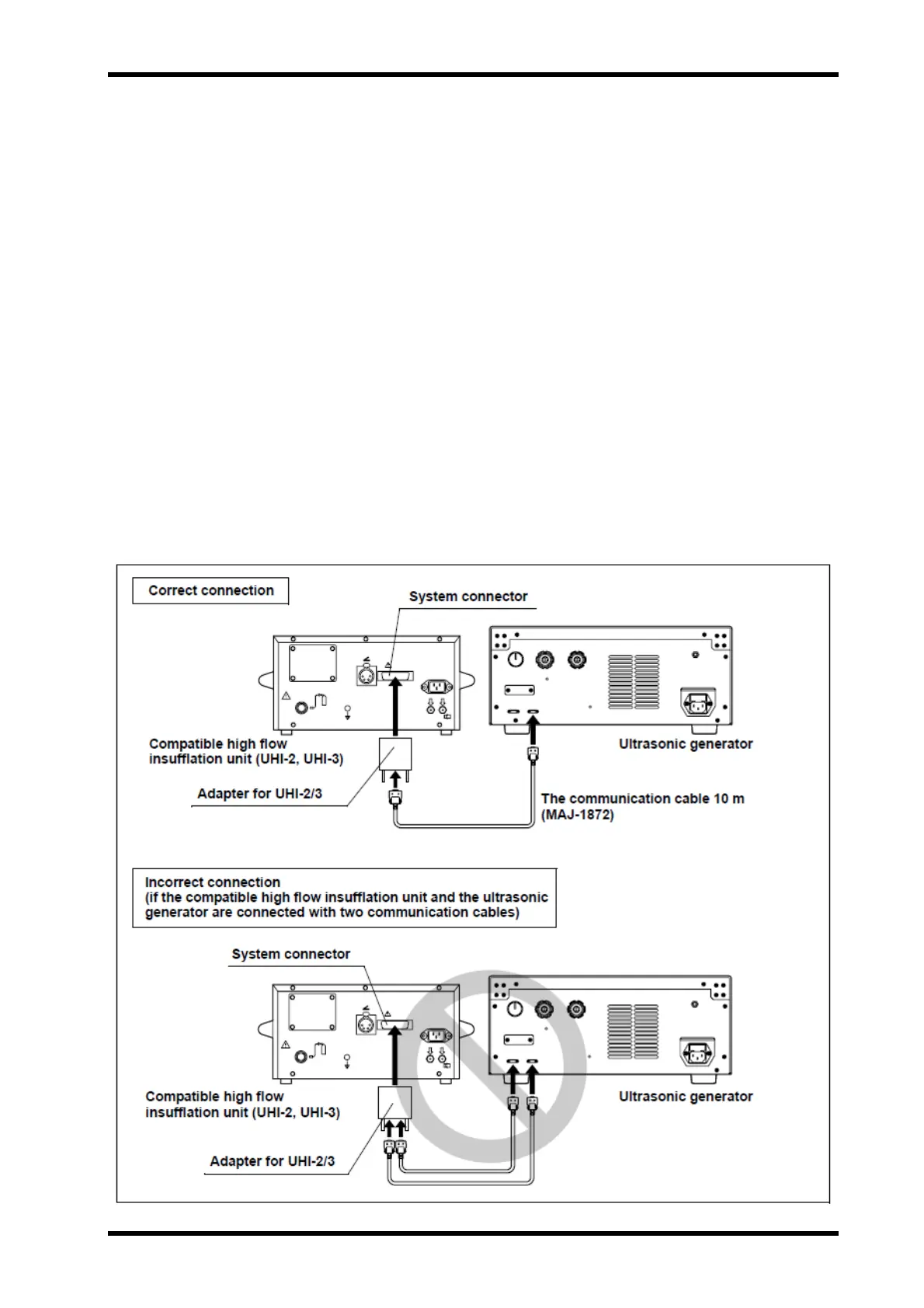

Figure 3.13
