USG-400
ISSUE1 5-11 Inspection

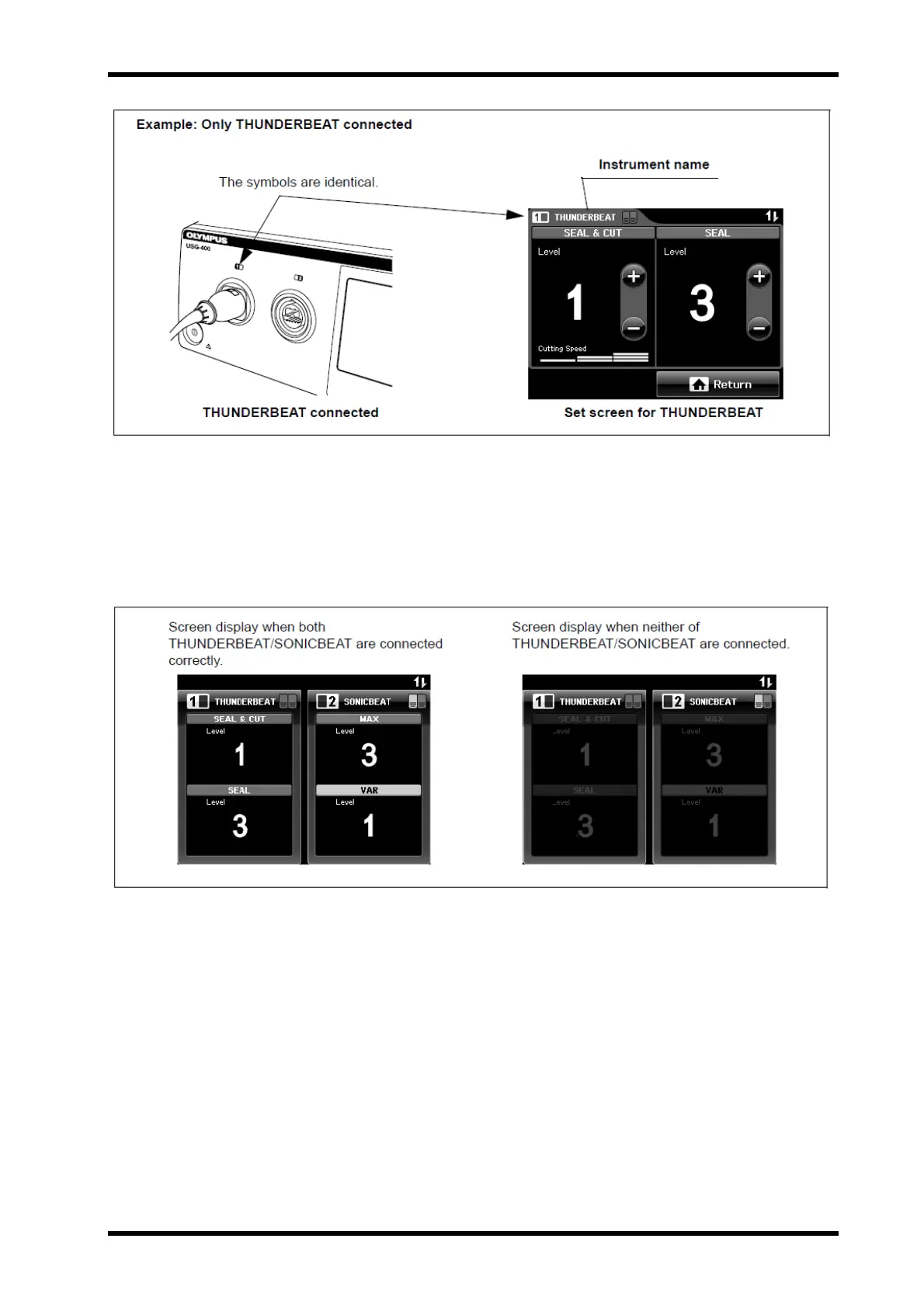

Figure 5.10
When both THUNDERBEAT and SONICBEAT are connected
Displayed screen: All screen
After turning the ultrasonic generator ON, confirm that the “THUNDERBEAT and
SONICBEAT buttons” are illuminated on the “All screen” (see Figure 5.11).
Figure 5.11
When the other THUNDERBEAT or SONICBEAT is added
Displayed screen: changing from Set screen to All screen
1. Connect the other THUNDERBEAT or SONICBEAT.
2. Confirm that the touch-screen shows the “All screen” that illuminates
“THUNDERBEAT and SONICBEAT buttons”.
The displayed “Set screen” changes to the “All screen” at the moment
the other THUNDERBEAT or SONICBEAT is connected (see Figure
5.12).
