USG-400
Inspection 5-16 ISSUE1

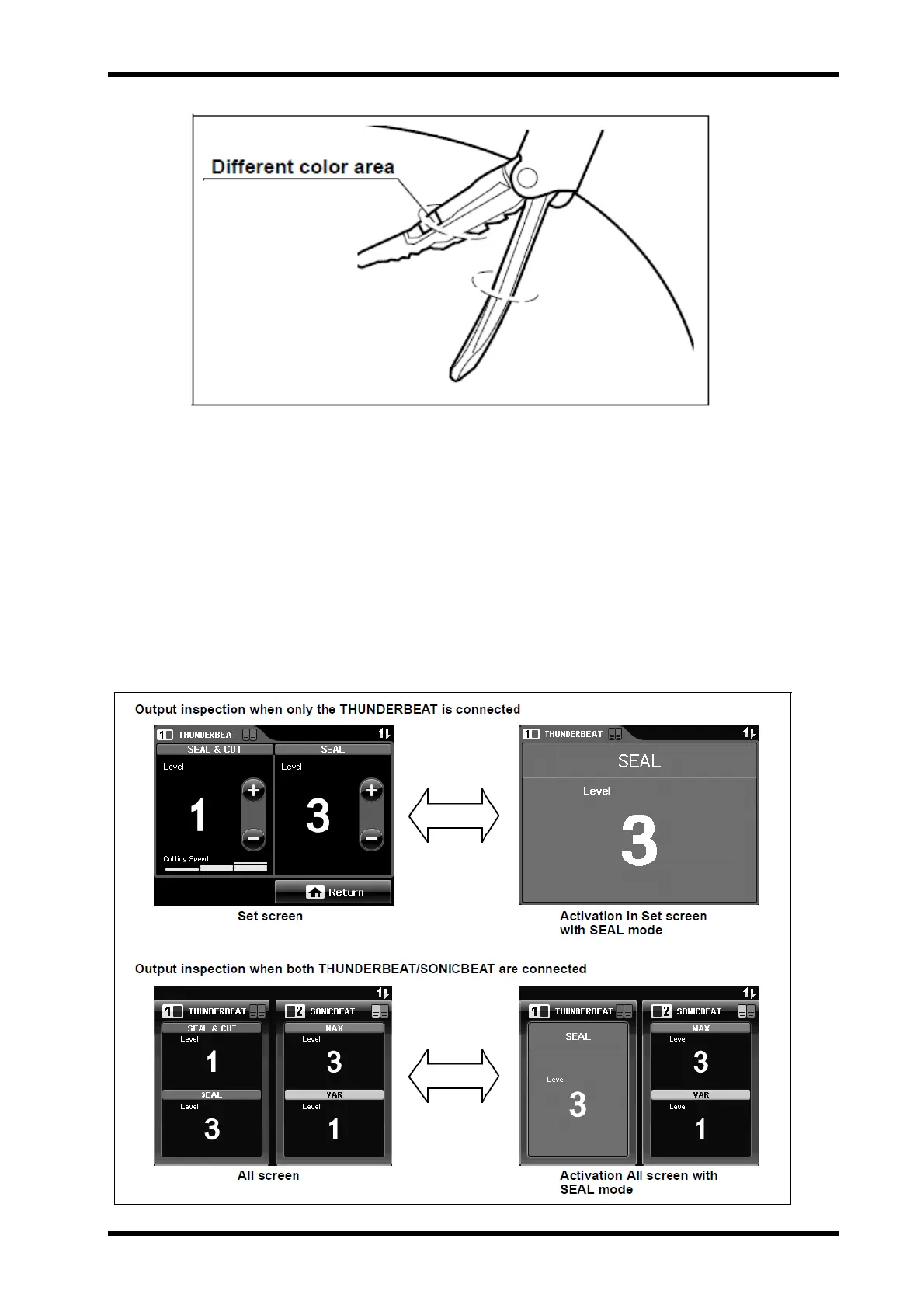

Figure 5.16
3. Activation
Press and hold the SEAL button (blue) of the handswitch or the SEAL pedal
(right pedal: blue) of the footswitch for the high-frequency (RF bipolar)
output.
4. Inspectiong the output
Confirm the following items during the SEAL mode output:
- The activation “All screen” or “Set screen” is displayed on the touch-screen
of the ultrasonic generator, no error window (see Figure 5.17).
- The output tone sounds from the compatible electrosurgical generator.
Figure 5.17
