Olympus VG-170 User Manual

9
EN

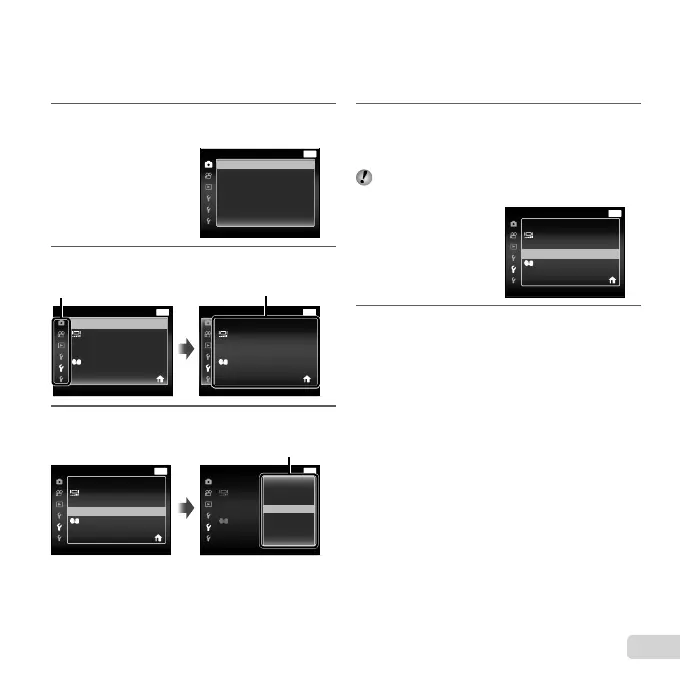

1 Press the  button.
● The setup menu is displayed.
MENU
Camera Menu Back
ResetReset
On
OnDate Stamp
Compression
AF Mode
Digital Zoom
AF Illuminat.
Icon Guide
Normal
Face/iESP
Off
On
2 Press H to highlight the page tabs. Use FG
to select the desired page tab and press I.
Pixel Mapping
MENU
Settings Menu 2
Power SavePower Save
World TimeWorld Time
NTSC/PAL
Back
NTSC
Bright
English
Off
X
’12.02.26 12:30
Page tab
MENU
Settings Menu 2
Pixel Mapping
Back
Power SavePower Save
World TimeWorld Time
NTSC/PAL
NTSC
Bright
English
Off
X
’12.02.26 12:30
Submenu 1
3 Use FG to select the desired submenu 1 and
then press the Q button.
Power SavePower Save
Off
MENU
Settings Menu 2
Pixel Mapping
Back
World TimeWorld Time
NTSC/PAL
NTSC
Bright
English
X
’12.02.26 12:30
Power SavePower Save
Pixel Mapping
MENU
Settings Menu 2 Back
World TimeWorld Time
NTSC/PAL
X
On
Off
Submenu 2
4 Use FG to select the desired submenu 2 and
then press the Q button.
● Once a setting is selected, the display returns to
the previous screen.
There may be additional operations.
“Menu Settings” (p. 32 to 43)
Power SavePower Save
On
MENU
Settings Menu 2
Pixel Mapping
Back
World TimeWorld Time
NTSC/PAL
NTSC
Bright
English
X
’12.02.26 12:30
5 Press the  button to complete the setting.
Setup menu
Setup menu
Press the  button during shooting or playback to display the setup menu. The setup menu provides access to a
variety of camera settings, including options not listed in the function menu, display options, and the time and date.

Olympus VG-170 Specifications

General

Megapixel	14 MP
Camera type	Compact camera
Sensor type	CCD
Image stabilizer	Yes
Total megapixels	14.5 MP
Image sensor size	1/2.3 \
Image formats supported	JPG
Supported aspect ratios	16:9
Maximum image resolution	4288 x 3216 pixels
Still image resolution(s)	640 x 480, 1280 x 960, 1600 x 1200, 1920 x 1080, 2048 x 1536, 2560 x 1920, 3264 x 2448
Digital zoom	4 x
Optical zoom	5 x
Combined zoom	20 x
Focal length range	4.7 - 23.5 mm
Maximum aperture number	6.5
Minimum aperture number	2.8
Lens structure (elements/groups)	7/5
Maximum focal length (35mm film equiv)	130 mm
Minimum focal length (35mm film equiv)	26 mm
Focus	TTL
Focus adjustment	Auto
Normal focusing range	0.6 - ∞ m
Auto focusing (AF) modes	Spot Auto Focus
Super Macro focusing range	0.05 m
Macro focusing range (wide)	0.2 - ∞ m
Normal focusing range (tele)	1 - ∞ m
ISO sensitivity	80, 100, 200, 400, 800, 1600
ISO sensitivity (max)	1600
ISO sensitivity (min)	80
Light exposure correction	± 2EV (1/3EV step)
Fastest camera shutter speed	1/2000 s
Slowest camera shutter speed	4 s
Flash modes	Auto, Fill-in, Flash off, Red-eye reduction
Flash range (tele)	- m
Flash range (wide)	8.8 m
Power source type	Battery
Camera shutter speed	1/2 - 1/2000 s
Scene modes	Beach, Cuisine, Documents, Fireworks, Night, Night portrait, Party (indoor), Portrait, Self-portrait, Snow, Sports, Sunset, Landscape (scenery)
Photo effects	-
White balance	Auto, Cloudy, Daylight, Fluorescent
Camera playback	Movie, Single image
GPS (satellite)	No
Self-timer delay	2, 12 s
Camera file system	Exif 2.3
Motion JPEG frame rate	30 fps
Video formats supported	AVI
Maximum video resolution	640 x 480 pixels
Memory slots	2
Internal memory	34.9 MB
Compatible memory cards	SD, SDHC, SDXC
Display diagonal	3 \
Display resolution (numeric)	460000 pixels
USB version	2.0
Product color	White
Battery type	LI-50B
Number of batteries supported	1

Weight and Dimensions

Depth	22.2 mm
Width	103.7 mm
Height	62.5 mm
Weight (including battery)	147 g
