UTILIZZO USE
19
OMCA S.r.l - Via Curiel, 6 - 42025 - Cavriago (RE) - ITALY
Phone: +39 0522 943502 / +39 0522 943503 - Website: www.omcasrl.it - E-mail: info@omcasrl.it

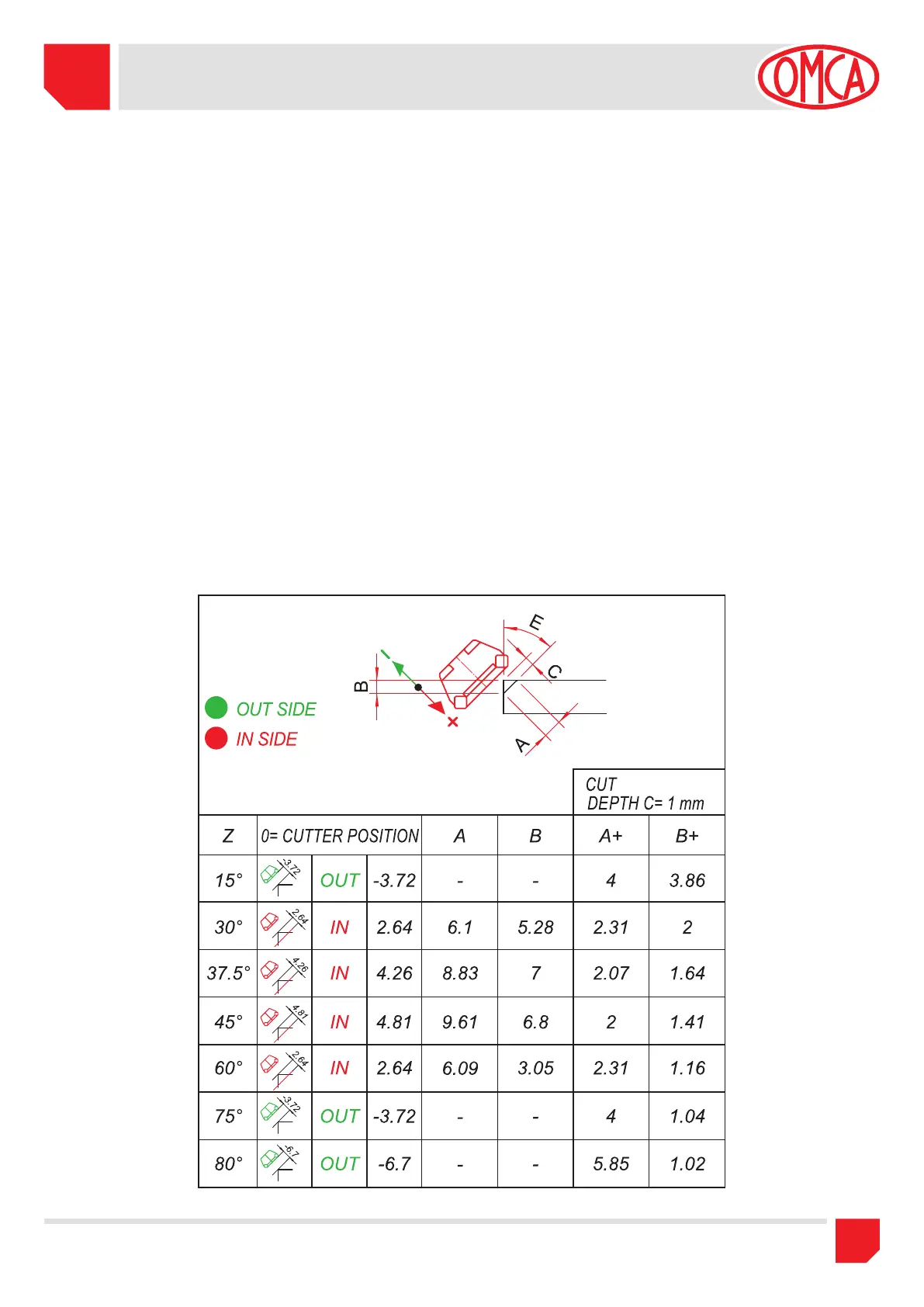

CUT DEPTH C=1mm.:
A+
In base all’inclinazione dello smusso “Z” aumentando o diminuendo
di 1mm. la diagonale dello smusso “A” aumenta o diminuisce del
valore di A+.
Es. Z=37.5°
Aumentando o diminuendo di 1mm la diagonale “A” aumenta o
diminuisce di 2.07mm.
Aumentando o diminuendo di 2mm. la diagonale “A” aumenta o
diminuisce di 4.14mm. (2.07x2mm.)
B+
In base all’inclinazione dello smusso “Z” aumentando o diminuendo
di 1mm. l’altezza dello smusso “B” aumenta o diminuisce del valore
di B+
Es. Z=37.5°
Aumentando o diminuendo di 1mm l’altezza “B” aumenta o diminuisce
di 1.64mm.
Aumentando o diminuendo di 2mm. l’altezza “B” aumenta o diminuisce
di 3.28mm. (1.64x2mm.).
CUT DEPTH C=1mm.:
A+
According to the inclination of Chamfer “Z”, by increasing or
decreasing of 1mm, the chamfer diagonal “A” increases or decreases
by the value of A+.
Ex. Z=37.5°
By increasing or decreasing of 1mm, the diagonal “A” increase or
decrease of 2.07mm.
By increasing or decreasing of 2mm, the diagonal “A” increases or
decreases by 4.14mm. (2.07x2mm).
B+
According to the inclination of Chamfer “Z”, by increasing or
decreasing of 1mm, the chamfer height “B” increases or decreases
by the value of B+.
Ex. Z=37.5°
By increasing or decreasing of 1mm the height “B” increases or
decreases of 1.64mm.
By increasing or decreasing of 2mm the height “A” increases or
decreases of 3.28mm. (1.64x2mm).
