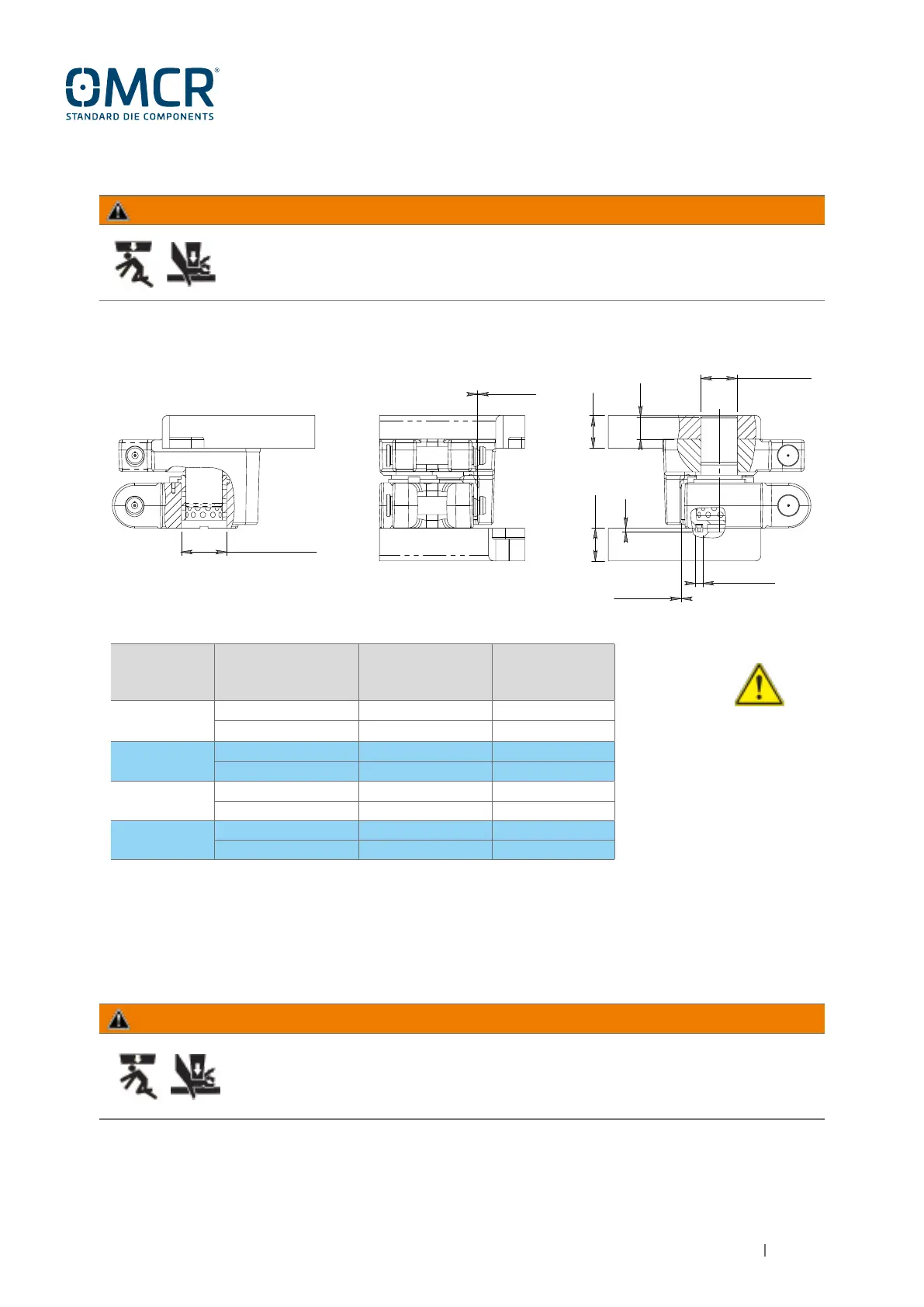

BUSH ASSEMBLY PLATE SLIDING CLEAR GUIDE POST AND KEYS
ASSEMBLY
After assembling check the tolerances at the brackets B01.26.08000A, B01.26.08000B,
B01.26.14000A e B01.26.14000B according to the drawing below. These tolerances are critical.
(see Pic.4).
WARNING
3.4.4 - GENERAL ASSEMBLY INSTRUCTIONS
Ø 125 G6/h7
0,02 ÷ 0,04
0,02 ÷ 0,04
Ø 100 H7/r6
A H7/h6
90
62
90
H
Pic.4
OMCR CODE COMPOSTO DA A H
B01.26.08000A
B01.26.08000A-01 20 10
B01.26.08000A-02 - -
B01.26.08000B
B01.26.08000B-01 20 10
B01.26.08000B-02 - -
B01.26.14000A
B01.26.14000A-01 28 20
B01.26.08000A-02 - -
B01.26.14000B
B01.26.14000B-01 28 20
B01.26.08000B-02 - -
Before assembly carefully clean the contact surfaces between lifting brackets and steel
plates. Oil or other contamination on contact surfaces can affect the proper function of the
lifting brackets.
WARNING
3.4.5
