B01.26.14000A-01 and B01.26.14000B-01 lifting brackets should be mounted on steel
plates (minimum quality S355),with C14.21.284080 keys. It is recommended to provide
barriers to avoid the wrong pins insertion (see
Pic.2).
WARNING
B01.26.08000A-02 e B01.26.08000B-02 lifting brackets should be mounted on steel
plates (minimum quality S355), It is recommended to provide barriers to avoid the wrong
pins insertion (see Pic.3).
WARNING

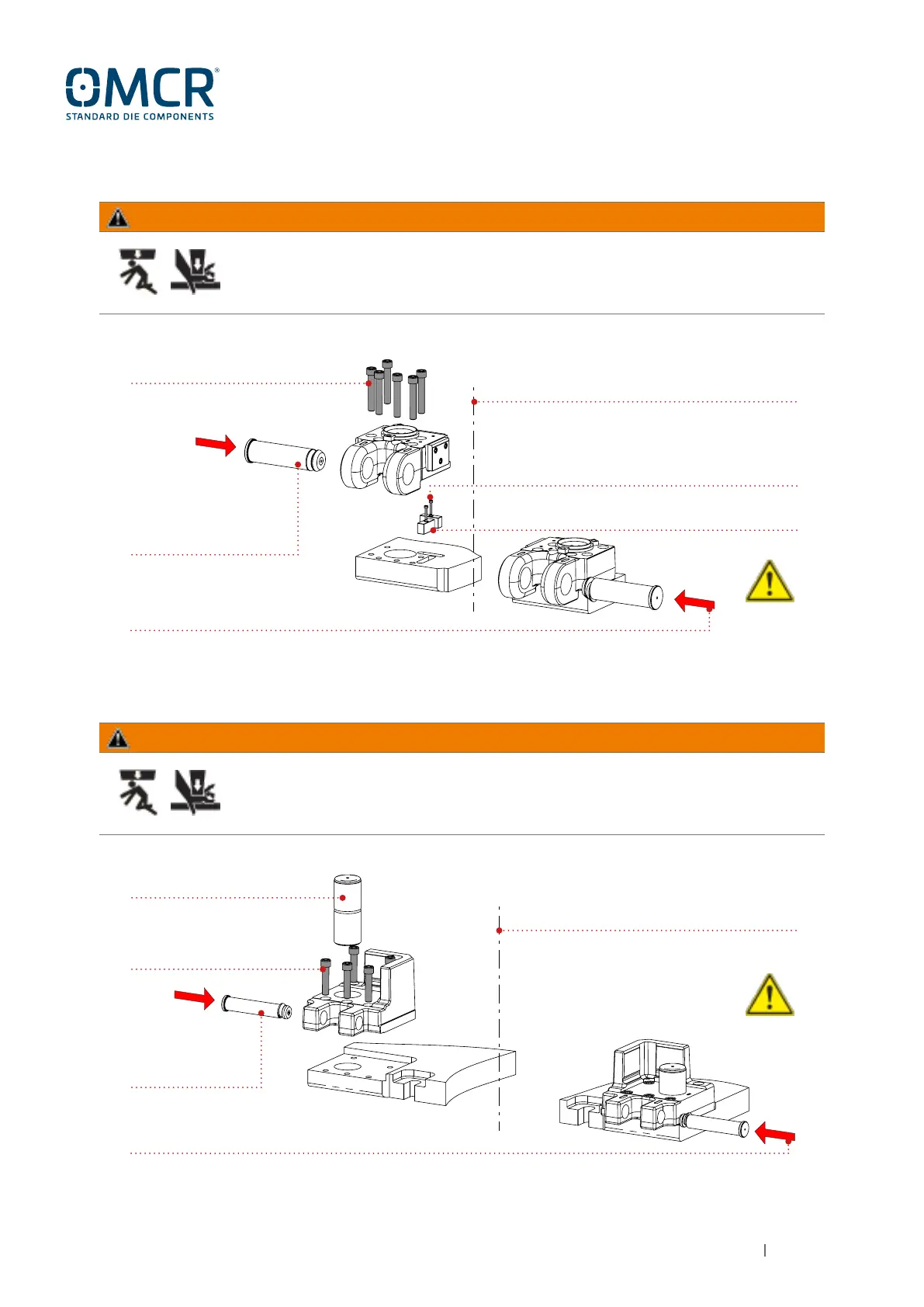

3.4.2 - ASSEMBLY B01.26.14000A-01 e B01.26.14000B-01
3.4.3 - ASSEMBLY B01.26.08000A-02 AND B01.26.08000B-02
Pic.2
DIN 912 CL.12.9
DIE AXIS
PIN INSERTION DIRECTION
LIFTING BRACKET
B02.40.80
DIN 912 CL.8.8
KEYS C14.21.284080
Pic.3
DIN 912 CL.12.9
E45.10.100250
DIE AXIS
PIN INSERTION DIRECTION
LIFTING BRACKET
B02.10.50
