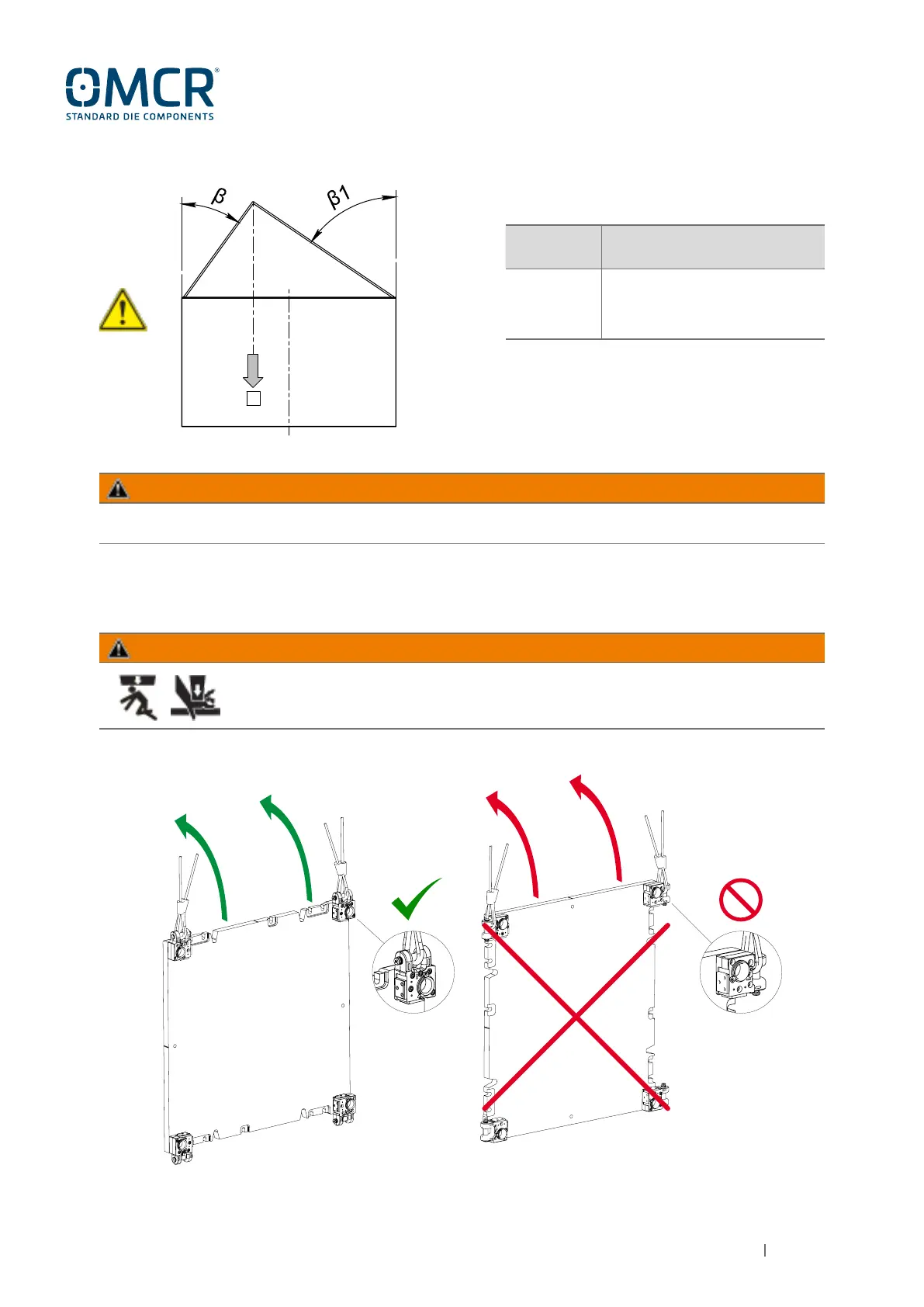

The die overturning of half-die is allowed only parallel with lifting pin axis.
WARNING
3.2.3 - OVERTURNING OF HALF-DIES
ANGLE
REDUCTION FACTOR OF THE
NOMINAL CAPACITY LOAD
β<15°
β>40°
β1-β>15°
0.5
ASYMMETRIC SLING EXAMPLE
(β1>β)
G = Die load center
β = Minimum rope angle from vertical
β1 = Maximum rope angle from vertical
WARNING
Failure to observe the regulations listed in these instructions can cause the load to fall.
