OMEGA AIR WOS User Manual

WOS - Installation and operating manual
3
Technical data
Size
Cold climate zone
15°C 60%RH
Mild climate zone
25°C 60%RH
Hot climate zone
40°C 100%RH
WOS-4
2,89
2,43
1,23
Max oil adsorption[kg]
4,82/170,22
4,04/142,80
2,05/72,32
Max FAD [Nm
3
/min]/[scfm]
2,3
3,4
6,3
Max condensate flow [l/h]
[1]
WOS-8
6,01
5,04
2,55
Max oil adsorption[kg]
10,01/353,55
8,40/296,60
4,25/150,21
Max FAD [Nm
3
/min]/[scfm]
4,7
7,1
13,1
Max condensate flow [l/h]
[1]
WOS-20
14,64
12,28
6,22
Max oil adsorption[kg]
24,40/861,73
20,47/722,92
10,37/366,12
Max FAD [Nm
3
/min]/[scfm]
11,4
17,2
32,0
Max condensate flow [l/h]
[1]
WOS-35
25,40
21,31
10,79
Max oil adsorption[kg]
42,34/1495,07
35,52/1254,24
17,99/635,21
Max FAD [Nm
3
/min]/[scfm]
19,8
29,8
55,6
Max condensate flow[l/h]
[1]
[1]Max condensate volume per condensate drain single discharge is 0,250 ltr.
[2]Max. operating temperature is 65°C, but when temperature is over 45°C, performance may decrease.
Materials
Housing material
HDPE
Fittings
Brass, Brass-zinc plated, Steel
Filter material
PP (polypropylene), Active carbon
There is Technical datasheet available. For additional technical specification, contact
manufacturer.
WOS-4
WOS-8
WOS-20
WOS-35
Nr. of inlet connections
1
2
2
4
Nr. of outlet
connection
1
1
1
1
Connection type
Hosetail for pipe Ø int. 10 mm

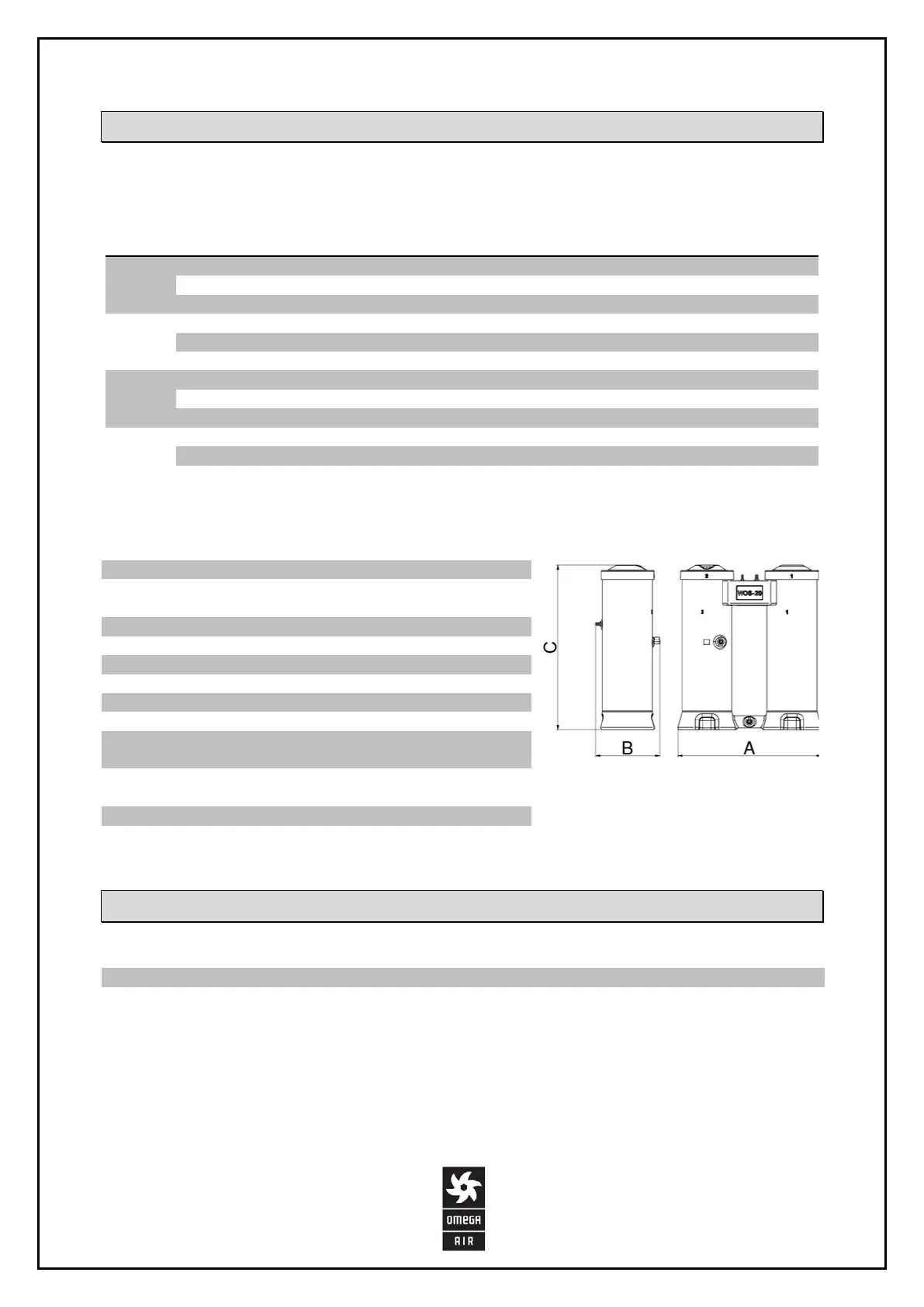

DIMENSIONS
A [mm]
416
730
820
960
B [mm]
243
343
366
386
C [mm]
411
680
940
1137
Operating temperature
1,5 - 45°C (max. 65°C)
[2]
35 – 113°F (max. 149°F)
[2]
Operating media
Condensate (air, water, oil); non-
aggressive; not suitable for emulsion
Residual oil content
Less than 10ppm

OMEGA AIR WOS Specifications

General

Brand	OMEGA AIR
Model	WOS
Category	Water Filtration Systems
Language	English
