17
PT

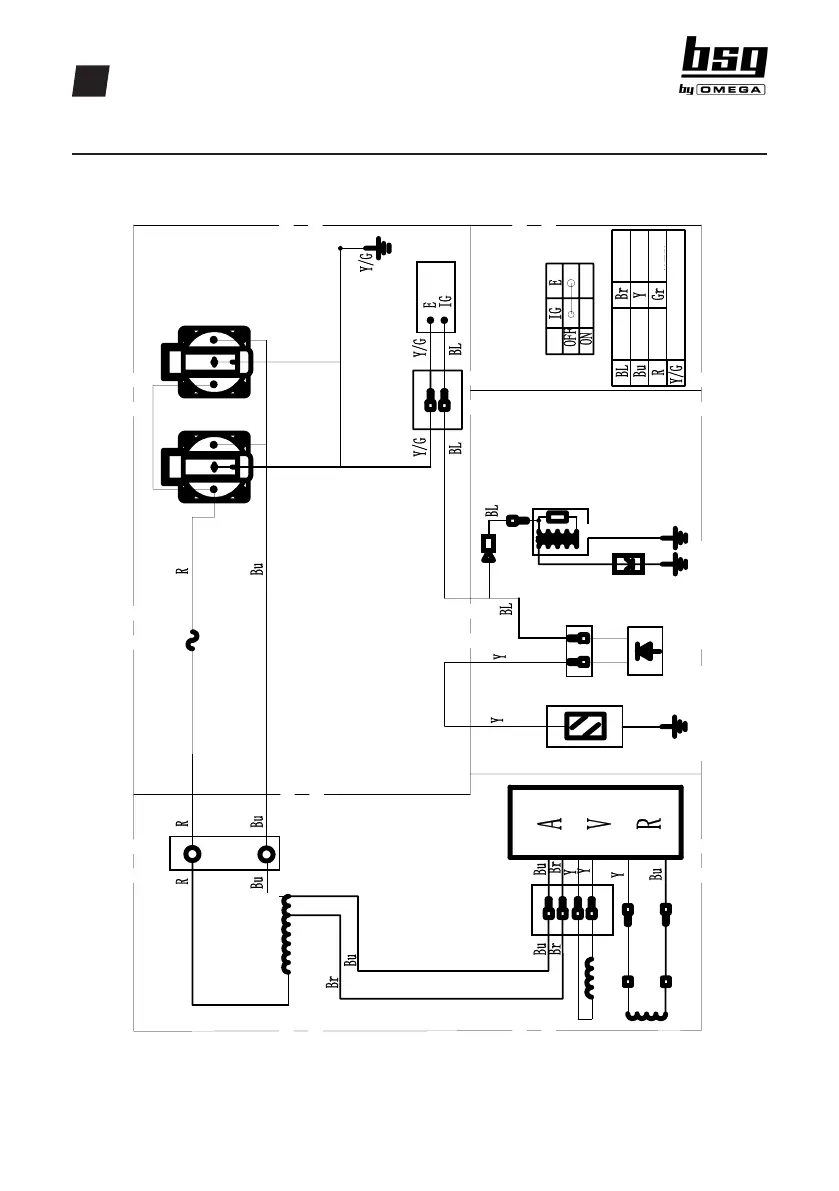

10. Diagrama de cablagem
Protetor
Bobina principal
BLOCO DO PAINEL DE CONTROLO
Interruptor motor
Interruptor motor
Bobina
de funcionamento
Bloco de motor
Vela
Alerta de óleo
Sensor de óleo
Bobina de campo
secundário
Bobina de campo
PRETO CASTANHO
AMARELO
VERDE
AZUL
VERMELHO
AMARELO/VERDE
