3. Using Measure Modes (Lower Display)
3.1 Measuring volts and frequency
Electrical parameters volts and frequency can be measured using
the lower display. To make the desired measurements, follow these
steps:
1. Switch to the lower display [LOWER] from Main Menu.
2. Select the desired parameter for measurement.
3. Connect leads as shown in Figure 5.

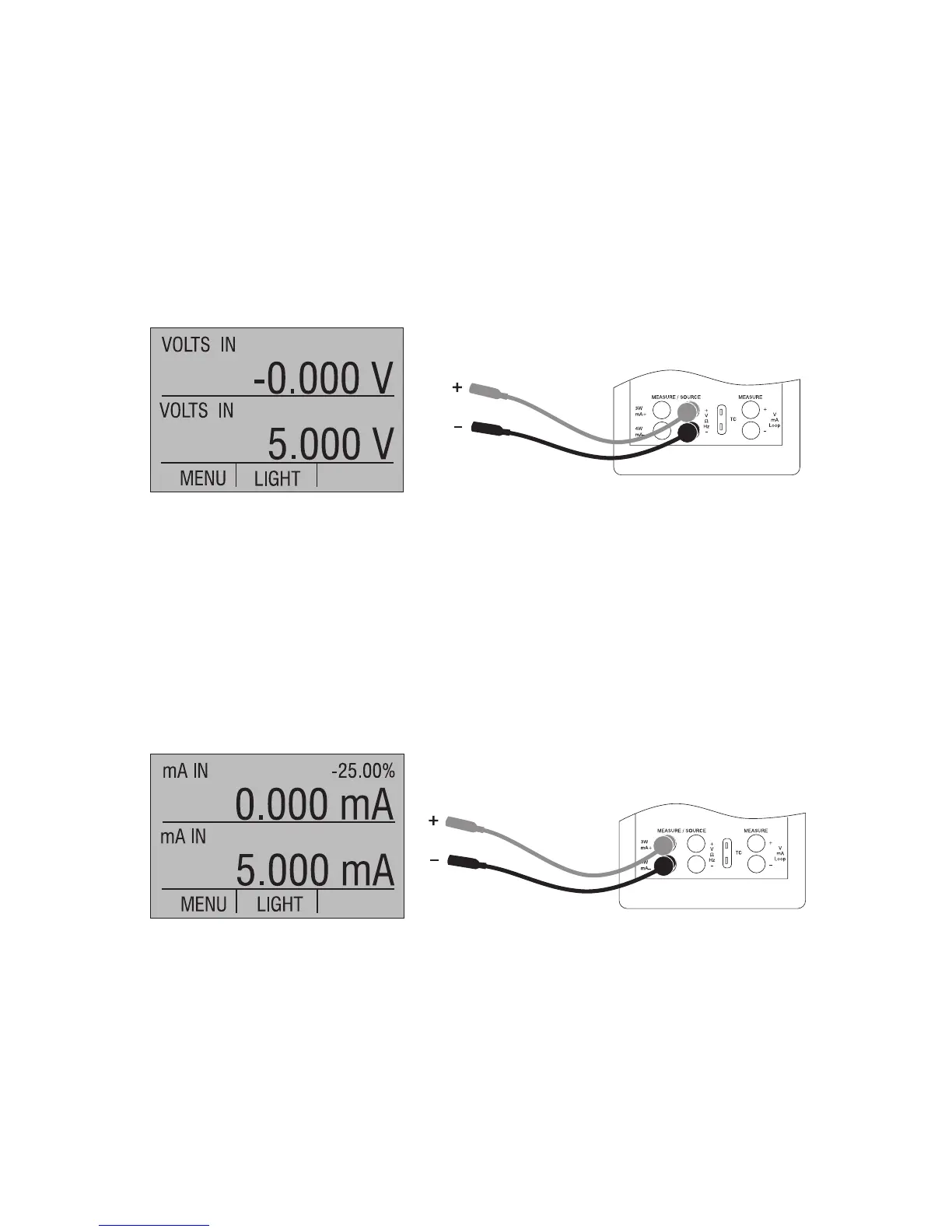

Figure 5.
Measuring Volts and Frequency with Input/Output Terminals
3.2 Measuring mA
To measure mA follow these steps:
1. Switch to lower display and select mA.
2. Make sure the input/output control is set to IN.
3. Connect leads as shown in Figure 6.
Figure 6. Measuring mA with Input/Output Terminals
3.3 Measuring Temperature
3.3-1 Using Thermocouples
The calibrator supports the following thermocouple types: B, C, E, J,
K, L, N, R, S, T, U, BP, and XK. The characteristics of all the types are
described in Specifications section. The calibrator also has a Cold
Junction Compensation (CJC) function. Normally this function should
13
