Omicron CT SB2 Getting Started

OMICRON 11
Introduction
2.4.2 Inputs and outputs

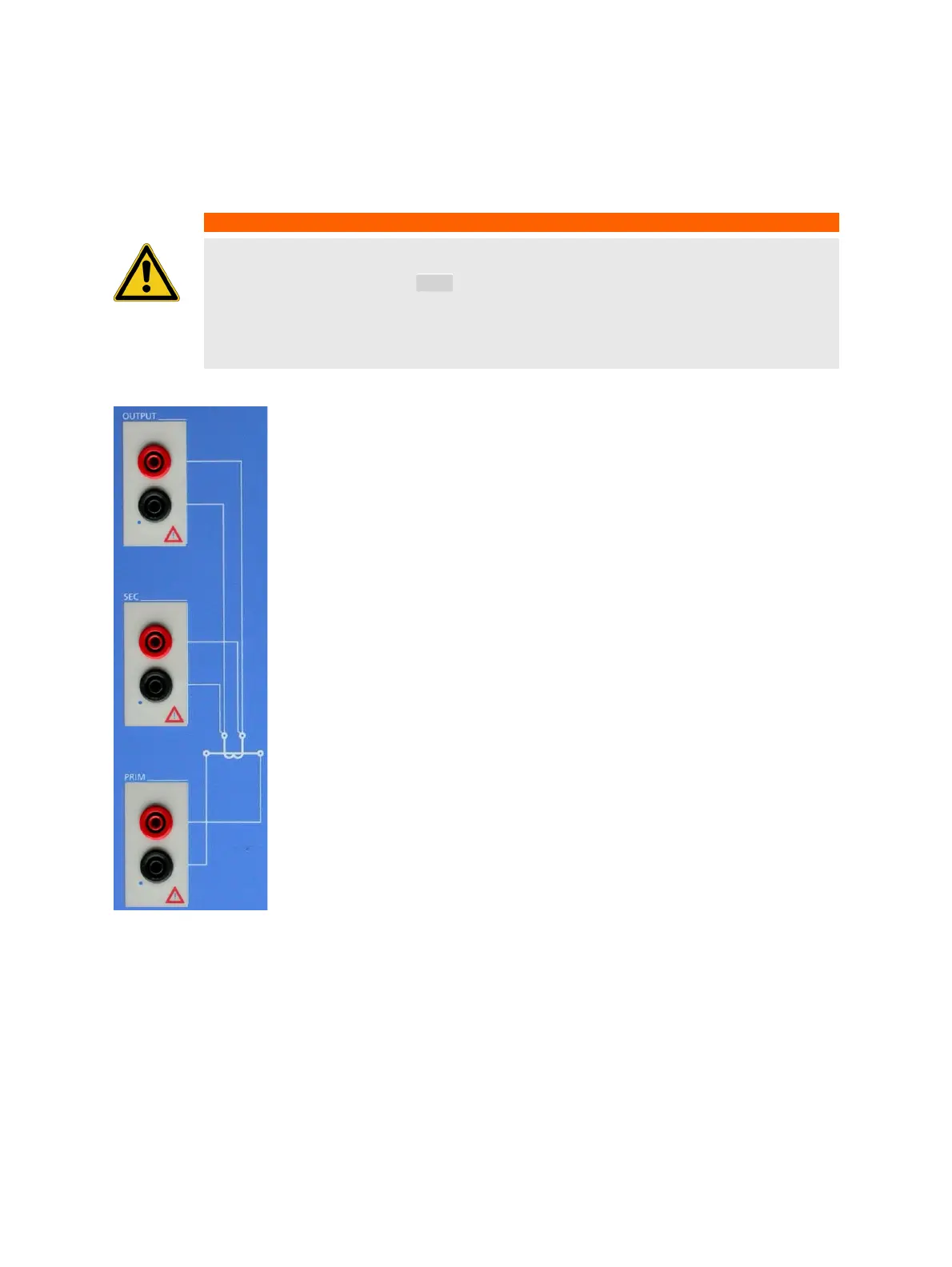

Figure 2-2: Inputs and outputs of the CT Analyzer
WARNING
Death or severe injury caused by high voltage possible
As long as the red LED of the key is flashing, the output is active and lethal voltages
can occur due to the high energy stored in external inductors.
► Do not touch the test object or the measurement leads while the red LED is flashing.
► Wait until the LED is off before touching the measurement setup.
I/0
Output
Generator output.
AC: 40V
rms
, 5A
rms
DC: 120V, 5A (15A
peak
)
Sec
Measurement input for secondary side of CT, 300V
AC
max.
Prim
Measurement input for primary side of CT, 30V
AC
max.
