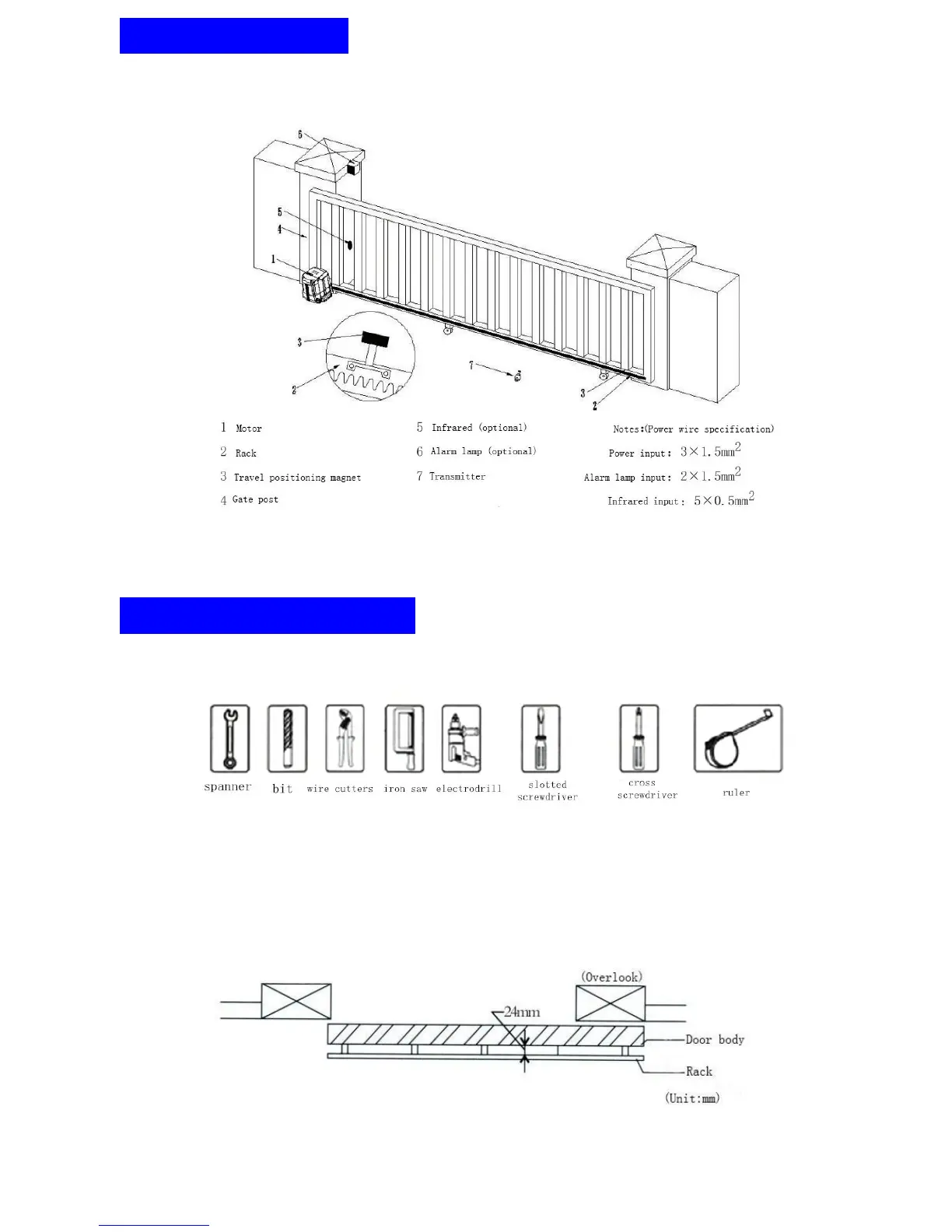

Ⅳ.Installation Diagram:

Note: Before installation please check if the motor meets your demand.

Fig.3

Ⅴ.Installation and Debugging:

5-1 Installation tools

Fig.4

5-2 Gear installation

(Distance between gear and door body is 24mm)

Fig.5
