14-12 E-Box Service Guide
Remove/Replace the Power Supply
1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G © 2011 Omnicell, Inc.
Remove/Replace the Power Supply
Remove the Power
S
u
pp
ly
1. Disconnect the cable that connects the power supply to the PowerCom4 board.

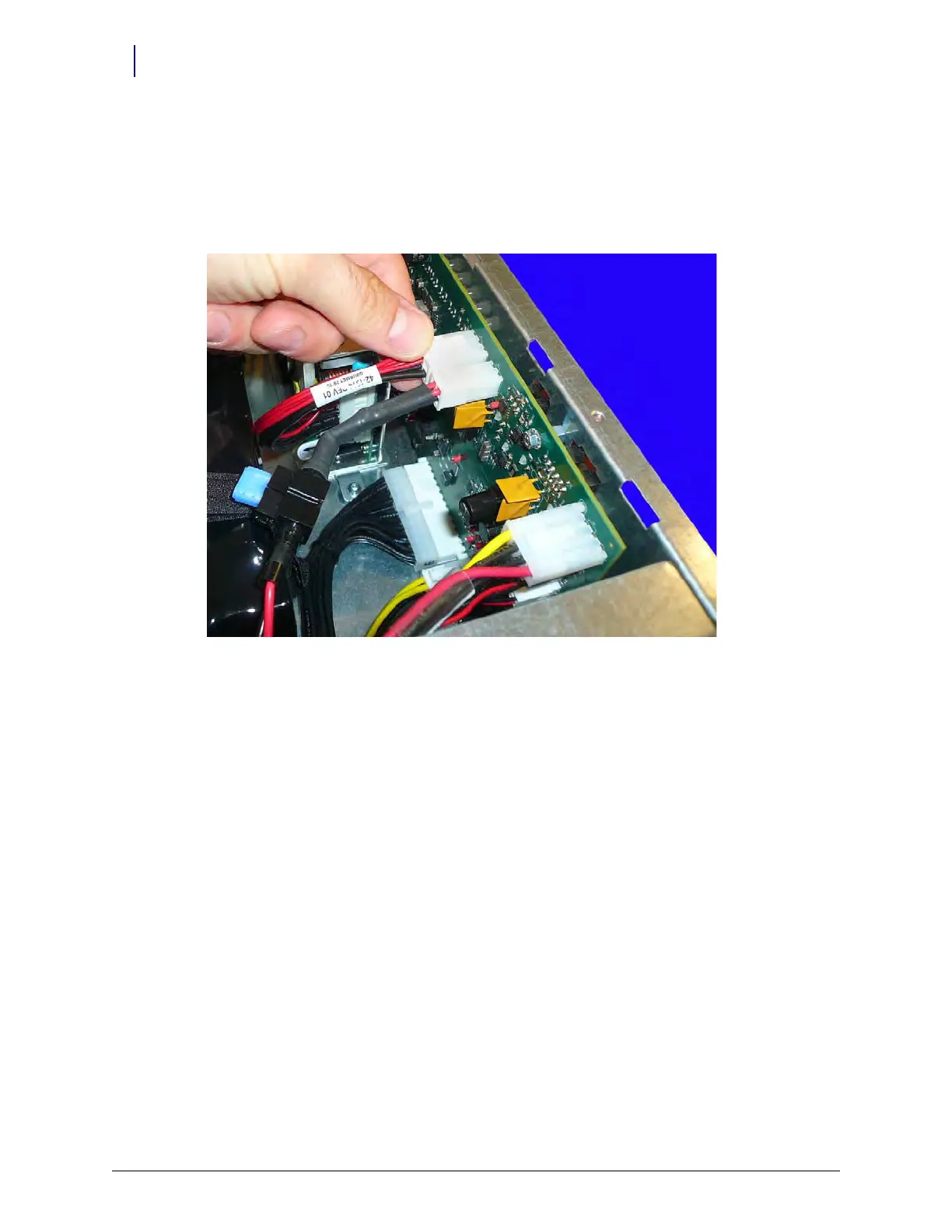

Figure 14-17. Disconnect the power supply cable from the PowerCom4 board.
