Omnimount Lift30

8 of 14
888-61-054-W-00 rev. E • 10/13
5
100mm
100mm
100 x 100
100 x 200
200 x 200
300 x 300
400 x 400
200 x 100
400mm
200mm
300mm
100mm
200mm
100mm
200mm
400mm
200mm
300mm
ENGLISH

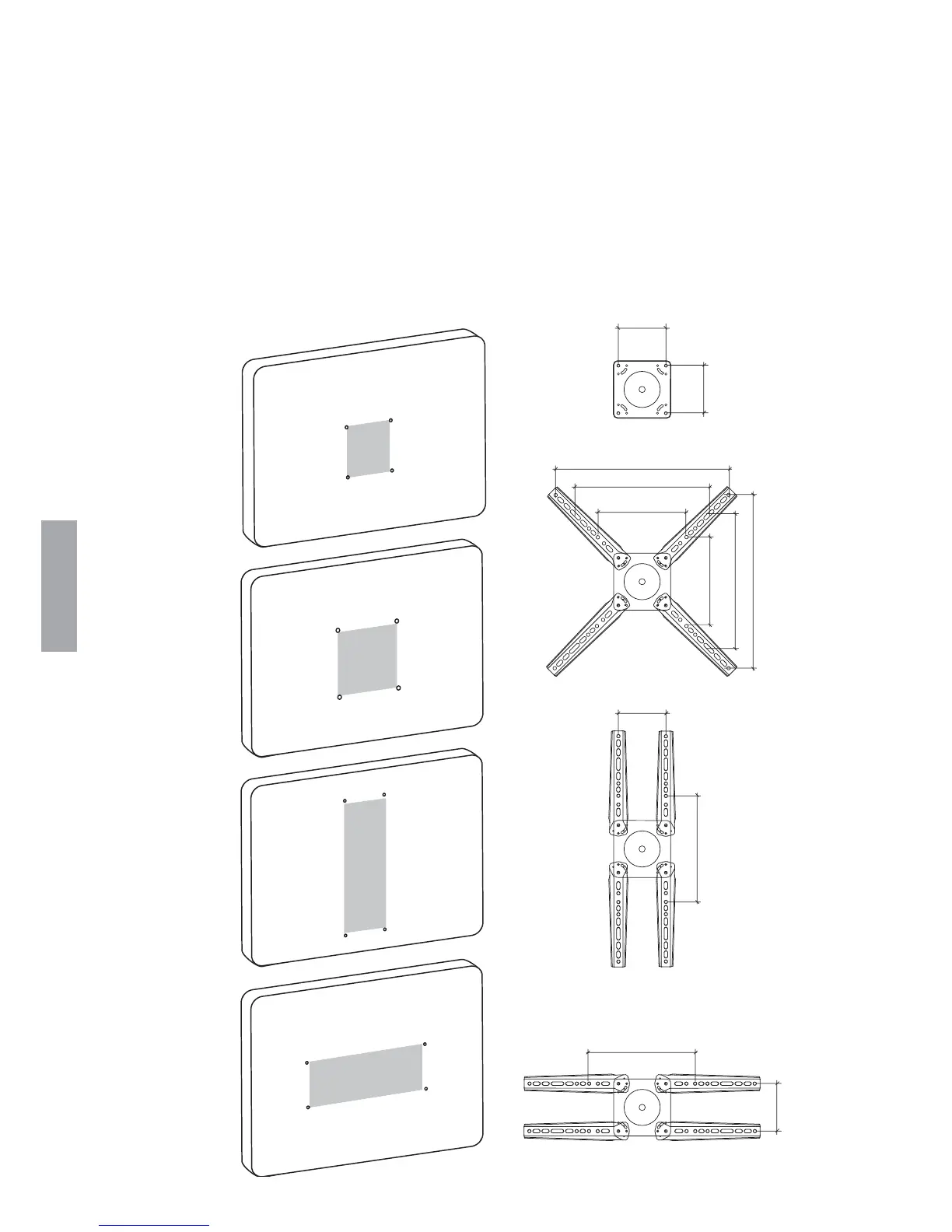

Determine if VESA adapters are needed between TV/display and Glide LD
Check the shape and size of your TV/large display mounting hole confi guration against the VESA con-
fi gurations shown below. Choose VESA option that matches and continue to Step 6 on the next page.
Option A
Option B
Option C
Option D
VESA Mounting Hole Confi gurationsTV/large display Mounting Hole Confi gurations
