Omnimount Lift30 User Manual

7 of 14
888-61-054-W-00 rev. E • 10/13
4
Ø
3
ab
ENGLISH

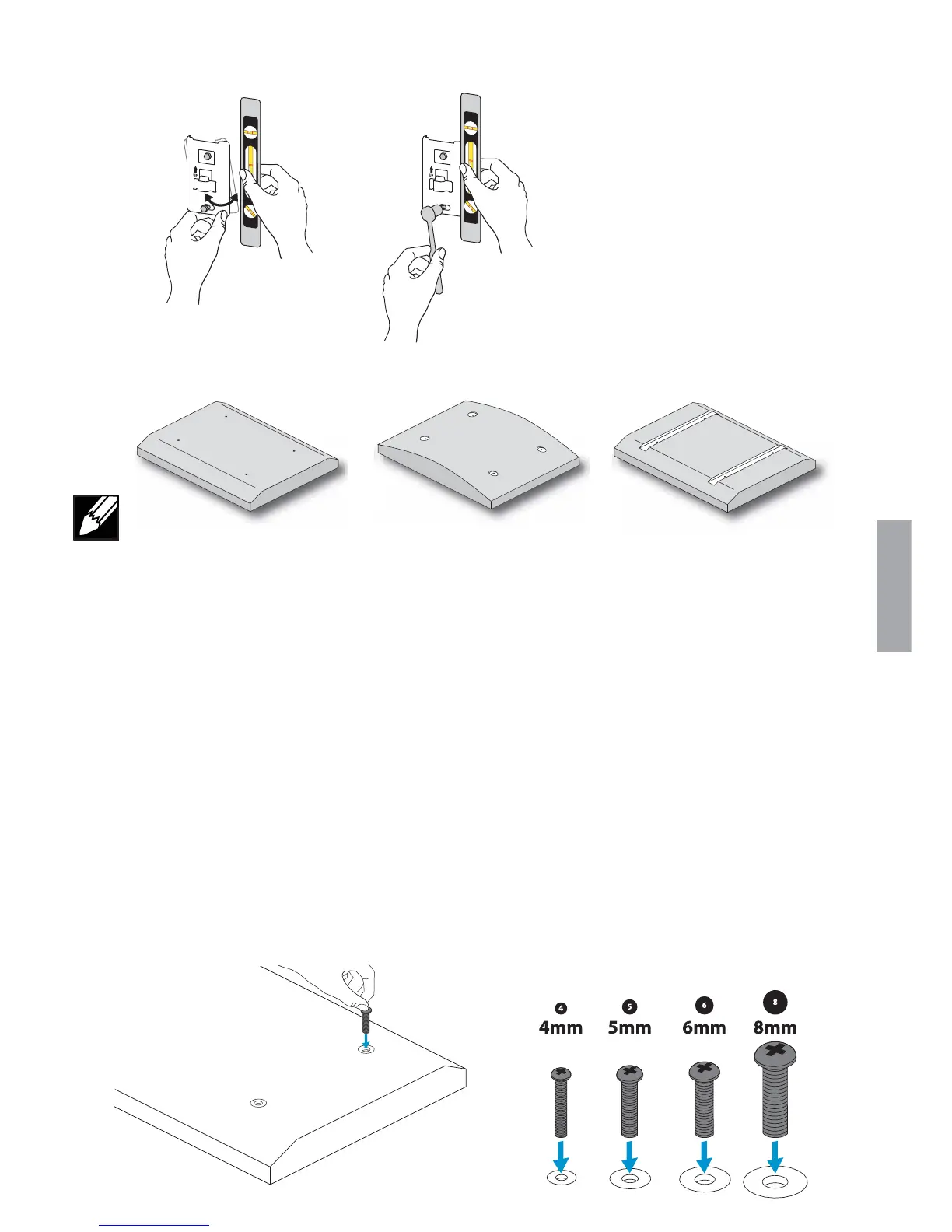

Determine TV/large display mount fasteners
NOTE: If a stand is already attached to your TV/large display, remove it according to TV/large display manu-
facturer directions. Place the display on a clean, fl at, padded surface or, if you prefer, lean the TV/large display against a
stable, vertical surface.
Several sizes of screws and spacers have been provided for mounting the Glide brackets to your TV/large display-
choose those that best match the depth and diameter of the mounting holes on the back of your TV/large display, along
with the design of the area surrounding the mounting holes (Flat, Curved or Inset).
TV/Display Style
If your TV/large display has a curved or inset mounting hole confi guration, you may need to use the provided spacers or
washers with the screws.
Hole Depth and Diameter
Four sets of display bracket screws have been provided, each of a different diameter: 4mm, 5mm, 6mm, and 8mm.
Compare the screws with the diameter of the mounting holes at the back of your TV/large display to fi nd the same size.
NOTE: Washer A is provided for use with the 4mm and 5mm screws while Washer B works with 6mm and 8mm screws.
Test screw diameters and lengths until you fi nd the right match to your TV/large
display.
Ensure the bracket is level.

Omnimount Lift30 Specifications

General

Mounting type	Wall
Maximum VESA mount	400 x 400 mm
Minimum VESA mount	100 x 100 mm
Maximum screen size	42 \
Minimum screen size	27 \
Maximum weight capacity	13.6 kg
Number of displays supported	1
Product color	Black
