Omnimount OC40FMX User Manual

8 of 15
888-61-279-W-01 rev. C • 04/19
3
a
b

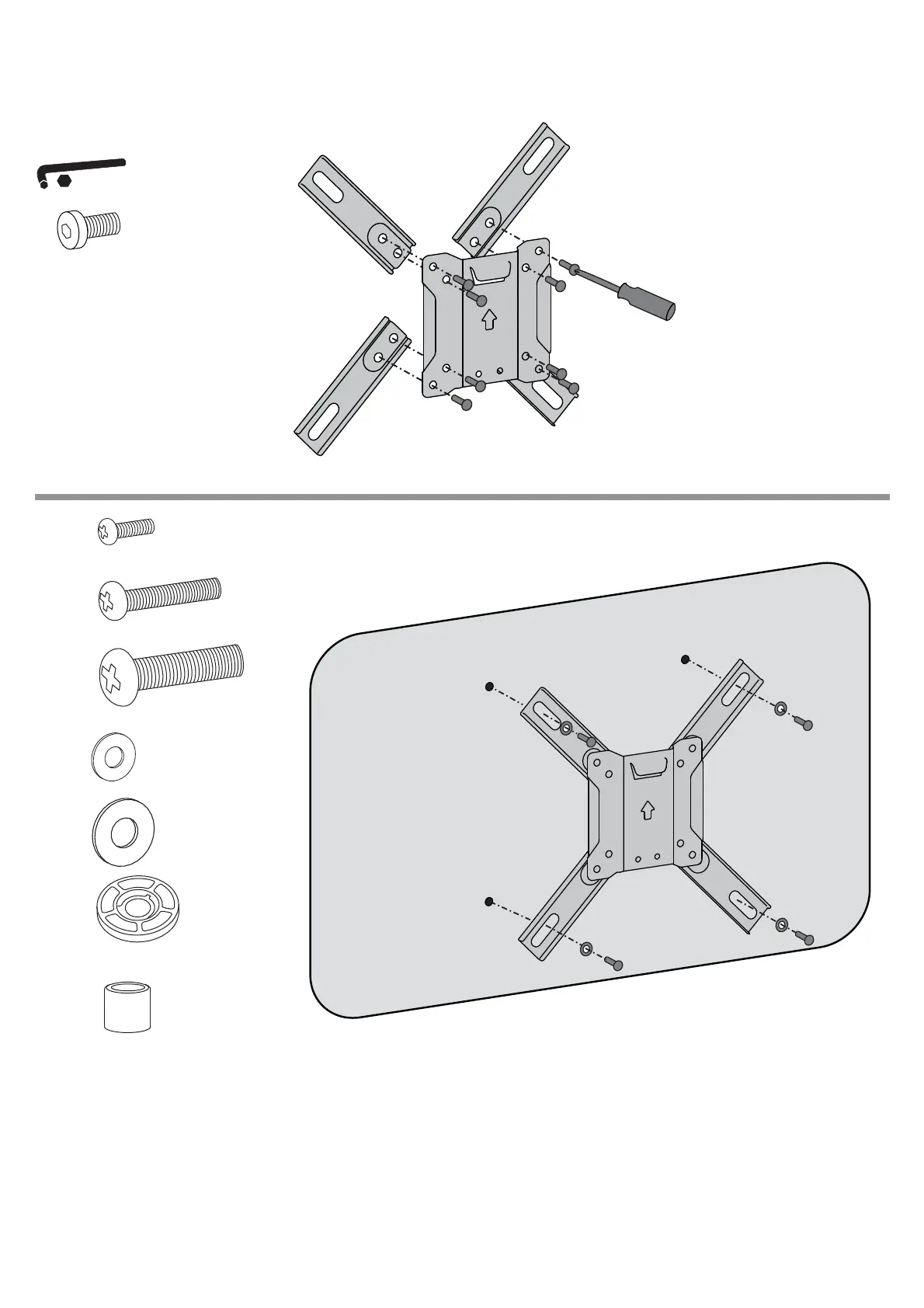

These extenders will allow you to mount TV’s with a 200mm x 200mm hole pattern. Attach each extender to the TV
plate using shown hardware. Once this step is complete, refer to the previous step for attaching the TV plate to the
TV.
4 mm
M6 x 8 mm
8x
M6
4x
M4
4x
M4/M6/M8 x 2.5 mm
M8 x 10 mm
4x
8x
M4 x 12 mm
M8 x 25 mm
M6 x 25 mm
4x
4x
4x

Omnimount OC40FMX Specifications

General

Mounting type	Wall
Maximum VESA mount	200 x 200 mm
Minimum VESA mount	75 x 75 mm
Maximum screen size	37 \
Minimum screen size	13 \
Maximum weight capacity	18.1 kg
Pan range	0 - 90 °
Tilt angle range	-5 - 15 °
Distance to the wall (max)	349 mm
Distance to the wall (min)	76 mm
Certification	UL
Product color	Black
Manual	Yes

Weight and Dimensions

Width	207 mm
Height	208 mm
