Omnimount OC40FMX User Manual

9 of 15
888-61-279-W-01 rev. C • 04/19
4
c
aa
b
b
Ø 7/32" (5,5 mm)
Ø 3/8" (9.5mm)

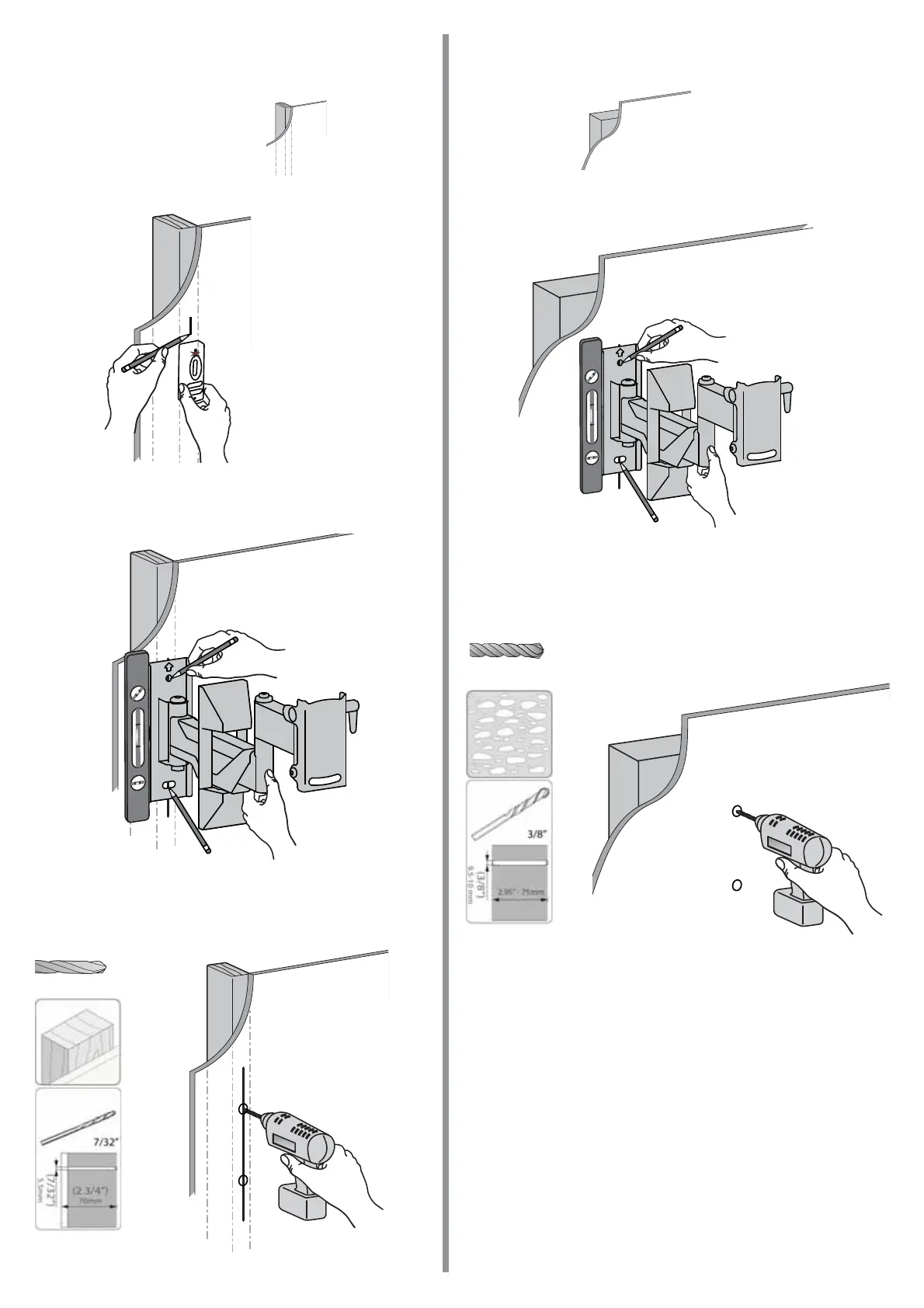

CONCRETE WALL INSTALLATION
WOOD STUD INSTALLATION
ﺔﯾﺑﺷﺧ ﺔﻣﺎﻋد
ﺔﻧﺎﺳرﺧ
COLUNA DE MADEIRA
CONCRETO
ДЕРЕВЯННАЯ СТОЙКА
БЕТОН
ASSE DI LEGNO
CEMENTO
HOLZPFOSTEN
MASSIVBETON
MONTANT DE BOIS
BÉTON
ESTRUCTURA DE MADERA
CONCRETO
WOOD STUD
CONCRETE

Omnimount OC40FMX Specifications

General

Mounting type	Wall
Maximum VESA mount	200 x 200 mm
Minimum VESA mount	75 x 75 mm
Maximum screen size	37 \
Minimum screen size	13 \
Maximum weight capacity	18.1 kg
Pan range	0 - 90 °
Tilt angle range	-5 - 15 °
Distance to the wall (max)	349 mm
Distance to the wall (min)	76 mm
Certification	UL
Product color	Black
Manual	Yes

Weight and Dimensions

Width	207 mm
Height	208 mm
