Omnimount OC80FM User Manual

PN:888-60-553-M-01 RevC
9

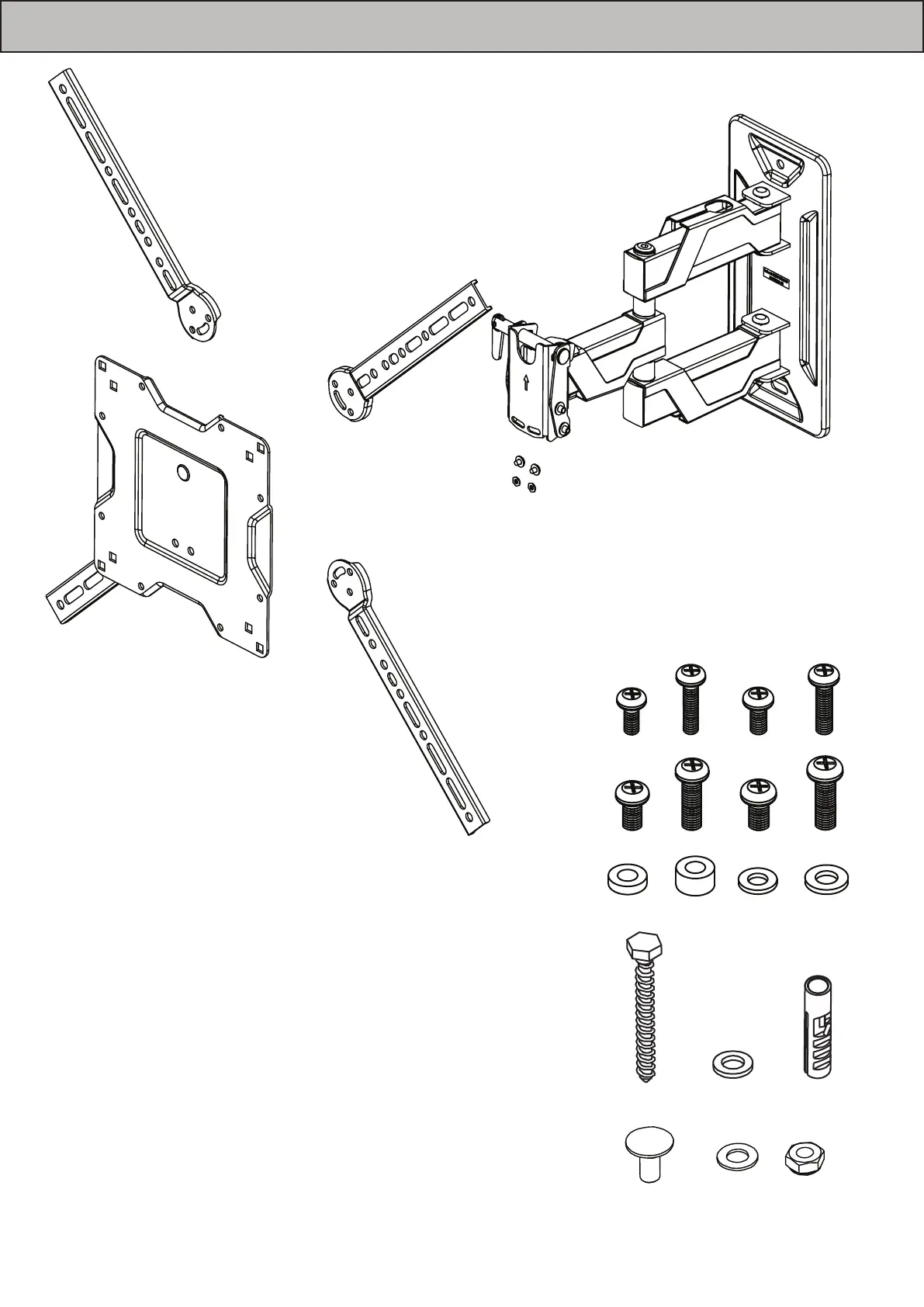

CONTENTS
M-A M-B M-C
W-A W-B
P-A
2
1
3
4
5
6
7
SCREWS/HARDWARE FOR PRODUCT
Part # Qty Description
P-A 8 Carraige Bolt
P-B 4 Washer
P-C 8 Nylock Nut
Contents
Part # Qty Description
1 1 Wall Plate
2 1 Arm Assembly (with cable management)
3 1 Monitor Plate
4 2 Monitor Plate Washer
5 2 Monitor Plate Screw
6 1 Tilt Tension Handle
7 4 Spider 46 Adapters
SCREWS/HARDWARE FOR
WALL MOUNTING
Part # Qty Description
W-A 2 Lag Bolt
W-B 2 Washer
W-C 2 Wall Anchor
M-D
M-E M-F M-G M-H
M-I M-J M-K M-L
W-C
P-B P-C

Omnimount OC80FM Specifications

General

Mounting type	Wall
Maximum VESA mount	600 x 400 mm
Minimum VESA mount	200 x 200 mm
Maximum screen size	63 \
Minimum screen size	37 \
Maximum weight capacity	36.3 kg
Pan range	0 - 180 °
Tilt angle range	-5 - 15 °
Distance to the wall (max)	357 mm
Distance to the wall (min)	82 mm
Certification	UL
Product color	Black
Manual	Yes

Weight and Dimensions

Width	239 mm
Height	280 mm
