Omnimount PLAY40 User Manual

PN:888-45-222-W-02: 45-284-026: OM1100549
CONTENTS
8mm
1/4” Drive
4x
Wall Kit ST8x2 697-641-00
Part Quantity Description
W-A 2 Lag Bolt
W-B 2 Round Washers
W-C 2 Wall Anchor
4x
4x
Specialty Hardware kit 697-640-00
Part Quantity Description
P-A 1 Philips Screw
P-B 4 Round Head Screws
P-C 8 Nuts
8x
8x
1x1x 1x
4x
8x
8x
1x1x 1x
4x
Screws/Hardware For Flat Panel 697-613-00
Part Quantity Description
M-A 4 Philips screws M4 x 15mm
M-B 4 Philips screws M4 x 30mm
M-C 4 Philips screws M5 x 15mm
M-D 4 Philips screws M5 x 30mm
M-E 4 Philips screws M6 x 15mm
M-F 4 Philips screws M6 x 30mm
M-G 4 Philips screws M8 x 15mm
M-H 4 Philips screws M8 x 30mm
M-I 4 Round spacers M6-M8 x 5mm
M-J 4 Round spacers M6-M8 x 10mm
M-K 4 Round washers M4-M5
M-L 4 Round washers M6-M8
4x
4x
4x
4x
4x
4x
4x
4x
4x
4x
4x
4x
4x

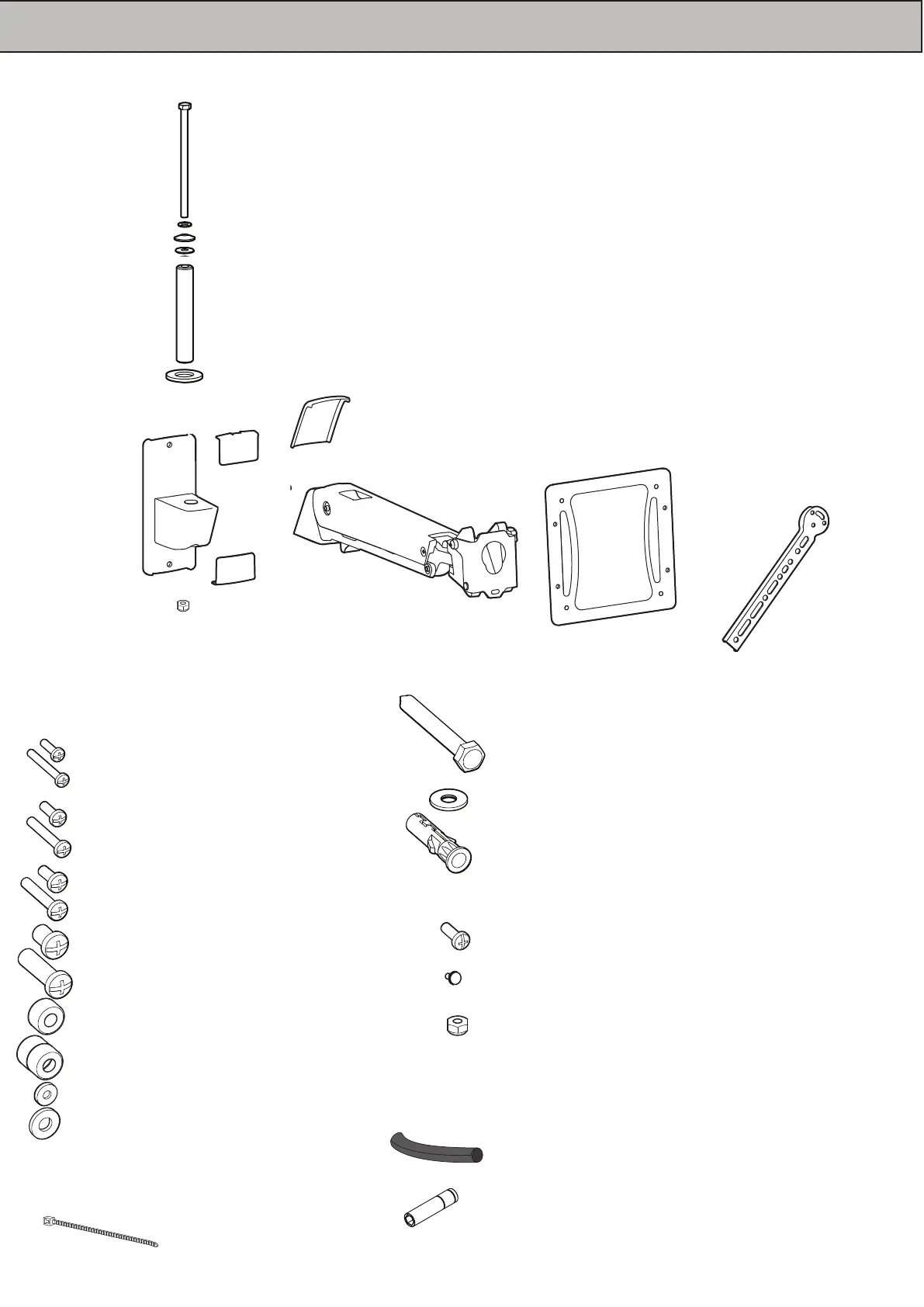

CONTENTS
Part Quantity Description
1 1 Wall Plate
2 1 Arm/Wall Plate Hardware
3 2 Wall Plate Covers
4 1 Rear Arm Cover
5 1 CFT Arm
6 1 200x200 VESA Monitor Plate
7 4 Spider Adapters
1
2
3
4
5
6
7
8x
8x
1x1x 1x
4x
Cable Wrap Kit 697-701
Part Quantity Description
P-D 1 Cable Wrap
BOP 699-633
Part Quantity Description
P-L 2 Zip Ties
P-E
P-I
P-J
P-H
P-G
P-F
P-K
8mm
1/4” Drive
P-M

Omnimount PLAY40 Specifications

General

Mounting type	Wall
Maximum VESA mount	600 x 400 mm
Minimum VESA mount	200 x 100 mm
Maximum screen size	55 \
Minimum screen size	30 \
Maximum weight capacity	18.2 kg
Pan range	0 - 180 °
Tilt angle range	-15 - 10 °
Product color	Aluminium, Black
Manual	Yes
