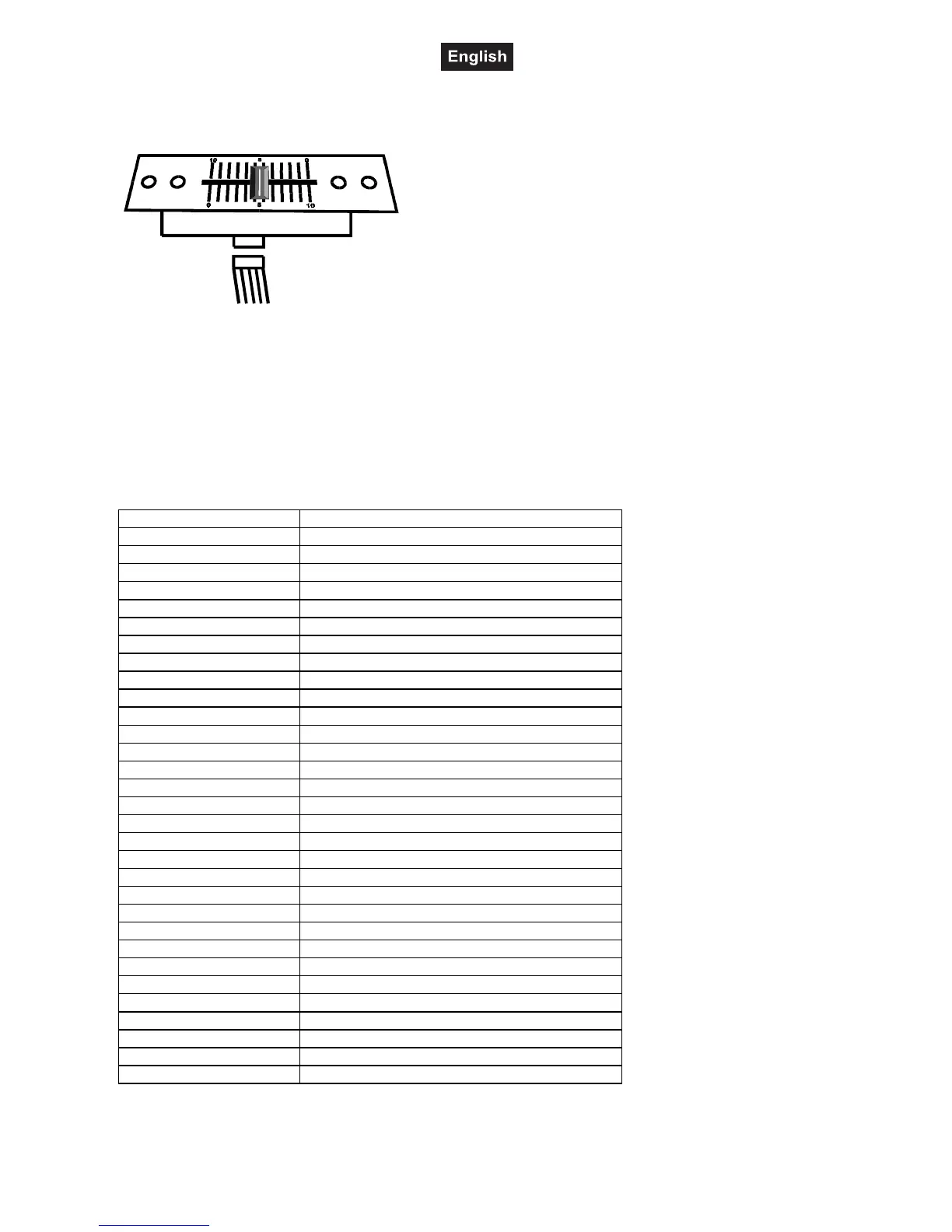

7. REPLACING THE CROSSFADER
Instructions for replacing the crossfader:
• Remove the fader knob.
• Remove the two outer screws on the fader-panel.
• Take the fader out and unplug the connection-cable.
• Connect the new fader and fix it in the device.
The fader-panel of the replacement-crossfader cannot be used for the Design-version. In order to exchange
the fader-panels, additionally unscrew the 2 inner screws and exchange the two fader-panels.
8. TECHNICAL SPECIFICATIONS
Power supply: 230 V/50 Hz
115 V/60 Hz
Power consumption: 18 W
Inputs: 3 phono, 4 line, 3 aux, 2 mic
Minimum input voltage:
Microphone: 3 mV RMS, 10 kOhms
Phono: 1.2 mV RMS, 47 kOhms
Line: 78 mV RMS, 10 kOhms
Output power:
Line: 9 V RMS max.
Headphones: 0.5 V
Headphones impedance: 47 Ohms
Outputs: 2 Master-Out, 1 Rec-Out, 1 Booth-Out via RCA
Master 1 Out: via 2 additional, balanced XLR-connectors
Frequency range:
Microphone: 40 - 15,000 Hz, ± 0.5 dB
Phono: 20 - 20,000 Hz, ± 1 dB
Line: 20 - 20,000 Hz, ± 0.5 dB
Distortion: < 0.01 %
S/N-ratio:
Microphone: > 80 dB
Phono: > 78 dB
Line: > 88 dB
Talkover-attenuation: -15 dB
Tone control:
Treble: 20 Khz -30 dB to +15 dB
Middle: 1.2 KHz -30 dB to +15 dB
Bass: 40 Hz -30 dB to +15 dB
Dimensions: 482 x 242 x 108 mm
19"-dimensions with 5 u
Weight: 4.8 kg
Replacement crossfader: No. 10007190
Please note: errors and omissions for every information given in this manual excepted. Every
information is subject to change without prior notice. Any claim due to missing or wrong information
in this manual is herewith excluded! 2/99 ©
