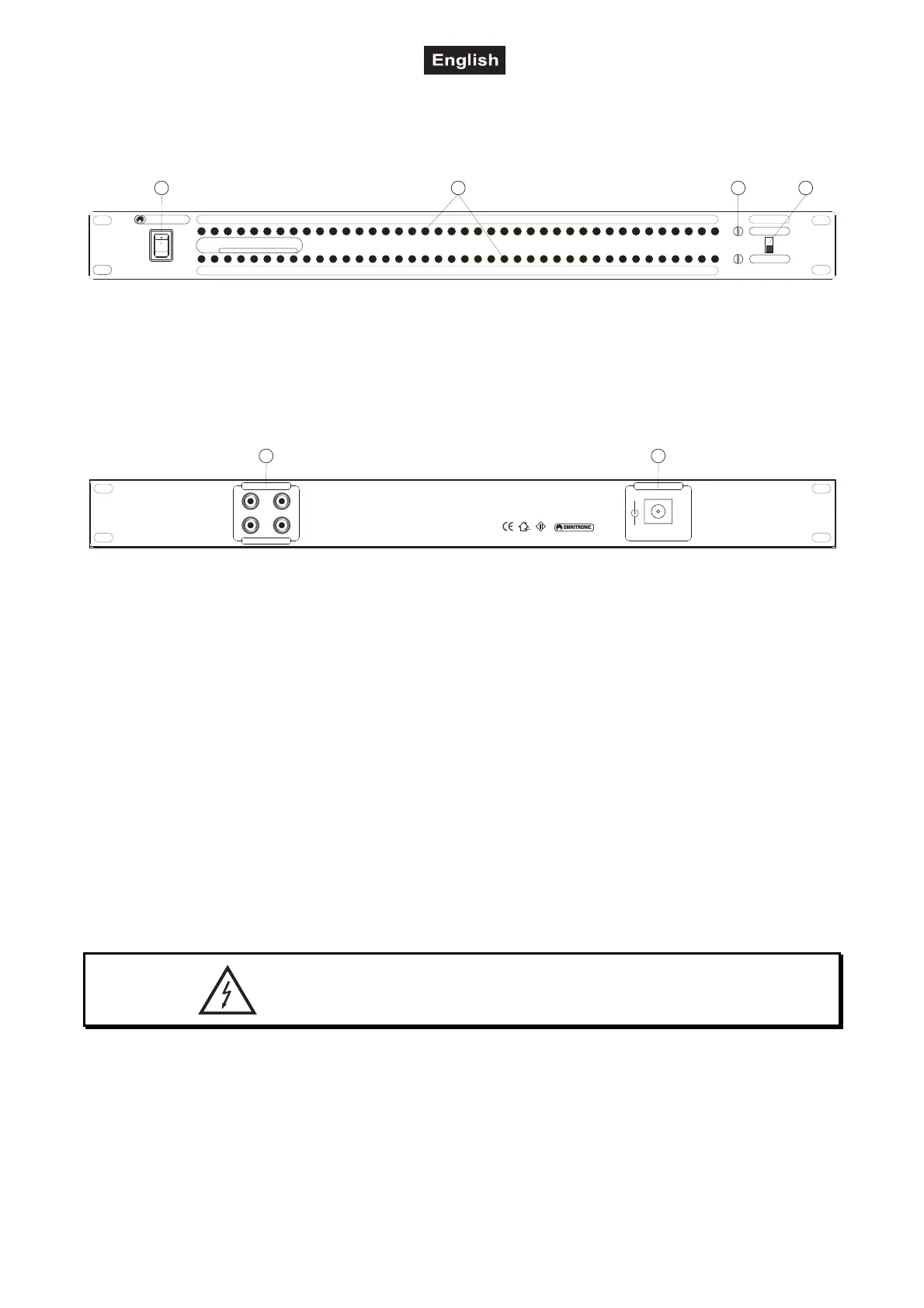

5. DESCRIPTION OF THE DEVICE
5.1 Frontpanel
1 2 3 4
BAR
ADJUST
POWER
OMNITRONIC
-57dB -54dB -51dB -48dB -45dB -42dB -39dB -36dB -33dB -30dB -27dB -24dB -21dB -18dB -15dB -12dB -9dB -6dB -3dB 0dB
-57dB -54dB -51dB -48dB -45dB -42dB -39dB -36dB -33dB -30dB -27dB -24dB -21dB -18dB -15dB -12dB -9dB -6dB -3dB 0dB
DISPLAY MODE
DB-100
LEVEL C ONTROL DISPL AY
FALLING DO TS
L
R
(1) Power switch
(2) Decibel display
(3) Adjust screw
(4) Dot/Bar-selector
5.2 Rearpanel
5 6
Vor Gebrauch Anleitung lesen. Gerät vorFeuchtigkeit schützen! Niemals
das Gerät öffnen! Im Geräteinnern befinden sich keine zu wartenden
Teile. Wartungs-und Servicearbeiten nur durch autorisierten Fachhandel!
Read user manual before use. Keep away from moisture! Never open the
housing! There are no serviceable parts inside the device. Maintenance
and service operations only by authorized dealers.
Typ/Type: DB-100
Spannungsversorgung/Power supply: 9-12 V AC, 400 mA
Gesamtanschlusswert/Power consumption: 5 W
MADE IN CHINA
OMNITRONIC
®
www.omnitronic.com
OMNITRONIC SHOWEQUIPMENT GmbH, GERMANY
AUDIO
IN OUT
R
LL
R
AC INPUTAC INPUT
AC 9V-12VAC 9V-12V
400mA MIN.400mA MIN.
+
-
(5) Connectors
(6) AC In-socket
6. OPERATION
Switch the device on via the power switch.
As soon as the Audio-signals are present the signal level is displayed.
For fine-adjustment of the level meter turn the Adjust-screws using a screwdriver.
Select the desired mode via the Dot/Bar-selector. In the Bar-mode, all LEDs between -57 dB and 0 dB are
illunated up to the maximum level. In the Dot-mode, only two LEDs are lit and move with the audio-level to
the right and to the left.
7. CLEANING AND MAINTENANCE
Disconnect from mains before starting maintenance operation!
DANGER TO LIFE!
We recommend a frequent cleaning of the device. Please use a soft lint-free and moistened cloth. Never use
alcohol or solvents!
There are no servicable parts inside the device. Maintenance and service operations are only to be carried
out by authorized dealers.
Should you need any spare parts, please use genuine parts.
Should you have further questions, please contact your dealer.
