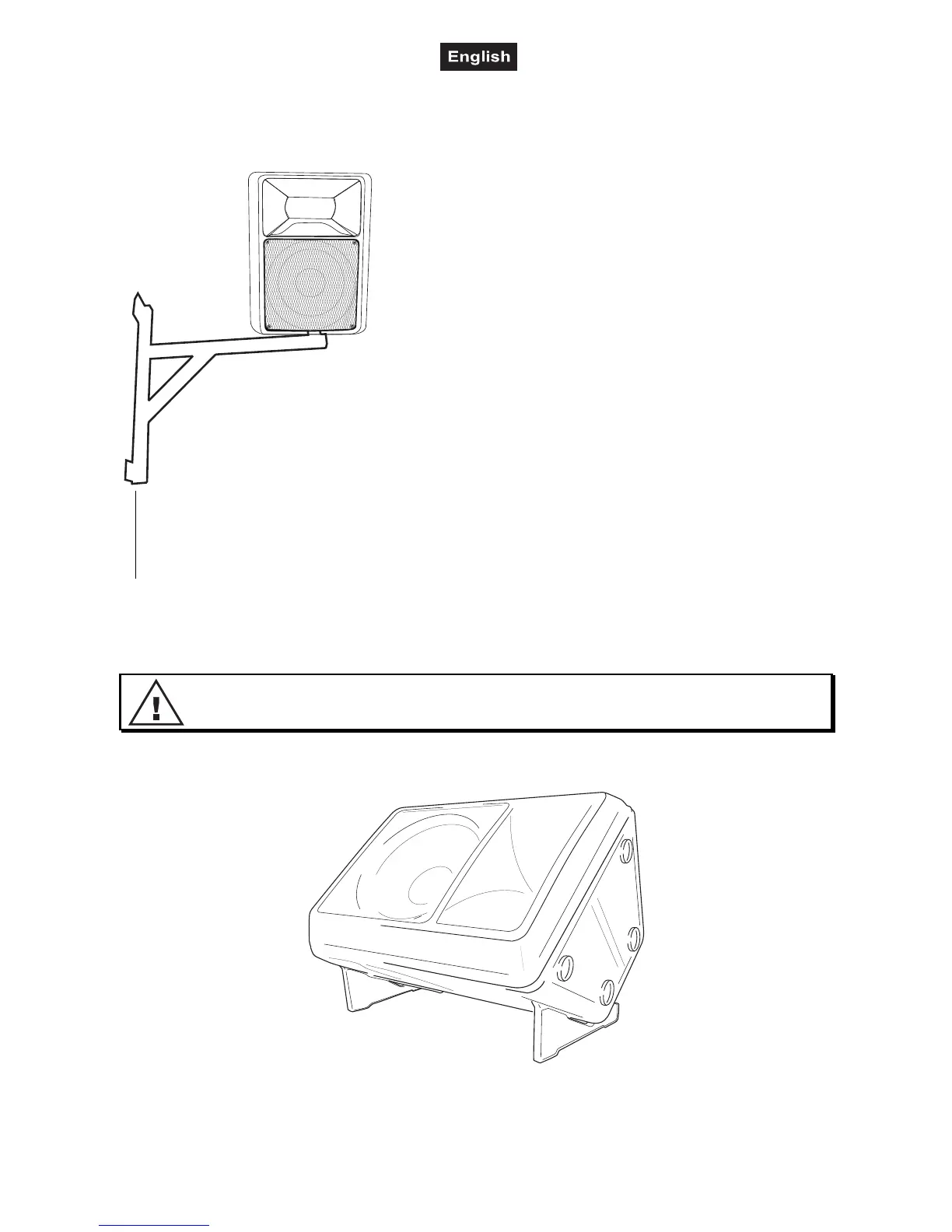

Installation on a wall-mounting
The speaker-system may only be installed on a wall-mounting if the original speaker-system is equipped with
an appropriate flange.
Before attaching the speaker-system, make sure that the
installation area can hold a minimum point load of 5 times the
installation‘s weight (e.g. 20 kg weight – 100 kg point load).
The durability of the installation depends very much on the material
used at the installation area (building material) such as wood,
concrete, gas concrete, brick etc. This is why the fixing material
must be chosen to suit the wall material. Always ask a specialist for
the correct plug/screw combination indicating the maximum load
and the building material.
The wall-mounting must always be installed via all fixation holes.
Do only use appropriate screws and make sure that the screws are
properly connected with the ground.
Procedure:
Step 1: On the wall-mounting, there are 4 holes for the installation.
Step 2: Hold the wall-mounting onto the location where it is to be installed.
Step 3: Mark the boreholes with a pen or a suitable tool.
Step 4: Drill the holes.
Step 5: Hold the wall-mounting in the desired position and tighten the screws.
Step 6Install the speaker-system on the wall-mounting.
The wall mounting‘s maximum service life must never be exceeded.
Suspended installation
This speaker-system must never be suspended – Danger to Life due to crashing
speaker-systems!
Installation as floor monitor
Attach both monitor feet (except KB-208A) at the rear end of the box.
