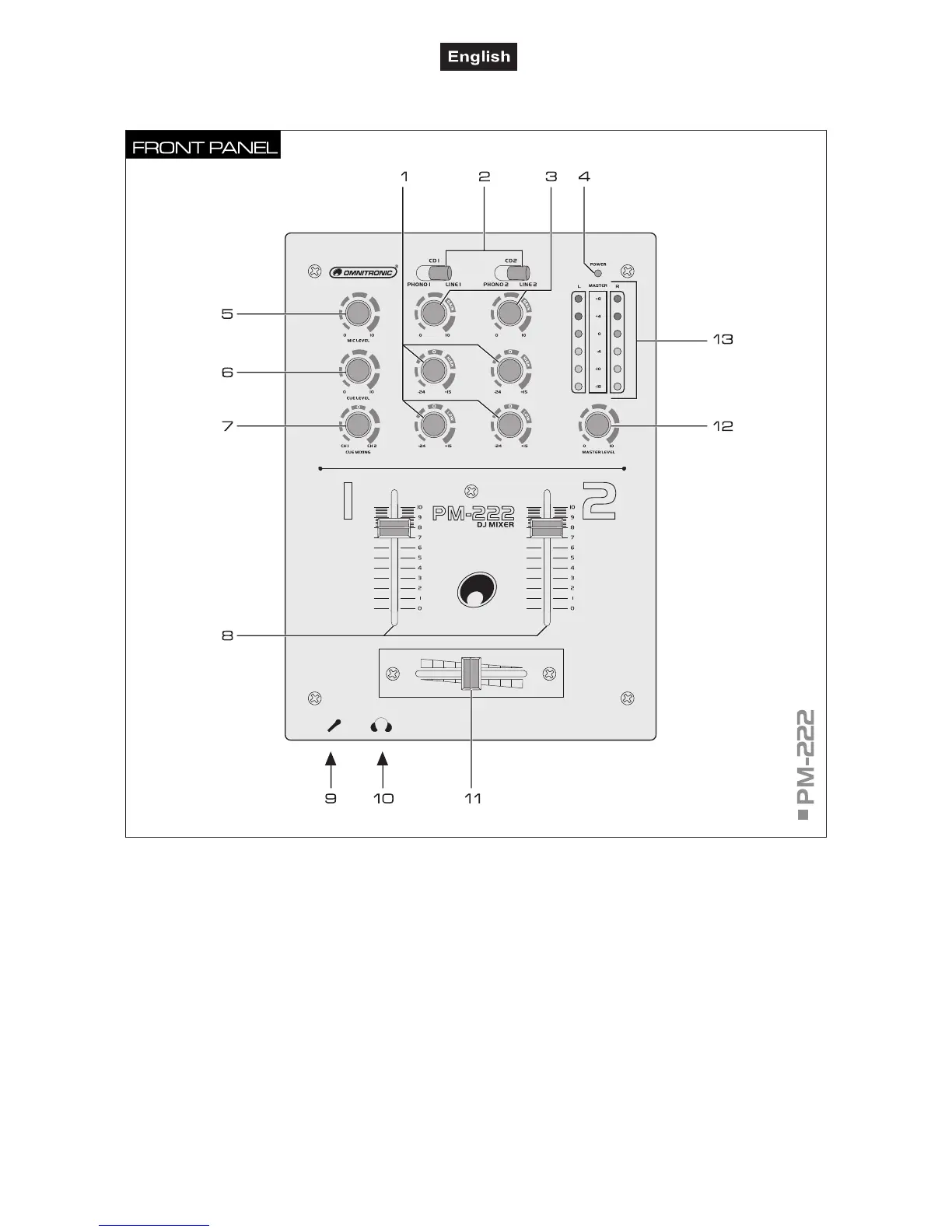

4.2 Operating elements and connections
Tone controls
2-band equalizers for channels 1 and 2: HIGH and LOW.
2 Input selector switches
For selecting the input source for channels 1 and 2.
3 Gain controls
Adjust the input amplification for channels 1 and 2.
4 Power indicator
5 Level control
the DJ microphone
6 Level control for the headphones output
7 Control CUE MIXING
Fades between channel 1 and channel 2 for the
headphones output.
Channel faders
Level controls for channels 1 and 2.
9 Microphone input
6.3 mm jack for connecting a DJ microphone.
10 Headphones input
6.3 mm jack for connecting stereo headphones.
11 Crossfader
For crossfading between channel 1 and channel 2.
12 Master level control
13 Output level LED meter
6-digit LED meter for the stereo master signal within the
range of -18 dB to +8 dB.
