OMP Hobby M1 - Step 6: Frame and Canopy Assembly

11
EN
WWW.OMPHOBBY.COM
step 6 步骤六
先将机身左右侧板和倾斜盘相位座预组装，暂时不用锁螺丝。
倾斜盘相位座
圆柱头内六角螺丝
M1.6x4mm
Socket screw
圆柱头内六角螺丝
M1.6x4mm
Socket screw
半圆头十字自攻牙螺丝
ST1.4x6mm
Socket screw
半圆头十字自攻牙螺丝
ST1.4x6mm
Socket screw
半圆头十字自攻牙螺丝
ST1.4x4mm
Socket screw
机壳固定柱
Canopy Support
圆柱头内六角螺丝
(M1.6x4mm)x4
Socket screw
半圆头十字自攻牙螺丝
(ST1.4x6mm)-7
Socket screw
半圆头十字自攻牙螺丝
(ST1.4x4mm)-1
Socket screw

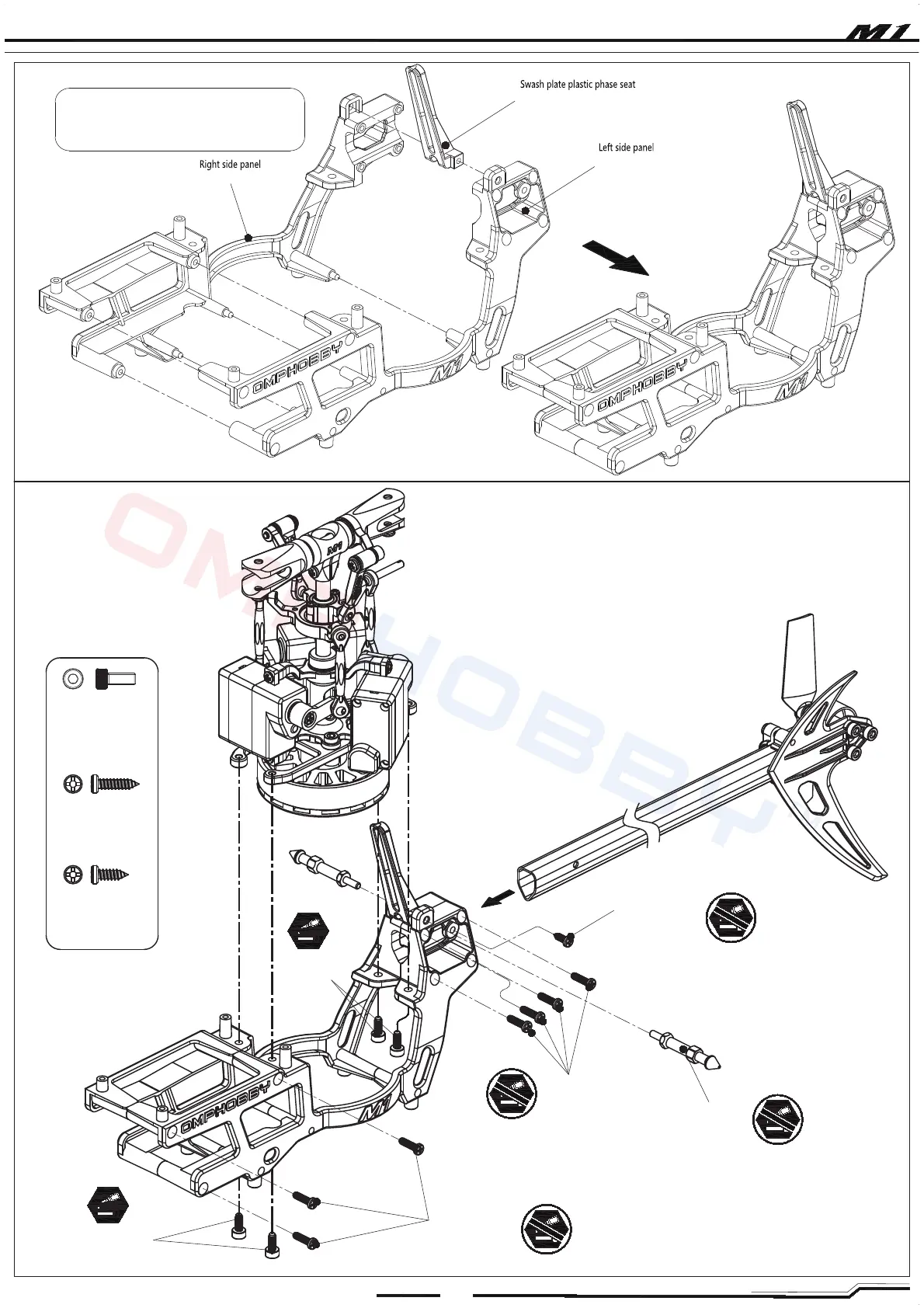

pre-assemble the fuselage left and right side plates and tilt plate
phase seats without locking screws temporarily.
机身左侧板
机身右侧板
