OMP Hobby M2 Explore - Assembly Step 2: Motor and Main Shaft; Motor Mount and Spindle Assembly; Main Shaft and Bearing Installation

7
EN
WWW.OMPHOBBY.COM

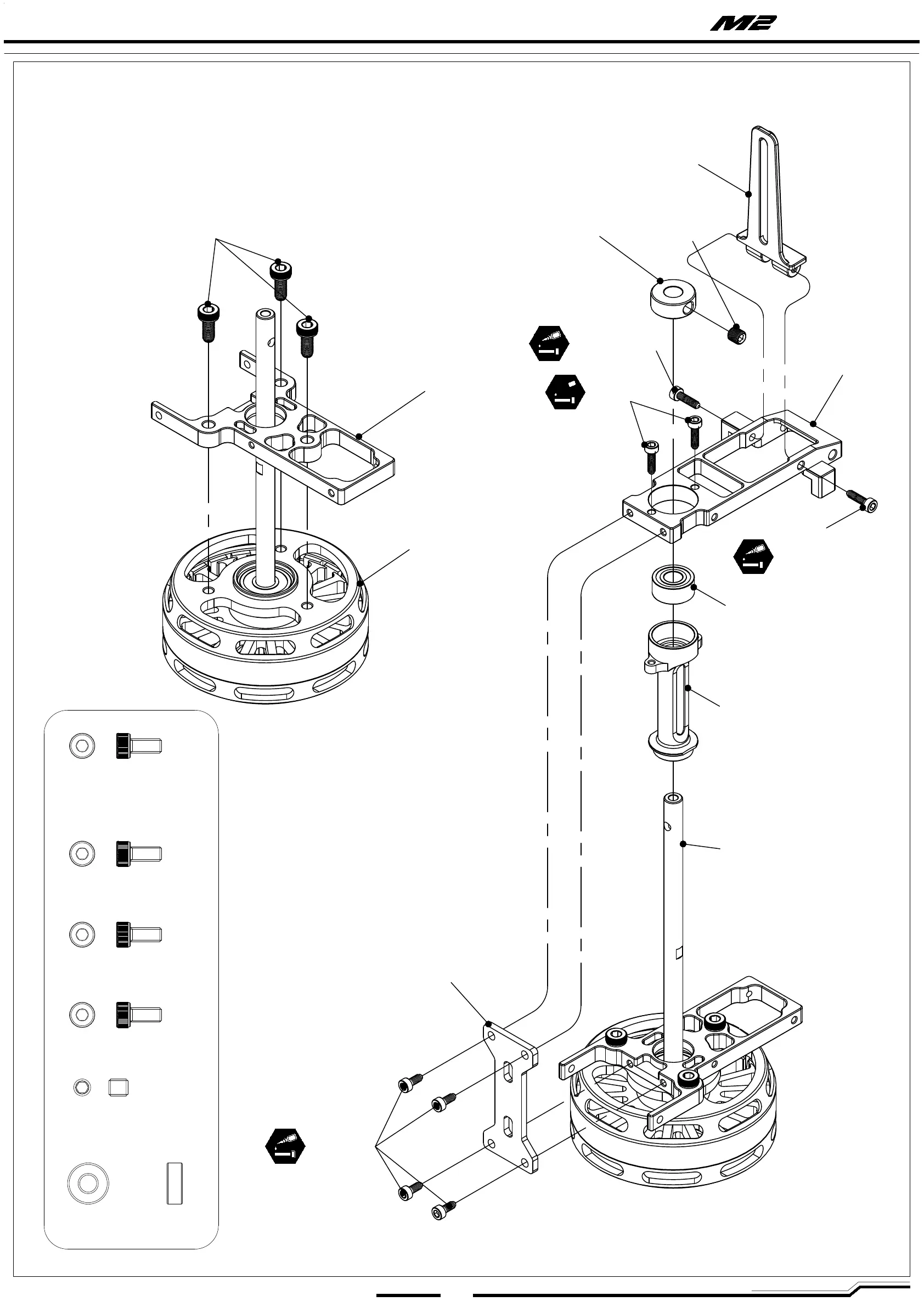

step 2 步骤二
圆柱头内六角螺丝 (M2.5x7mm)x3
圆柱头内六角螺丝 (M1.6x6mm)x2
圆柱头内六角螺丝 (M1.6x4mm)x6
基米螺丝
( M3X 2.5)x1
轴承 (Ø4xØ9x3mm)x1
Socket screw
Socket screw
Socket screw
Socket screw
Bearing-684ZZ
主电机
Main Motor
主电机固定座
Motor Mount
圆柱头内六角螺丝
M2.5x7mm
Socket screw
倾斜盘塑胶相位座
主轴固定环
基米螺丝 M3X 2.5
Socket screw
Spindle retaining ring
圆柱头内六角螺丝
M1.6x6mm
Socket screw
圆柱头内六角自攻牙螺丝
ST1.7x8mm
Hexagon socket head
tapping screw
舵机固定座
Steering gear mount
滚珠轴承
(Ø4xØ9x4mm)x1
主轴同心度保持柱
主轴
Main Shaft
Bearing-684ZZ
Concentricity retention column
机身中间加强板
圆柱头内六角螺丝
M1.6x4mm
Hexagon socket head
cap screw
圆柱头内六角自攻牙螺丝
ST1.7x8mm
Hexagon socket head
tapping screw
圆柱头内六角自攻牙螺丝
(ST1.7x8mm)X2
Hexagon socket head
tapping screw
-EXPLORE
