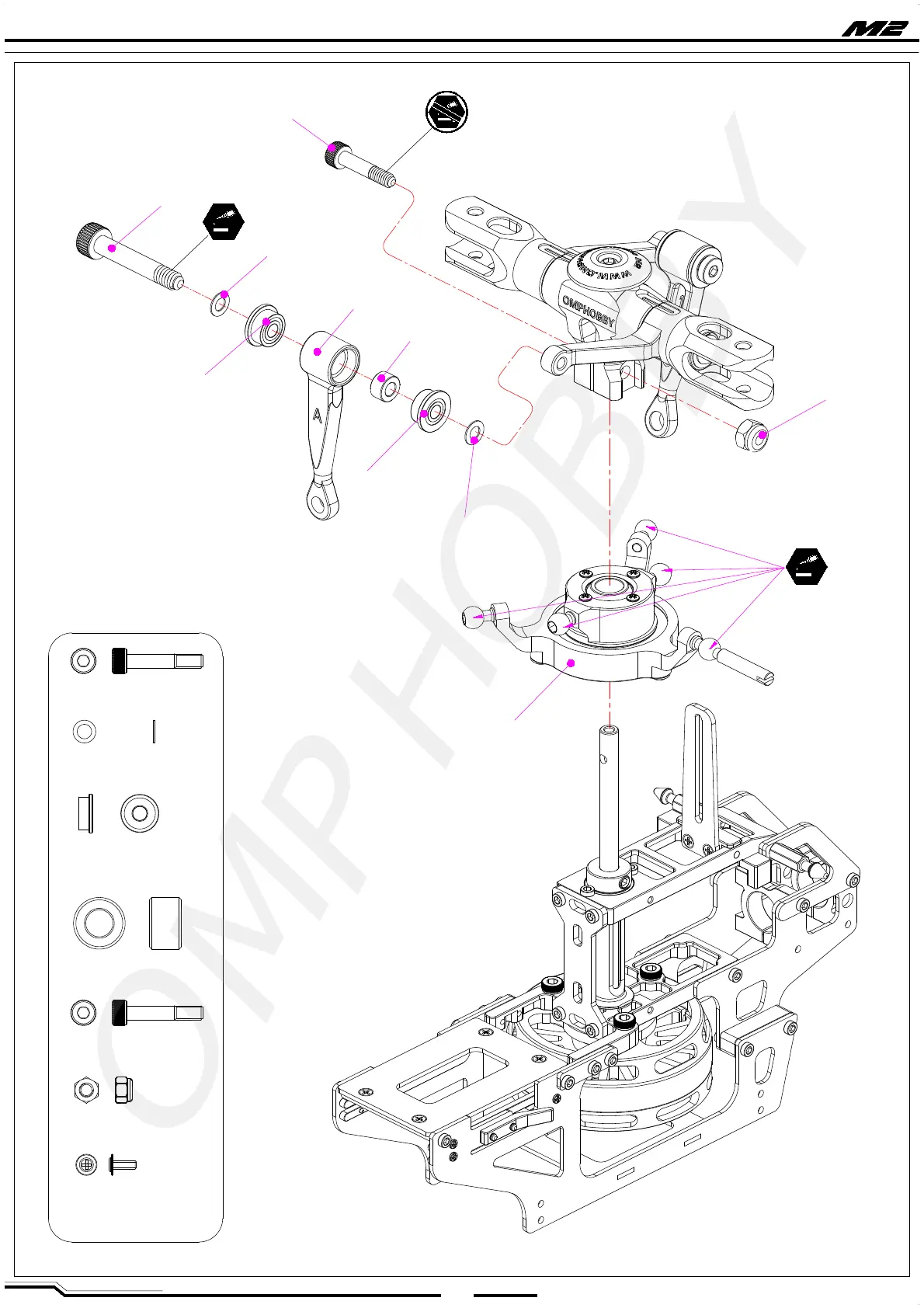

OMP Hobby M2 - Step 5: Pitch Control and Swashplate Assembly

10
EN
WWW.OMPHOBBY.COM
step 5 步骤五
圆柱头内六角螺丝 (M2x10mm-L2.5)x2
垫片 (Ø2.1xØ3.6x0.2mm)x4
滚珠轴承( Ø2xØ5x2.5mm)x4
铜套( Ø2.xØ3.9x2.2mm)X2
滚珠轴承
Ø2xØ5x2.5mm
圆柱头内六角螺丝
M2x10mm-L2.5
垫片
Ø2.1xØ3.6x0.2mm
滚珠轴承
Ø2xØ5x2.5mm
主螺距控制臂
铜套 Ø2.xØ3.9x2.2mm
垫片
Ø2.1xØ3.6x0.2mm
圆柱头内六角螺丝
M2x10mm-L4
M2 防松螺母
圆柱头内六角螺丝 (M2x10mm-L4)x1
M2 防松螺母 (M2)x1
半圆头内十字机械牙半牙螺丝
(M1.4x4-L2)x4
Socket screw
Socket screw
Socket screw
Washer
Flange bearing MF52ZZ
Copper sets
M2 Nut
Socket screw
Socket screw
Washer
Flange bearing MF52ZZ
Main Pitch Control Arm
Copper sets
Flange bearing MF52ZZ
Washer
M2 Nut
倾斜盘
Swash plate
O
