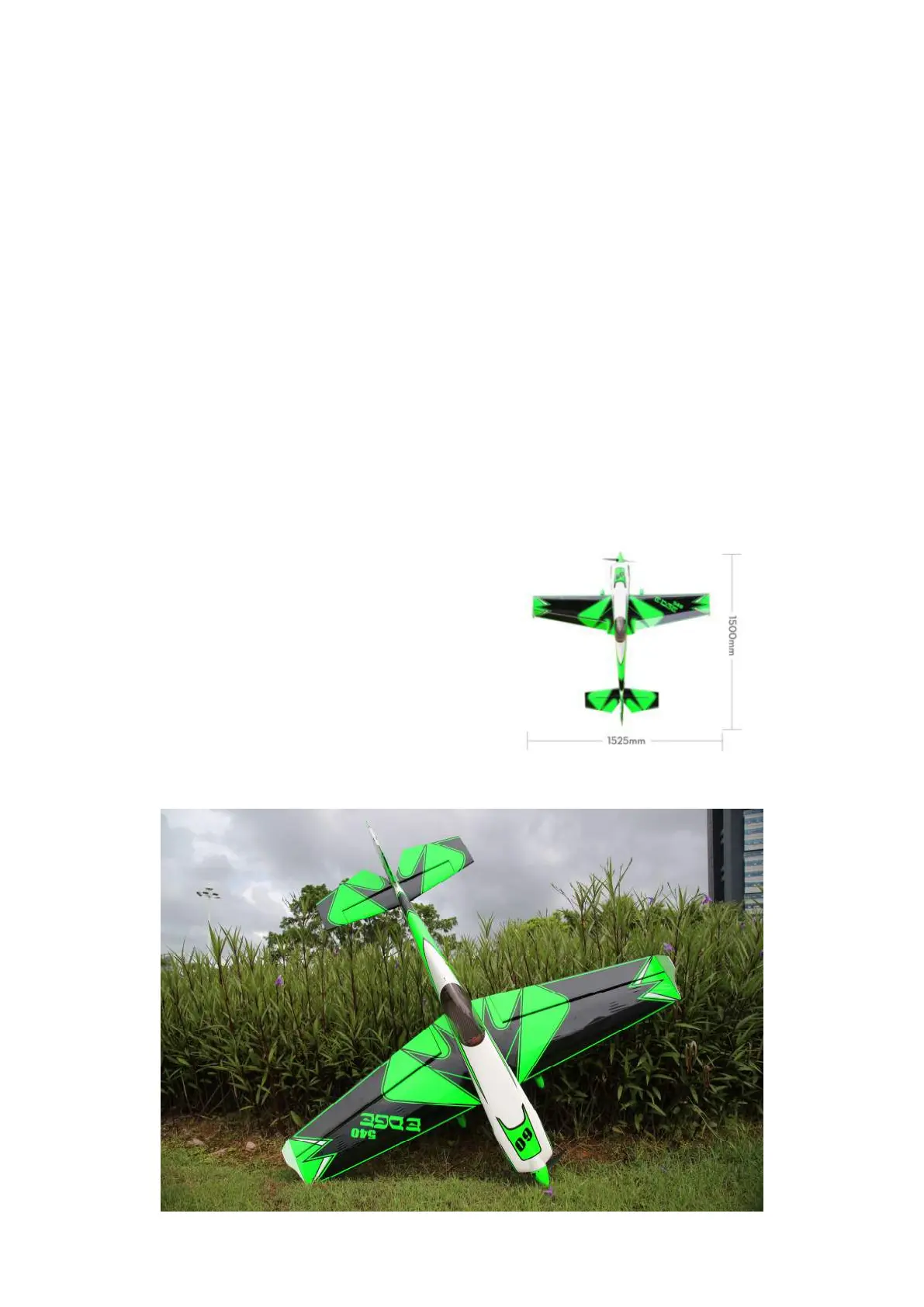

OMP Hobby OMPHOBBY - Page 3

OMPHobby 60” Balsa Airplane
Zhuhai Edge Smart Drive Technology Co., Ltd.
www.omphobby.com
Parameter Specification
Item: OMPHOBBY 60”EDGE 540 Color Option
Green-Black
Red-White
Yellow-White
Orange-White
WingSpan: 1524mm(61in) Full Length: 1500mm(60in)
Flight Weight: 2.75~2.85KG
The Center of
Gravity (CG):
Approx.86-95mm
Wing Area:
42.32d㎡
Wing Load:
64.98~67.34g/d㎡
Wing Angle of
Incidence:
0°
Motor Thrust
Angles:
Down 0° & Right 2.8°
Pack Dimension 130*44*22 (L*H*W)cm Gross Weight: 10KG
Servo: 13~15 Kg.cm*4 (Aileron*2,Elevator*1, Rudder*1)
Electric Power (Recommended):
Option 1: Option2:
Motor:
X4120 550KV 4125 515KV
ESC:
80-100A 100A
Propeller: Eolo 15x8 Eolo 16x8
Lipos: 6s 3300mah-4000mah 6s 3300mah-4000mah
