Omron C200H Series User Manual

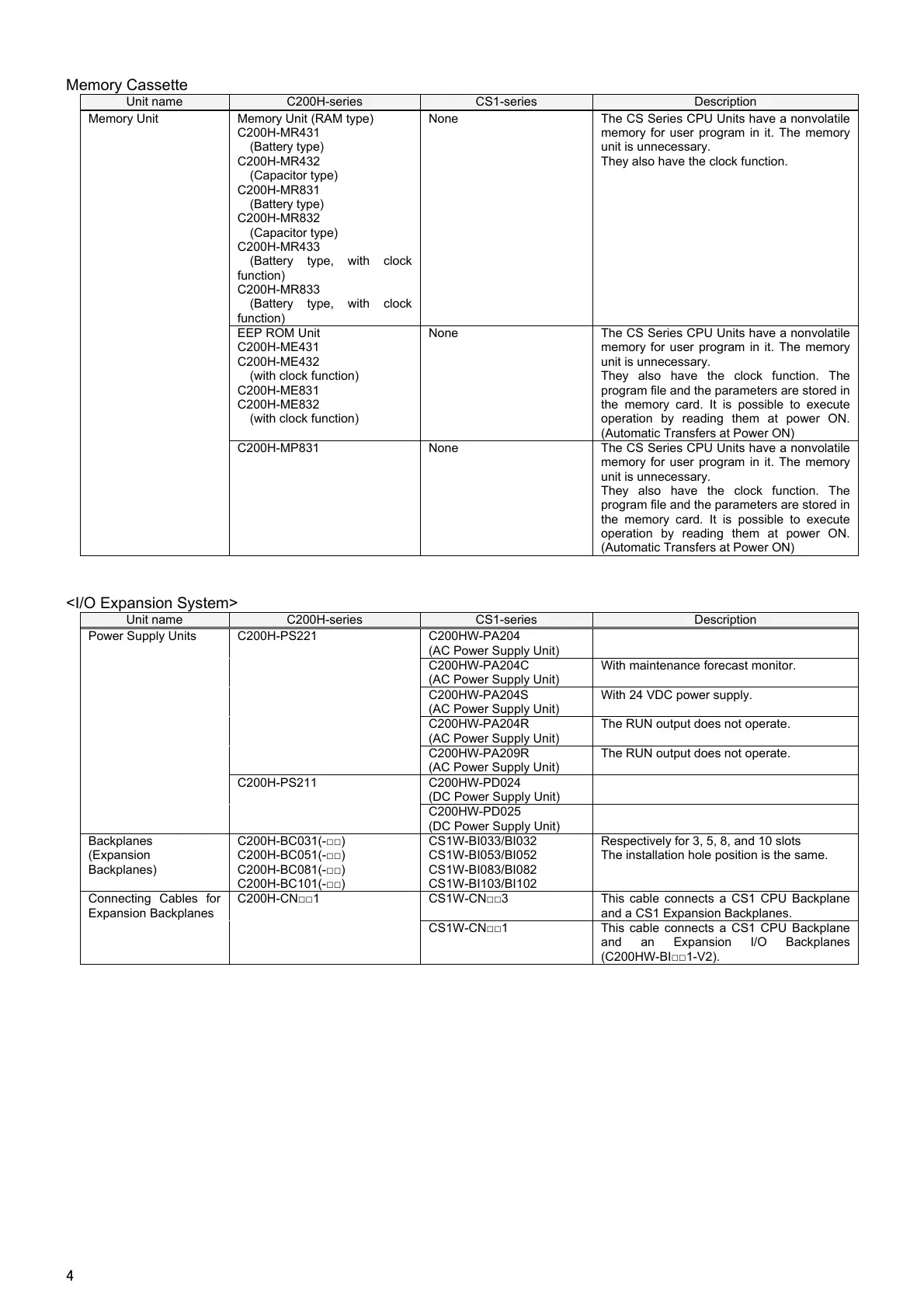

Memory Cassette
Unit name C200H-series CS1-series Description
Memory Unit Memory Unit (RAM type)
C200H-MR431
(Battery type)
C200H-MR432
(Capacitor type)
C200H-MR831
(Battery type)
C200H-MR832
(Capacitor type)
C200H-MR433
(Battery type, with clock
function)
C200H-MR833
(Battery type, with clock
function)
None The CS Series CPU Units have a nonvolatile
memory for user program in it. The memory
unit is unnecessary.
They also have the clock function.
EEP ROM Unit
C200H-ME431
C200H-ME432
(with clock function)
C200H-ME831
C200H-ME832
(with clock function)
None The CS Series CPU Units have a nonvolatile
memory for user program in it. The memory
unit is unnecessary.
They also have the clock function. The
program file and the parameters are stored in
the memory card. It is possible to execute
operation by reading them at power ON.
(Automatic Transfers at Power ON)
C200H-MP831 None The CS Series CPU Units have a nonvolatile
memory for user program in it. The memory
unit is unnecessary.
They also have the clock function. The
program file and the parameters are stored in
the memory card. It is possible to execute
operation by reading them at power ON.
(Automatic Transfers at Power ON)
<I/O Expansion System>
Unit name C200H-series CS1-series Description
Power Supply Units C200H-PS221 C200HW-PA204
(AC Power Supply Unit)
C200HW-PA204C
(AC Power Supply Unit)
With maintenance forecast monitor.
C200HW-PA204S
(AC Power Supply Unit)
With 24 VDC power supply.
C200HW-PA204R
(AC Power Supply Unit)
The RUN output does not operate.
C200HW-PA209R
(AC Power Supply Unit)
The RUN output does not operate.
C200H-PS211 C200HW-PD024
(DC Power Supply Unit)
C200HW-PD025
(DC Power Supply Unit)
Backplanes
(Expansion
Backplanes)
C200H-BC031(-□□)
C200H-BC051(-□□)
C200H-BC081(-□□)
C200H-BC101(-□□)
CS1W-BI033/BI032
CS1W-BI053/BI052
CS1W-BI083/BI082
CS1W-BI103/BI102
Respectively for 3, 5, 8, and 10 slots
The installation hole position is the same.
Connecting Cables for
Expansion Backplanes
C200H-CN□□1 CS1W-CN□□3 This cable connects a CS1 CPU Backplane
and a CS1 Expansion Backplanes.
CS1W-CN□□1 This cable connects a CS1 CPU Backplane
and an Expansion I/O Backplanes
(C200HW-BI□□1-V2).
󲨬

Omron C200H Series Specifications

General

Humidity	10% to 90% RH (non-condensing)
Programming Language	Ladder Diagram, Instruction List
Communication Ports	RS-232C, RS-422/485
Operating Temperature	0 to 55°C (32 to 131°F)
Mounting	DIN rail
Type	Programmable Logic Controller (PLC)
Power Supply	100 to 240 VAC, 24 VDC
