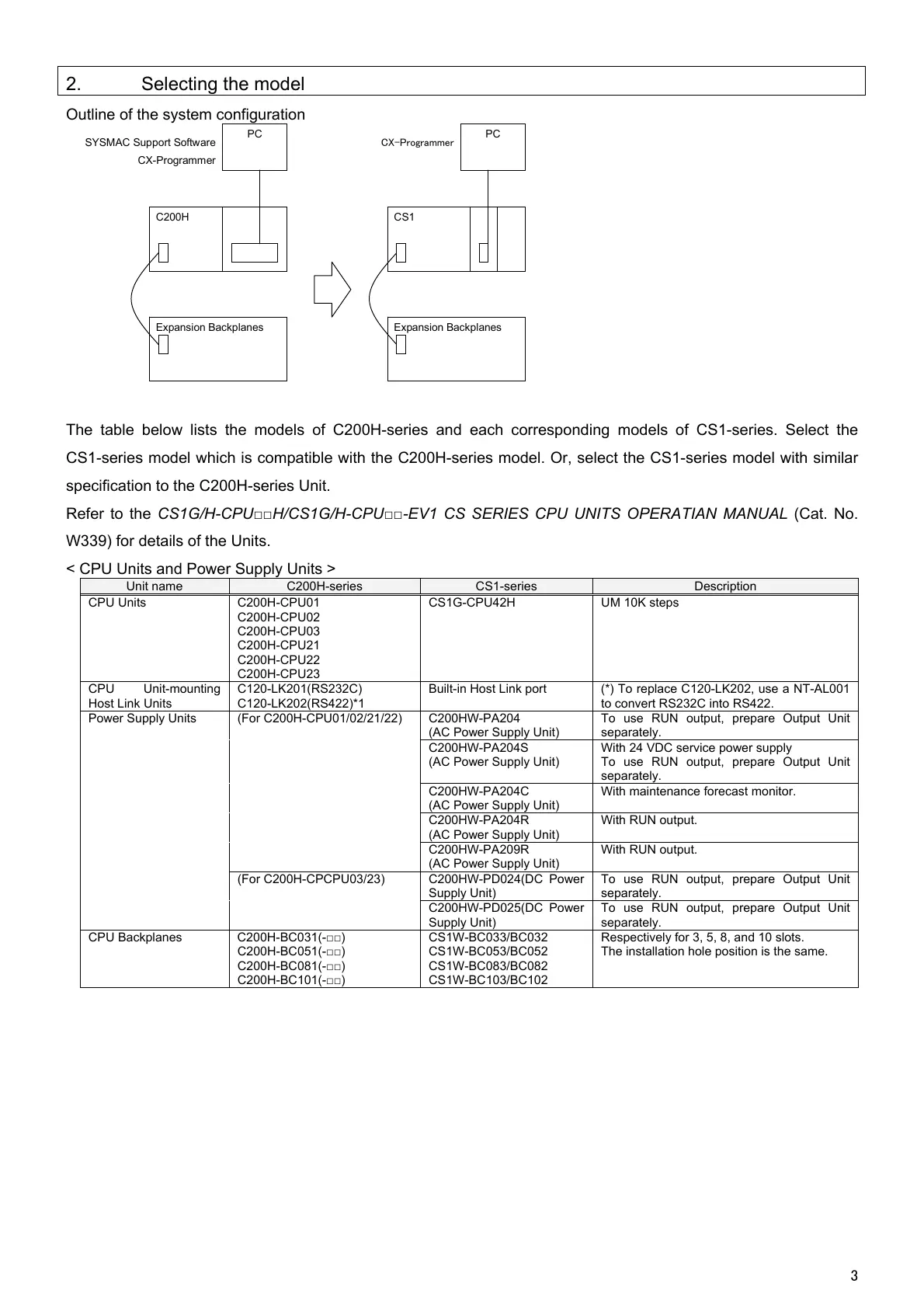

2. Selecting the model
Outline of the system configuration
C200H
PC
Expansion Backplanes
CS1
PC
Expansion Backplanes
SYSMAC Support Software
CX-Programmer
CX-Programmer
The table below lists the models of C200H-series and each corresponding models of CS1-series. Select the
CS1-series model which is compatible with the C200H-series model. Or, select the CS1-series model with similar
specification to the C200H-series Unit.
Refer to the CS1G/H-CPU□□H/CS1G/H-CPU□□-EV1 CS SERIES CPU UNITS OPERATIAN MANUAL (Cat. No.
W339) for details of the Units.
< CPU Units and Power Supply Units >
Unit name C200H-series CS1-series Description
CPU Units C200H-CPU01
C200H-CPU02
C200H-CPU03
C200H-CPU21
C200H-CPU22
C200H-CPU23
CS1G-CPU42H UM 10K steps
CPU Unit-mounting
Host Link Units
C120-LK201(RS232C)
C120-LK202(RS422)*1
Built-in Host Link port (*) To replace C120-LK202, use a NT-AL001
to convert RS232C into RS422.
Power Supply Units
(For C200H-CPU01/02/21/22) C200HW-PA204
(AC Power Supply Unit)
To use RUN output, prepare Output Unit
separately.
C200HW-PA204S
(AC Power Supply Unit)
With 24 VDC service power supply
To use RUN output, prepare Output Unit
separately.
C200HW-PA204C
(AC Power Supply Unit)
With maintenance forecast monitor.
C200HW-PA204R
(AC Power Supply Unit)
With RUN output.
C200HW-PA209R
(AC Power Supply Unit)
With RUN output.
(For C200H-CPCPU03/23) C200HW-PD024(DC Power
Supply Unit)
To use RUN output, prepare Output Unit
separately.
C200HW-PD025(DC Power
Supply Unit)
To use RUN output, prepare Output Unit
separately.
CPU Backplanes C200H-BC031(-□□)
C200H-BC051(-□□)
C200H-BC081(-□□)
C200H-BC101(-□□)
CS1W-BC033/BC032
CS1W-BC053/BC052
CS1W-BC083/BC082
CS1W-BC103/BC102
Respectively for 3, 5, 8, and 10 slots.
The installation hole position is the same.
To Next Page
