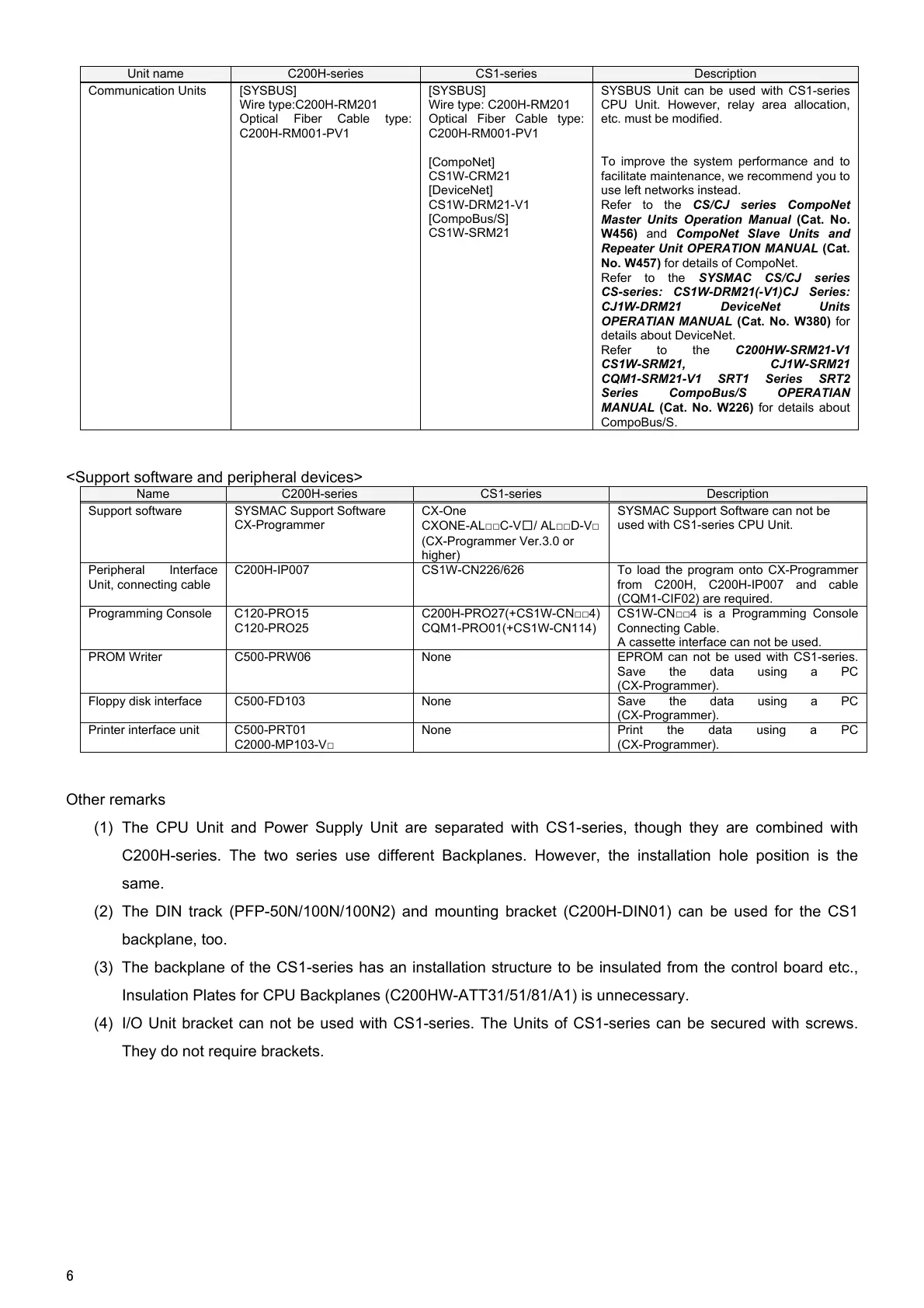

Unit name C200H-series CS1-series Description
Communication Units [SYSBUS]
Wire type:C200H-RM201
Optical Fiber Cable type:
C200H-RM001-PV1
[SYSBUS]
Wire type: C200H-RM201
Optical Fiber Cable type:
C200H-RM001-PV1
[CompoNet]
CS1W-CRM21
[DeviceNet]
CS1W-DRM21-V1
[CompoBus/S]
CS1W-SRM21
SYSBUS Unit can be used with CS1-series
CPU Unit. However, relay area allocation,
etc. must be modified.
To improve the system performance and to
facilitate maintenance, we recommend you to
use left networks instead.
Refer to the CS/CJ series CompoNet
Master Units Operation Manual (Cat. No.
W456) and CompoNet Slave Units and
Repeater Unit OPERATION MANUAL (Cat.
No. W457) for details of CompoNet.
Refer to the SYSMAC CS/CJ series
CS-series: CS1W-DRM21(-V1)CJ Series:
CJ1W-DRM21 DeviceNet Units
OPERATIAN MANUAL (Cat. No. W380) for
details about DeviceNet.
Refer to the C200HW-SRM21-V1
CS1W-SRM21, CJ1W-SRM21
CQM1-SRM21-V1 SRT1 Series SRT2
Series CompoBus/S OPERATIAN
MANUAL (Cat. No. W226) for details about
CompoBus/S.
<Support software and peripheral devices>
Name C200H-series CS1-series Description
Support software SYSMAC Support Software
CX-Programmer
CX-One
CXONE-AL□□C-V□/ AL□□D-V□
(CX-Programmer Ver.3.0 or
higher)
SYSMAC Support Software can not be
used with CS1-series CPU Unit.
Peripheral Interface
Unit, connecting cable
C200H-IP007 CS1W-CN226/626 To load the program onto CX-Programmer
from C200H, C200H-IP007 and cable
(CQM1-CIF02) are required.
Programming Console C120-PRO15
C120-PRO25
C200H-PRO27(+CS1W-CN□□4)
CQM1-PRO01(+CS1W-CN114)
CS1W-CN□□4 is a Programming Console
Connecting Cable.
A cassette interface can not be used.
PROM Writer C500-PRW06 None EPROM can not be used with CS1-series.
Save the data using a PC
(CX-Programmer).
Floppy disk interface C500-FD103 None Save the data using a PC
(CX-Programmer).
Printer interface unit C500-PRT01
C2000-MP103-V□
None Print the data using a PC
(CX-Programmer).
Other remarks
(1) The CPU Unit and Power Supply Unit are separated with CS1-series, though they are combined with
C200H-series. The two series use different Backplanes. However, the installation hole position is the
same.
(2) The DIN track (PFP-50N/100N/100N2) and mounting bracket (C200H-DIN01) can be used for the CS1
backplane, too.
(3) The backplane of the CS1-series has an installation structure to be insulated from the control board etc.,
Insulation Plates for CPU Backplanes (C200HW-ATT31/51/81/A1) is unnecessary.
(4) I/O Unit bracket can not be used with CS1-series. The Units of CS1-series can be secured with screws.
They do not require brackets.
󲨮
