Appendix BSpecifications
145

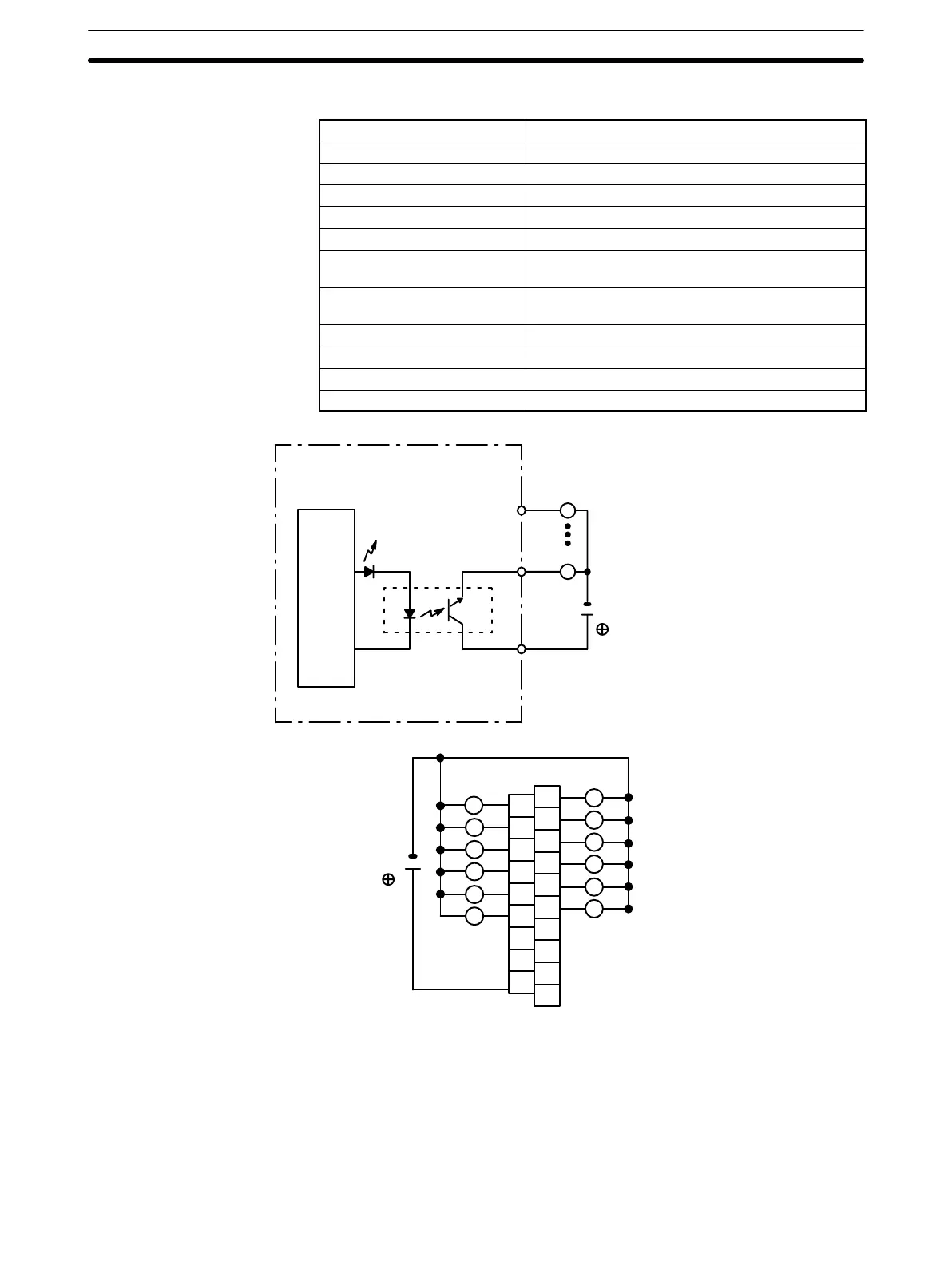

Transistor Output Unit C200H-OD217
Max. Switching Capacity 0.3 A 5 to 24 VDC
Min. Switching Capacity 10 mA 5 VDC
Leakage Current 0.1 mA max.
Residual Voltage 1.5 V max.
ON Response Time 1.5 ms max.
OFF Response Time 2 ms max.
No. of Circuits 1 (12 points/common) positive common (source
type)
Internal Current Consumption 10 mA 5 VDC max. 75 mA 26 VDC (8 points ON
simultaneously.)
Fuse Rating None
Power for External Supply N/A
Weight 300 g max.
Dimensions B-shape
Circuit Configuration
Internal
Circuit
Output indicator
OUT
OUT
COM
L
L
5 to
24 VDC
Terminal Connections
A0
A1
A2
A3
A4
A5
A6
A7
A8
1
3
5
7
9
11
COM
5 to 24 VDC
NC
B0
B1
B2
B3
B4
B5
B6
B7
B8
B9
NC
NC
NC
NC
NC
0
2
4
6
8
10
L
L
L
L
L
L
L
L
L
L
L
L
