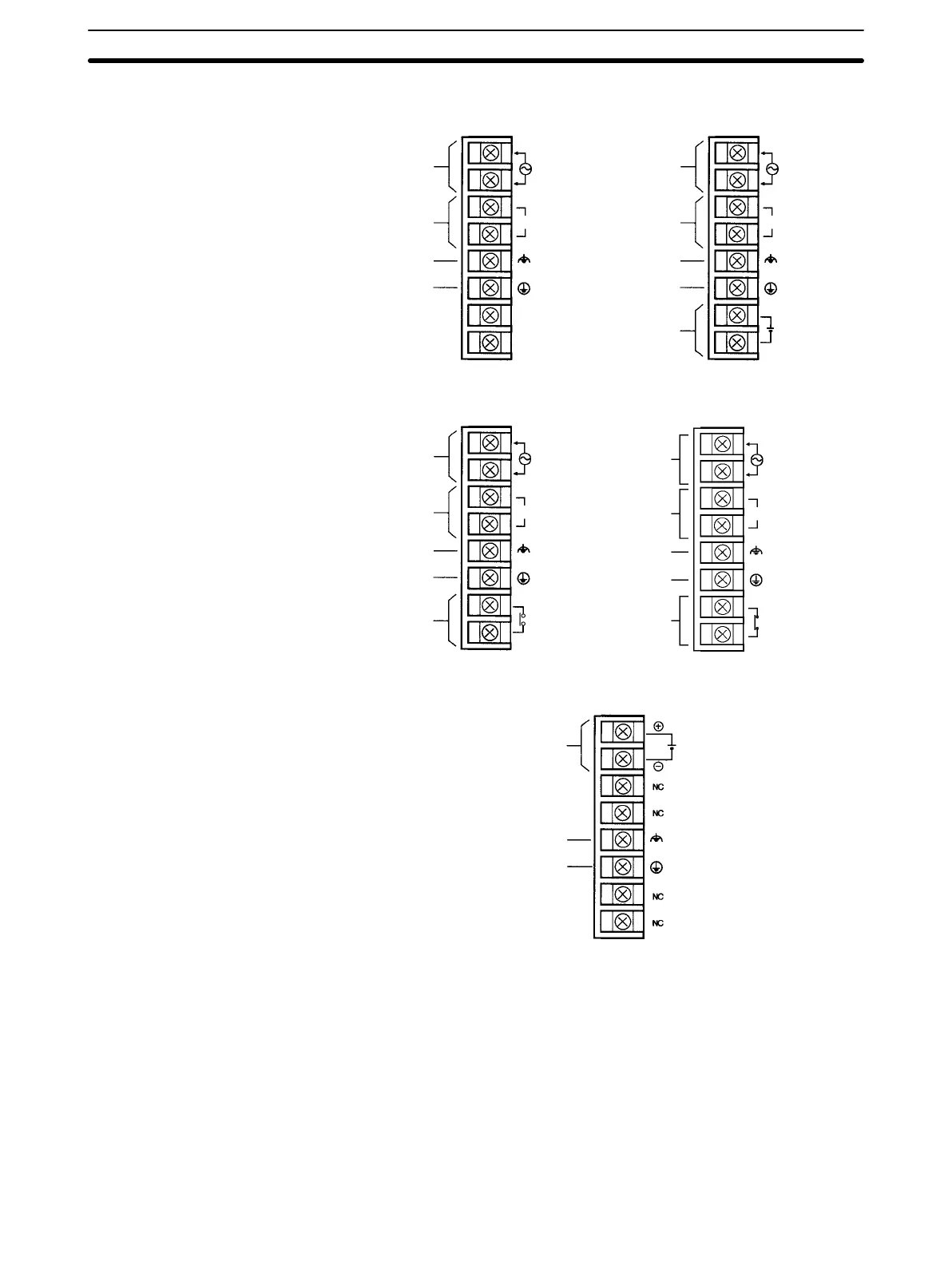

Terminal Connections
1. AC Input
2. Voltage selector
terminals
3. LG
4. GR
C200HW-PA204: AC Input C200HW-PA204S: AC Input
100 to 120 VAC/
200 to 240 VAC
L
2
/N
L
1
1. AC Input
3. LG
4. GR
5. 24 VDC output
100 to 120 VAC/
200 to 240 VAC
24 VDC 0.8 A
L
2
/N
L
1
2. Voltage selector
terminals
Input
100 to 120
Close
200 to 240
Open
Input
100 to 120
Close
200 to 240
Open
Output
1. AC Input
2. Voltage selector
terminals
3. LG
4. GR
7. RUN output
6. DC Input
3. LG
4. GR
C200HW-PA204R: AC Input
C200HW-PD024: DC Input
100 to 120 VAC/
200 to 240 VAC
RUN OUTPUT
250 VAC
24 VDC
2 A
24 VDC
L
2
/N
L
1
C200HW-PA209R: DC Input
1. AC Input
2. Voltage selector
terminals
3. LG
4. GR
7. RUN output
RUN OUTPUT
240 VAC
24 VDC
2 A Resistive
100 to 120 VAC/
200 to 240 VAC
L
2
/N
L
1
Input
Input
100 to 120
Close
200 to 240
Open
100 to 120
Close
200 to 240
Open
1, 2, 3... 1. AC Input (C200HW-PA20jj Only)
Supply either 100 to 120 VAC or 200 to 240 VAC to the AC input terminals. If
one power supply phase of the equipment is grounded, connect the
grounded phase side to the L
2
/N (or L
1
/N if so indicated) terminal.
2. Voltage Selector Terminals (C200HW-PA20jj Only)
Short these terminals with a metal short bar when 100 to 120 VAC is being
supplied to the AC input terminals.
3. LG
Ground the LG terminal to 100 Ω or less to increase resistance to noise and
protect against possible electrical shock.
Units
Section 2-2
