66
RUN Output These terminals turn ON whenever the CPU Unit is operating in RUN or MON-
ITOR Mode. Use these terminals under the following specifications These termi-
nals are available on the C200HW-PA204R/PA209R only.
Model C200HW-PA204R C200HW-PA209R
Contact
form
SPST-NO
Maximum
switching
capacity
250 VAC: 2 A for resistive loads
0.5 A for inductive loads
24VDC: 2 A
240 VAC: 2A for resistive loads
120 VAC: 0.5 A inductive loads
24 VDC: 2A
Crimp Terminals The terminals on the Power Supply Unit are M3.5, self-raising terminals with
screws.
Use crimp terminals for wiring. Do not connect bare stranded wires
directly to terminals. Tighten the terminal block screws to the torque of 0.8 N S m.

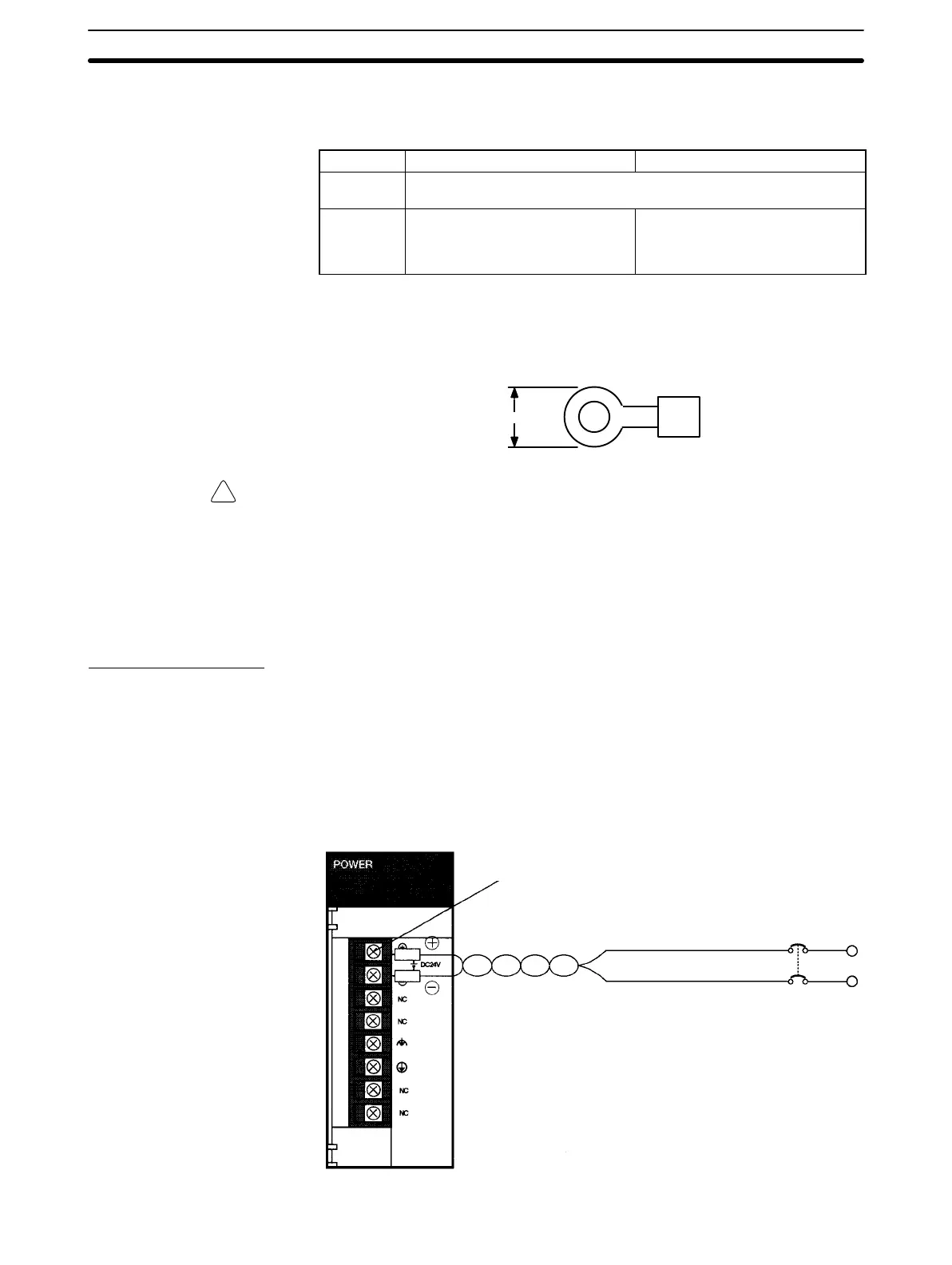

Use round-type crimp terminals (M3.5) having the dimensions shown below.
7 mm max.
Caution Tighten the terminal block screws to the torque of 0.8 N S m. The loose screws
may result in short-circuit, malfunction, or burning.
Note 1. Supply power to all of the Power Supply Units from the same source.
2. Be sure to check the setting of the voltage selector before supplying power.
3. Do not forget to remove the label from the top of the Power Supply Unit
before turn on the power supply.
DC Power Supplies
Note 1. Do not remove the protective label from the top of the Unit before wiring. This
label is to prevent wiring clippings and other foreign matter from entering the
Unit during wiring procedures.
2. After completing the wiring, remove the protective label from the top of the
Unit before starting operation. The Unit will overheat if operated with this
label in place.
C200HW-PD024
Power Supply Unit
Screw (3.5 mm head with
self-raising pressure plate)
DC power
source
Note To satisfy the EC Directives (Low-voltage
Directives), provide reinforced insulation or
double insulation for the 24-VDC power source
connected to the Power Supply Unit.
Wiring
Section 3-2
