Appendix BSpecifications
182

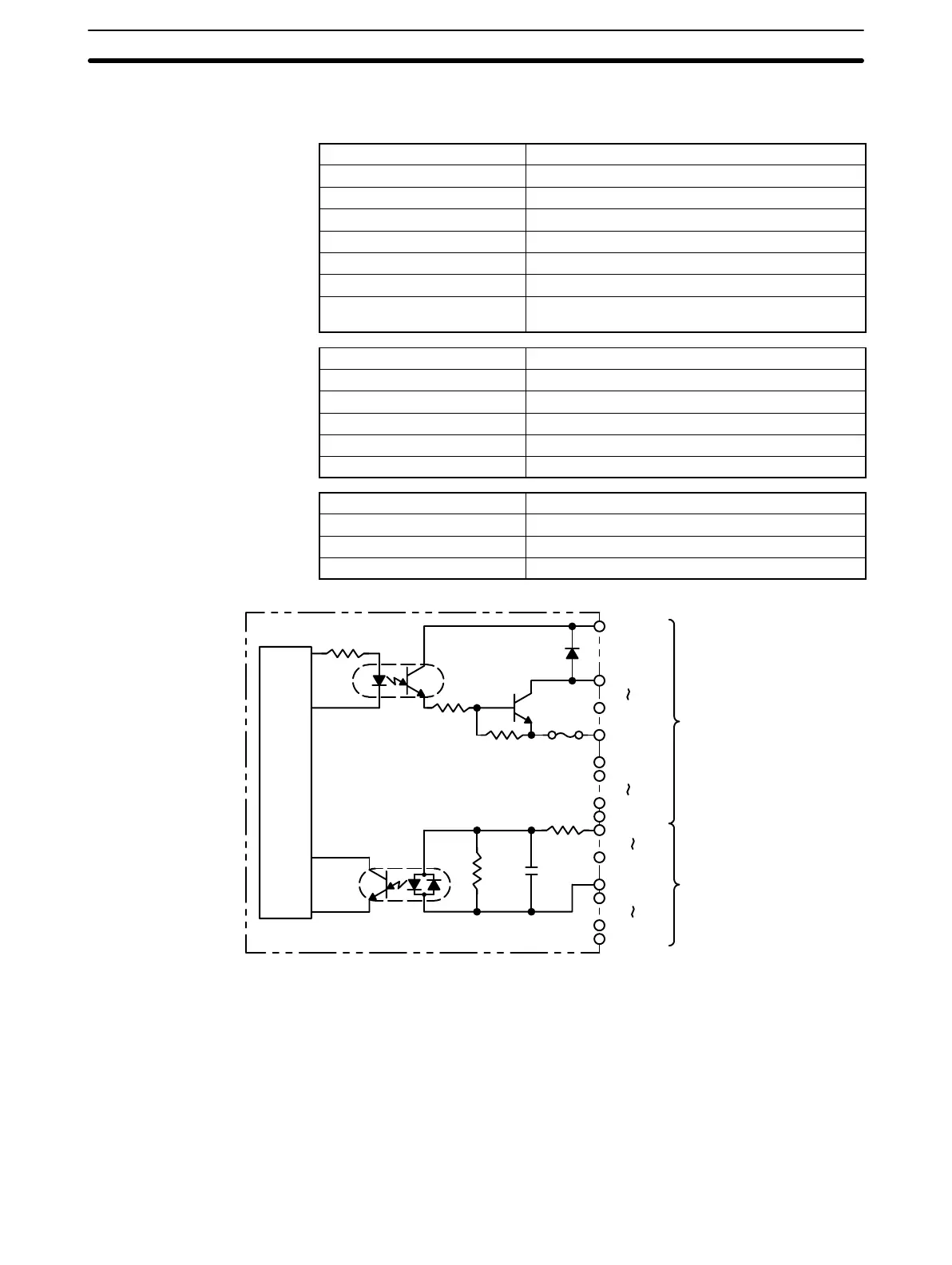

12 VDC Input/Transistor Output Unit C200H-MD115
(Used as 128-point Dynamic Input Unit)
Max. Switching Capacity 50 mA 12 VDC, 400 mA/common, 0.8 A/Unit
Min. Switching Capacity None
Leakage Current 0.1 mA max.
Residual Voltage 0.7 V max.
ON Response Time 0.2 ms max.
OFF Response Time 0.6 ms max.
Fuses 2 (1 fuse/common; fuses are not user-replacable.)
Power for External Supply
45 mA 5 to 24 VDC10% min.
(2.8 mA × number of ON outputs)
Rated Input Voltage 12 VDC
Operating Input Voltage 10.2 to 13.2 VDC
Input Impedance
2.7 kW
Input Current 4.1 mA (at 12 VDC)
ON Voltage 8.0 VDC min.
OFF Voltage 3.0 VDC max.
No. of Circuits 2 (dynamic, 64 points/circuit)
Internal Current Consumption 180 mA 5 VDC max.
Weight 300 g max.
Dimensions 130×34.5×100.5 (H×W×D, in millimeters)
Circuit Configuration
STB00
STB07
COM0
STB08
STB15
COM1
COM2
DATA08
DATA15
COM3
DATA00
DATA07
CN1
CN2
Internal
Circuit
Fuse
2.7 kW
12 VDC
12 VDC
1000 pF
620 W
Output Specifications
(Connector 1)
Input Specifications
(Connector 2)
General Specifications
To Next Page
