NQ3 HMI application…

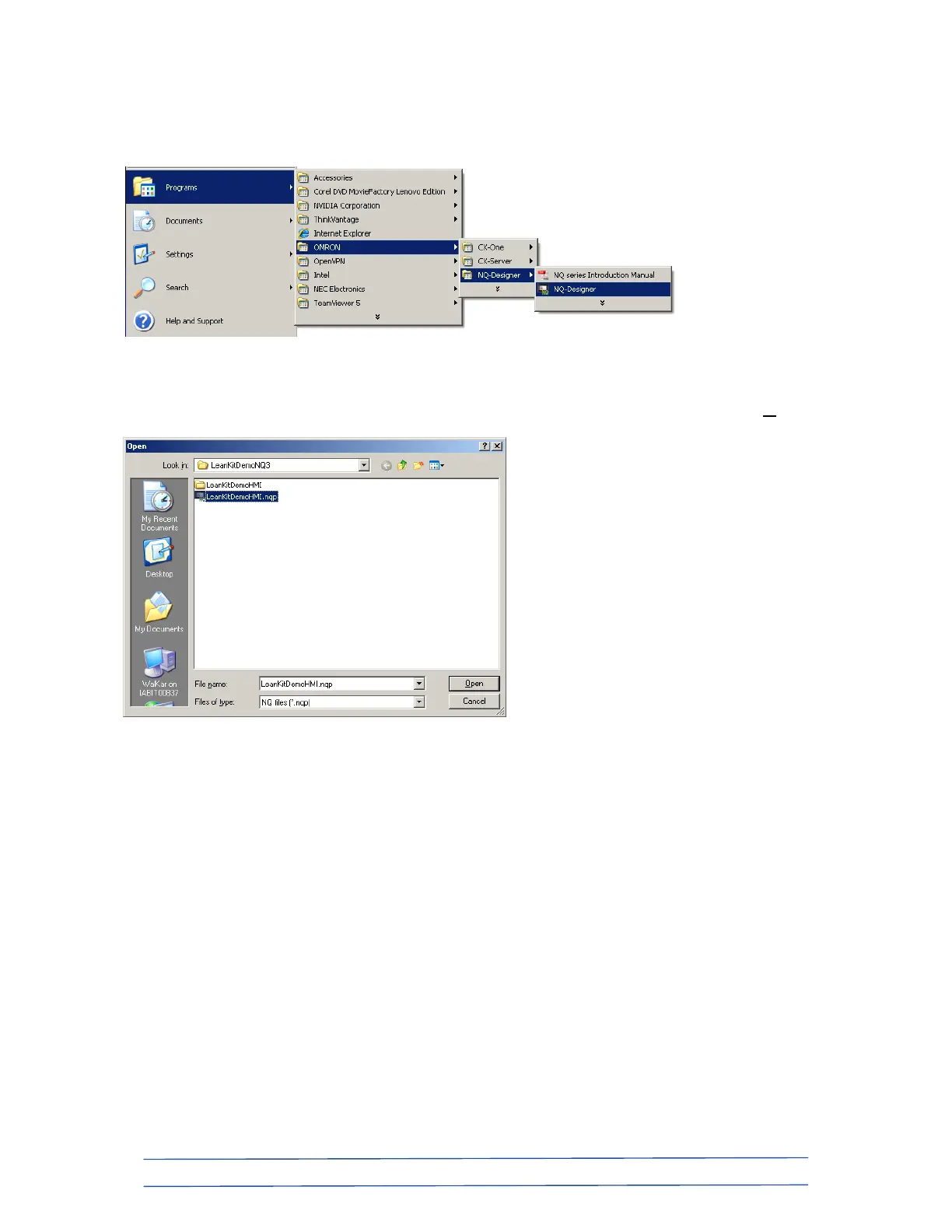

Open NQ-Designer from Start > Programs > OMRON > NQ-Designer…
Launch the application, then select Project > Open
Browse to the SOFTWARE folder on the Resource CD > NQ3 HMI DEMO >
LeanKitDemoNQ3 sub-folder and select the LeanKitDemoHMI.nqp file and click Open…
Plug the USB cable (CP1W-CN221) between your PC’s USB port and the NQ3 HMI’s
“SLAVE” port at the rear of the unit.
If this is the first time you have connected an NQ HMI, Windows will display “Found New
Hardware: HMI USB Device”
Select the “Install from a specific location” option, then browse to C:\Program
Files\OMRON\NQ-Designer\USBDrivers\ then click “Next” to install the driver. If the
Hardware Installation dialog is displayed, click Continue Anyway to complete the
installation.
Further details can be found on page 20 of the “V07-EN-01 NQ Getting Started Guide”
(see
Resource CD > TECHNICAL DOCUMENTATION > NQ-SERIES HMI)
From the Project menu, select Transfer then Download…
