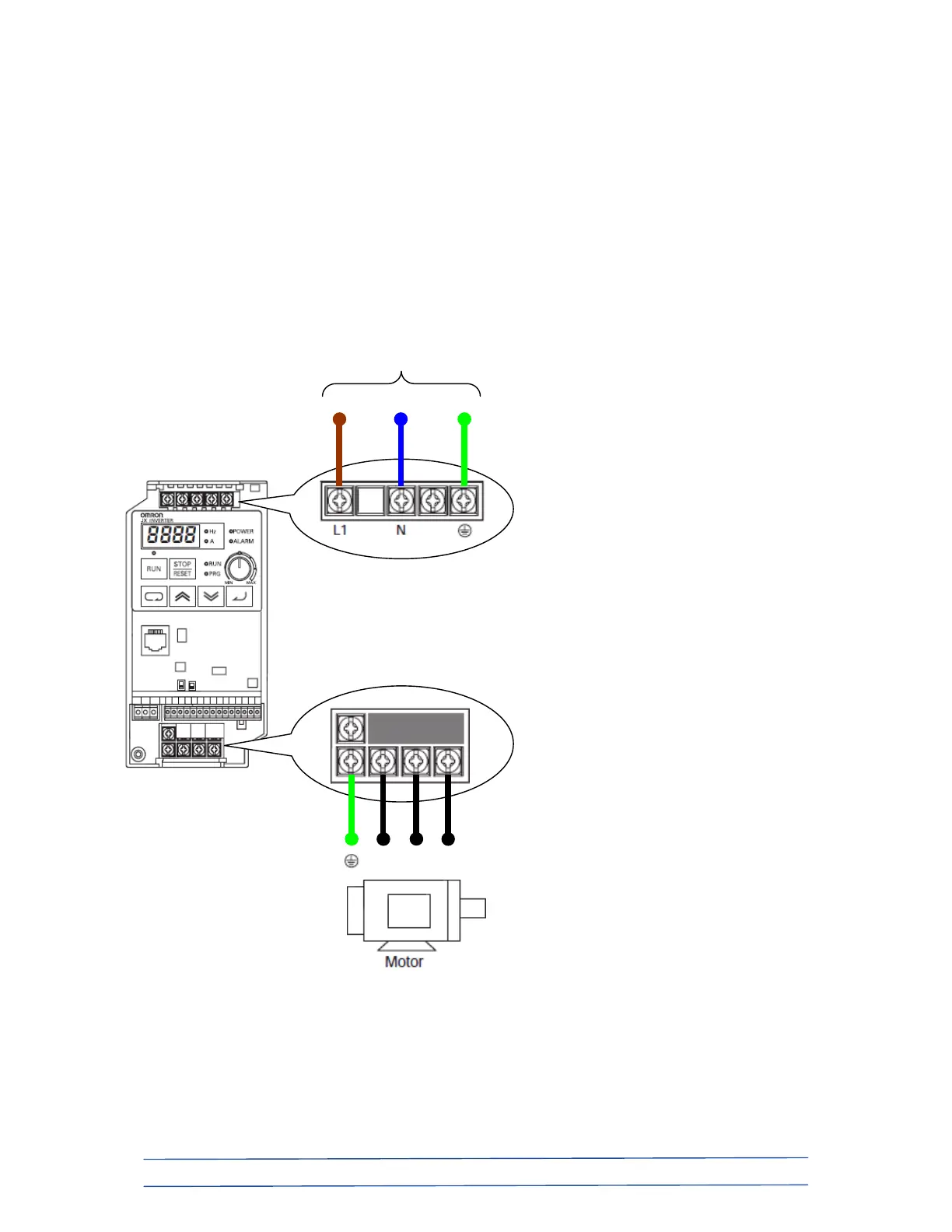

Wiring the JX inverter option:
The JX-series inverters feature built-in RFI filters, so no additional external filters are
required.
Before wiring the JX inverter, please refer to the “Precautions for Safe Use” section (pages
5-9) of the User’s Manual,ref: I558-E2-02
(see Resource CD > TECHNICAL DOCUMENTATION > JX
INVERTER)
It is not necessary to connect a motor to the JX inverter whilst testing ‘on the bench’.
However, if a motor is connected, please refer to the wiring instructions in section 2-2.
L N E
230VAC
MAINS
SUPPLY
U
W
To Next Page
