Unit Components Section 3-3
CJ-series Ethernet Units
CJ1W-ETN11 (10Base-T)
Note An IP address label is provided with the CJ1W-ETN11. Writing the IP address
and the subnet mask on this label and then attaching it to the front of the Unit
allows the IP address and subnet mask to be confirmed easily.
x16
0
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
UNIT
No.
RUN
ETN11
ERC SD RD
ERH TCP FTP TS
ETHERNET
0
1
2
3
4
5
6
7
8
9
A
B
C
E
F
NODE
No.
x16
1

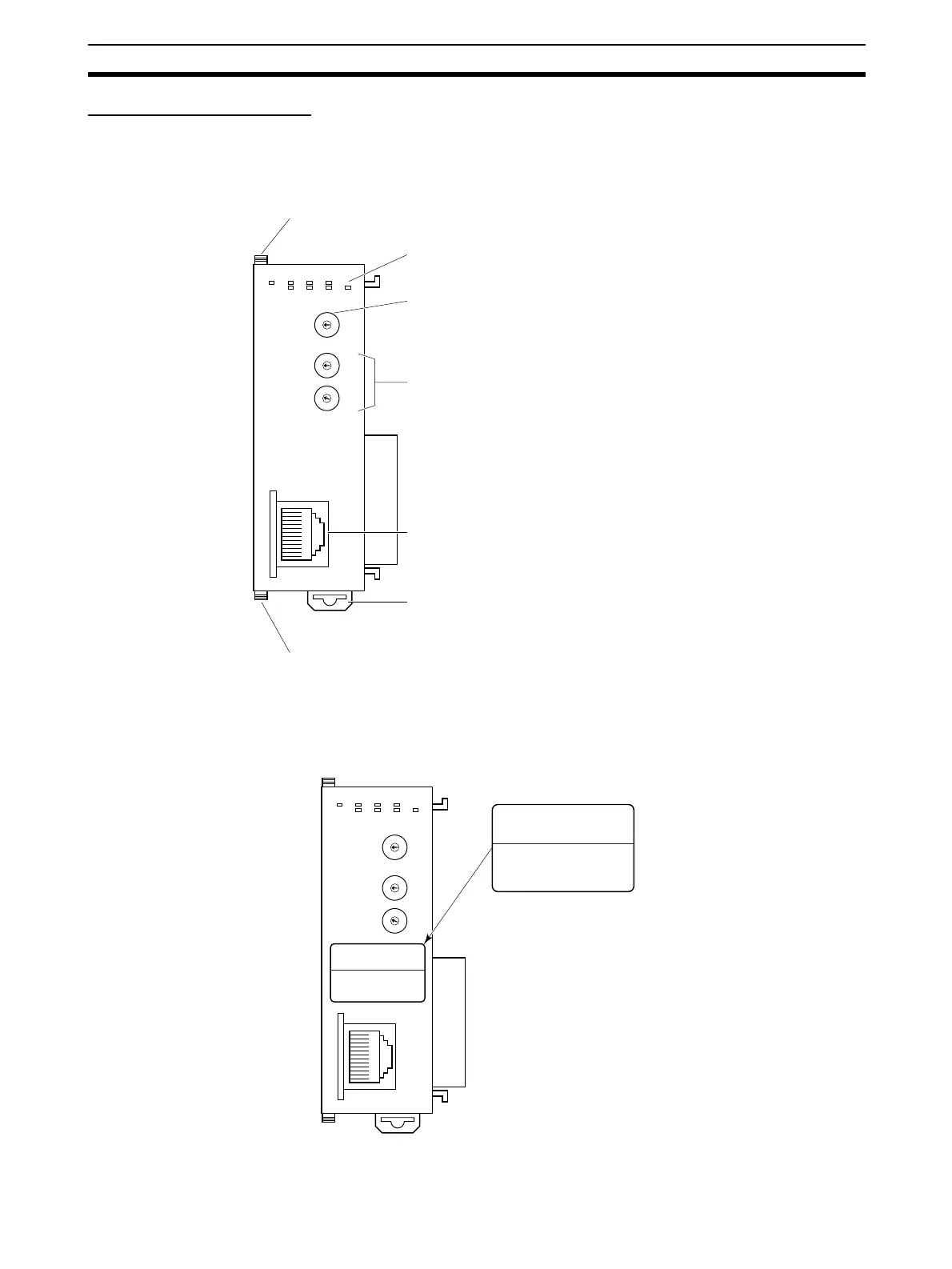

Front
Indicators
Display the operating status of the Unit.
Unit Number Switch
Used to set the Ethernet Unit’s unit number in one
digit hexadecimal.
Node Number Switches
Used to set the Ethernet Unit’s FINS node number
in two digits hexadecimal.
DIN Track Mounting Pin
Used when mounting the Unit to a DIN track.
Slider
Mount to other Units.
Slider
Mount to other Units.
Ethernet Connector
Used to connect the Ethernet twisted-pair cable.
x16
0
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
UNIT
No.
RUN
ETN11
ERC SD RD
ERH TCP FTP TS
ETHERNET
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
NODE
No.
x16
1
IP ADDRESS
SUBNET MASK
133.113. 0. 42
255.255.255.0
IP ADDRESS
SUBNET MASK
133.113. 0. 42
255.255.255.0
Example
Attach the label to the front
of the Ethernet Unit
between the node number
switches and the Ethernet
connector.
