H3CR-F
H3CR-F
23

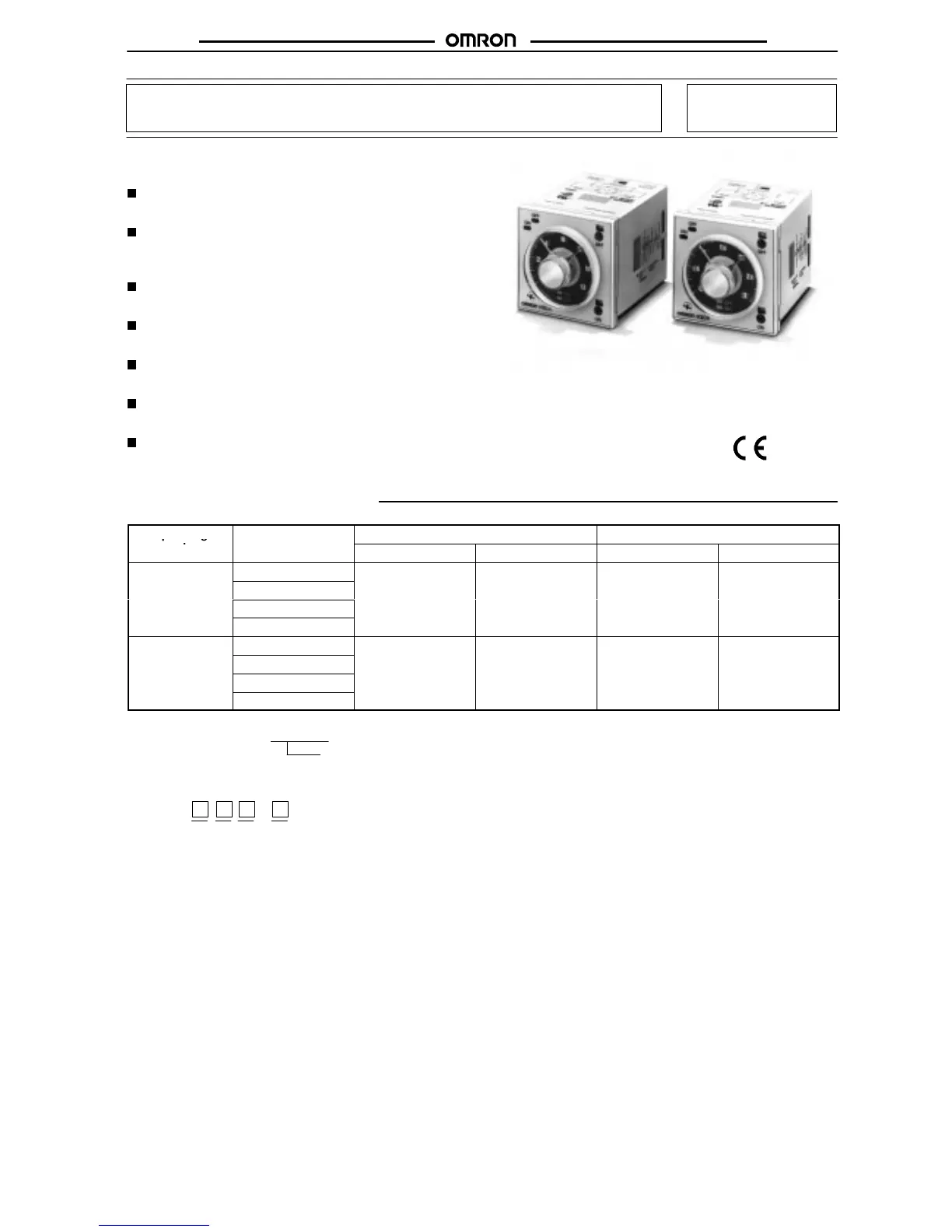

Solid-state Twin Timers H3CR-F
DIN 48 x 48-mm Twin Timers
Wide power supply ranges of 100 to 240 VAC and
48 to 125 VDC respectively.
Independent ON- and OFF-time settings. Further-
more, combinations of long ON- or OFF-time and
short OFF- or ON-time settings are possible.
Fourteen time ranges from 0.05 s to 30 h or from
1.2 s to 300 h depending on the model to be used.
Models with a flicker ON start or flicker OFF start
are available.
Easy sequence checks through instantaneous
outputs for a zero set value at any time range.
Length, when panel-mounted with a Socket, of 80
mm or less.
11-pin and 8-pin models are available.
RC
Ordering Information
Operating
modes
11-pin models 8-pin models 11-pin models 8-pin models
Flicker OFF start 100 to 240 VAC H3CR-F H3CR-F8 H3CR-F-300 H3CR-F8-300
24 VAC/DC
12 VDC
48 to 125 VDC
Flicker ON start 100 to 240 VAC H3CR-FN H3CR-F8N H3CR-FN-300 H3CR-F8N-300
24 VAC/DC
12 VDC
48 to 125 VDC
Note: Specify both the model number and supply voltage when ordering.
Example: H3CR-F 24 VAC/DC
Supply voltage
Model Number Legend:
H3CR - -
1 23 4
1. Classification
F: Twin timers
2. Configuration
None: 11-pin socket
8: 8-pin socket
3. Twin Timer Mode
None: Flicker OFF start
N: Flicker ON start
4. Time Range
None: 0.05 s to 30 h models
300: 1.2 s to 300 h models
