Omron H3CR Series - Timing Chart (H3 CR-H); H3 CR-H8 L, H3 CR-H8 RL, H3 CR-HRL Timing

H3CR-H
H3CR-H
41

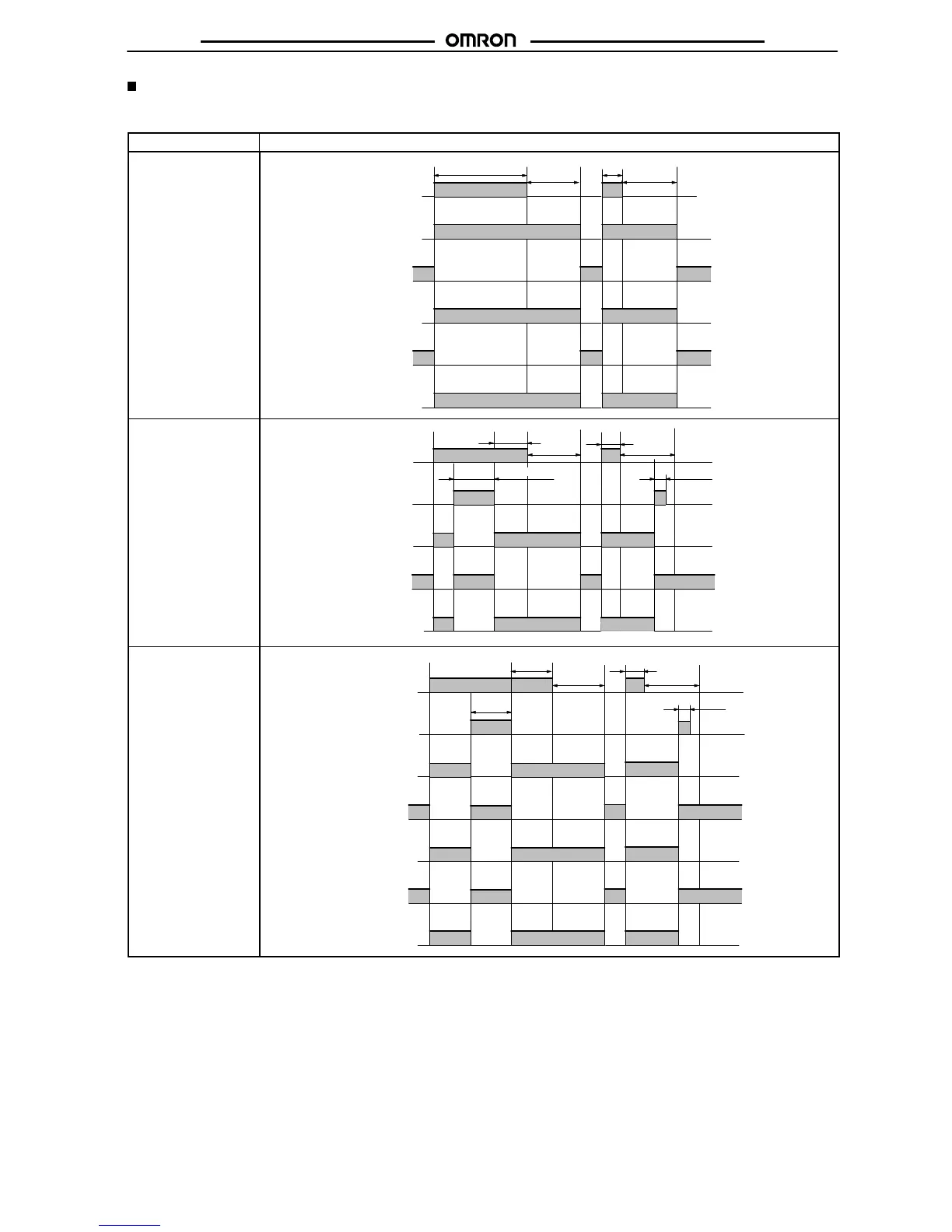

Timing Chart
t: Set time
Rt: Minimum power ON time (S-series: 0.1 s min.; M-series: 2 s min.)
Model
Timing chart
H3CR-H8L
Power
(see note)
ON
OFF
Output (1 – 3)
Output
indicator
Rt
t
Rt
t
Lit
Not lit
Output (1 – 4)
Output (8 – 6)
Output (8 – 5)
H3CR-H8RL
Lit
Not lit
ON
OFF
tt
Output
indicator
Output (8 – 6)
Power
(see note)
Reset input
ON (Short-circuited)
OFF (Open)
0.05 s min.
0.05 s min.
Rt
Rt
Output (8 – 5)
H3CR-HRL
Power
(see note)
ON
OFF
Output (1 – 3)
Output
indicator
Lit
Not lit
Output (1 – 4)
Output (11 – 9)
Output (11 – 8)
Reset input
Rt
t
Rt
t
0.05 s min.
0.05 s
min.
Note: If the power is turned ON until the set time is up, the timer will be retriggered.
